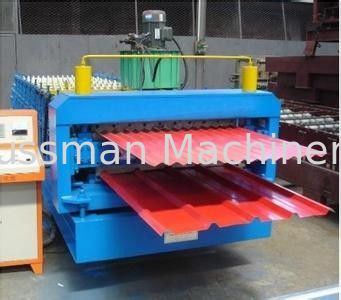

Roof / Wall Panel Double Layer Roll Forming Machine Forming Speed 12m Per Minute
  • Roof / Wall Panel Double Layer Roll Forming Machine Forming Speed 12m Per Minute
  • Roof / Wall Panel Double Layer Roll Forming Machine Forming Speed 12m Per Minute
  • Roof / Wall Panel Double Layer Roll Forming Machine Forming Speed 12m Per Minute

Roof / Wall Panel Double Layer Roll Forming Machine Forming Speed 12m Per Minute

Place of Origin China
Brand Name Sussman
Certification CE, ISO, SGS
Model Number SS-DL
Product Details
Steel Thickness:
0.3-2.5 Mm
Forming Speed:
Up To 12m/min
Roller Stations:
20 Stations
Roller Material:
45# Cold Steel Sheet
Shaft Diameter:
80m
Main Power:
7.5KW
High Light:

Slip Roll Forming Machine

,

Metal Roofing Roll Forming Machine

Payment & Shipping Terms
Minimum Order Quantity
1set
Price
negotiable
Packaging Details
Standard package with film, plastic and steel wire. (or customized)
Delivery Time
60 working days after accepting the advanced payment
Payment Terms
L/C, T/T
Supply Ability
10 sets/ month
Product Description

Roof and wall panel double layer roll forming machine









 Technical Parameter





1. Suitable Plate Material: thickness 0.3--2.5mm, Galvanized steel



2. Working Speed:Up to 12 meter/min



3. Forming machine: 20 stations



4. Material of Roller: Gcr15, Quench HRC58-62 Plated Chrome



5. Material of Shaft: 45# Advanced Steel (Diameter: 80mm), thermal refining



6. Driven system: Chain Driven 1.2 inches 20A double chain with longer shafts



7. Main Power with reducer: 7.5KW



8. Cutting: Hydraulic Cutting Cr12mov



9. Material of Cutting Knife: Cr12Mov, Quench HRC58-62



10. Hydraulic Station Power: 5.5KW



11. The whole machine is controlled by industry computer-PLC.



12 PLC--Panasonic, Japan English and Chinese Language



13. Touch Screen--Panasonic Japan



14. Encoder--Omron, Japan



15. Electric parts--Schneider



16. Outline of main about 4000mm*1350mmm*1200mm



17. Weight : about 12 tons









 Main Components







Commodity & Description



Quantity



5T manual uncoiler

1 set



Leveing  guiding

1 set



Servo feeding device

1 set



Main roll forming machine

1 set



Hydraulic station

1 set



Cutting device

1 set



Finished products tabel

1 set



PLC control system

1set



Out table

2 sets



Spare parts

1 set





Working Flow of Roll Forming Machine





Uncoiling—Feeding&Leveling--Roll forming—Cutting—Products collecting





Roof / Wall Panel Double Layer Roll Forming Machine Forming Speed 12m Per Minute 0









 Main Profile of Product
