Fully Electric Double Layer Automatic Roll Forming Equipment Chain Drive High Speed

Fully Electric Automatic Double Layer Roll Forming Machine Chain Drive High Speed



Technical Parameter


1. Suitable Plate Material: thickness 0.3-0.8mm, Galvanized steel S235JR

2. Working Speed: 8-12meters / min

3. Forming machine: 18 stations

4. Material of Roller: Gcr15, Quench HRC58-62 Plated Chrome

5. Material of Shaft: 45# Advanced Steel (Diameter: 76mm), thermal refining

6. Driven system: Chain Driven 1.2 inches 20A double chain with longer shafts

7. Main Power with reducer: 7.5KW

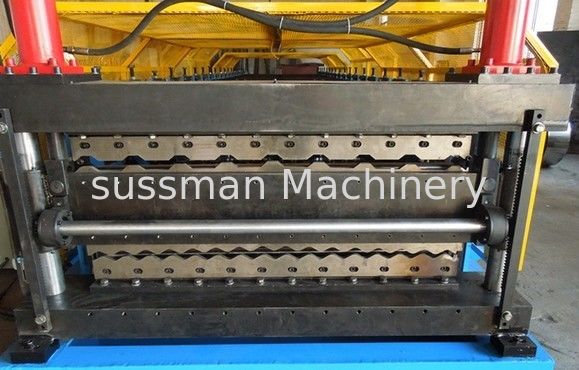

8. Cutting: Hydraulic Cutting Cr12mov

9. Material of Cutting Knife: Cr12Mov, Quench HRC58-62

10. Hydraulic Station Power: 5.5KW

11. The whole machine is controlled by industry computer-PLC.

12 PLC--Panasonic, Japan English and Chinese Language

13. Touch Screen--Panasonic Japan

14. Encoder--Omron, Japan

15. Electric parts--Schneider

16. Outline of main about 4000mm*1350mmm*1200mm

17. Weight : about 12 tons




Main Components



Working Flow of Roll Forming Machine


Uncoiling—Feeding&Leveling--Roll forming—Cutting—Products collecting







Profile of product









Photo gallery
