Aluminium Shutter Door Roll Forming Machine With Servo Following Cutting

China Aluminium Shutter Door Roll Forming Machine With Servo Following Cutting supplier
Aluminium Shutter Door Roll Forming Machine With Servo Following Cutting supplier Aluminium Shutter Door Roll Forming Machine With Servo Following Cutting supplier Aluminium Shutter Door Roll Forming Machine With Servo Following Cutting supplier

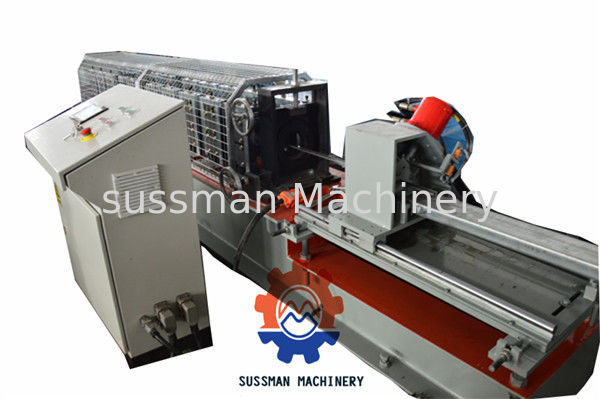

Large Image :  Aluminium Shutter Door Roll Forming Machine With Servo Following Cutting

Product Details:

Place of Origin: CHINA
Brand Name: Sussman
Certification: CO
Model Number: SM-CR

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: USD 15000-20000 PER SET
Packaging Details: 5500*800*1200
Delivery Time: 60 days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 10 SETS PER MONTH
Contact Now
Detailed Product Description
Raw Material: PPGI Or Aluminium Thickness: 0.9-1.0mm
Condition: New Weight: 3 Tons
Dimension(l*w*h): 5500*800*1200 Color: Customized
Control System: PLC Warranty: 2 Years
Roller Material: Grc15



Aluminium Shutter Door Roll Forming Machine With Servo Following Cutting



Specification:

  Items Specifications Remarks
Material of coil Material Thickness 0.5-0.9mm color painted sheets
  Profile width About 20mm
  Profile height About 10mm
Forming system Rolling Speed 10m/min
Roller Stations 14 stations
Roller Material

45# Steel with quenching 60mm shaft




Maim Motor Power 5.5kw
Hydraulic cutting Power 4kw

Cutting

system

Material Of Cutting CR12 with quench treatment
Hardness HRC58-62
Tolerance +-1.5mm
Electrical control system Electric Source

380V, 50HZ,3 phase

Also can satisfy Customer’s require


Control System PLC Panasonic
  Servo motor 1.5 kw Yaskawa Brand
  Weight About 2.5 tons
  Way Of Drive 1 inch single chain
  Size of machine Length 3000mm* Width 500mm* Height 800m
  Safety cover Mesh safety cover



The finished products



Aluminium Shutter Door Roll Forming Machine With Servo Following Cutting



The loading of the machine

Aluminium Shutter Door Roll Forming Machine With Servo Following Cutting

The installation of the machine

Aluminium Shutter Door Roll Forming Machine With Servo Following Cutting

The maintaining &service of the machine

Aluminium Shutter Door Roll Forming Machine With Servo Following Cutting

The lubrication of the machine

Aluminium Shutter Door Roll Forming Machine With Servo Following Cutting

Company Introduction

Sussman Machinery (wuxi) Co., Ltd. is a comprehensive enterprise integrating production, sales and services. We are mainly engaged in providing machineries and equipment. Owing to a professional teamwork, we are experienced in manufacturing, import and export, customers' design, installation and test, technical solution and after-sale services. We have shipped out our machines to more than 80 countries, and keep good business relationships with a large amount of worthy customers, contributing to our great business records and reputation.
