Shutter Door Roll Forming Machine
>
|
|
| Place of Origin | China |
| Brand Name | Sussman |
| Certification | SGS.ISO,CE |
| Model Number | SM-OP |
Speed 30m/Min 0.4-0.8mm Thickness 40mm Shaft Steel Octagon Pipe Roll Forming Machine
Machine Technical Data
|
Feeding materials |
0.4-0.8mm, galvanized steel,G250-350Mpa(Customized) |
|
|
Machine frame type |
open style individual structure with welded platform by beam |
|
|
Forming station |
24 stations roller forming |
|
|
Main shaft material |
45# Round steel, heat treatment,HRC40-45,Φ70mm |
|
|
Rollers material |
Gcr15,ball bearing steel, quenching HRC 52-55C°, chrome coating 0.05mm |
|
|
Bearing |
Chinese famous brand/HRB brand |
|
|
Transducer |
China |
|
|
Operation system |
Operation cabinet + Emergency remote control unit |
PLC Siemens brand. |
|
Encode |
Omron, Japan brand |
|
|
Other electricals |
Schneider and Omron brand. |
|
|
Line of dimension(L-W-H) |
Approx 9500×900x1300mm |
|
|
Brand |
Chinese famous brand |
|
|
Transmission |
Gearbox |
|
Production Line Machine List
|
Serial No. |
Commodity & Description |
Quantity |
|
1 |
3T automatic uncoiler |
1 set |
|
2 |
feeding guiding |
1 set |
|
3 |
Main roll forming machine |
1 set |
|
4 |
Output table |
1 set |
|
5 |
Main drive gear box |
1 set |
|
6 |
Fly saw cutting |
1 set |
|
7 |
Controlling system (including cabinet) |
1 set |
|
8 |
Water cooling system |
1 set |
|
9 |
Safety cover |
2 sets |
Standard Profile
Normally we can make size 40mm,60mm,70mm shaft. Also we customized the size as the client's requirement.
Normally one roll forming machine produce one size of octagonal tube.
If you want to produce more sizes in one machine, we recommend cassettes to achieve profile change, they share one machine frame, save more space.
Application
Octagon Pipe Shutter Door Roll forming Machine Applicable to commercial facade, garage, shopping malls, hospitals, factories and mines enterprises and so on public place or residence. Especially it was large and inconvenient installation ground body place convenient and quick open..

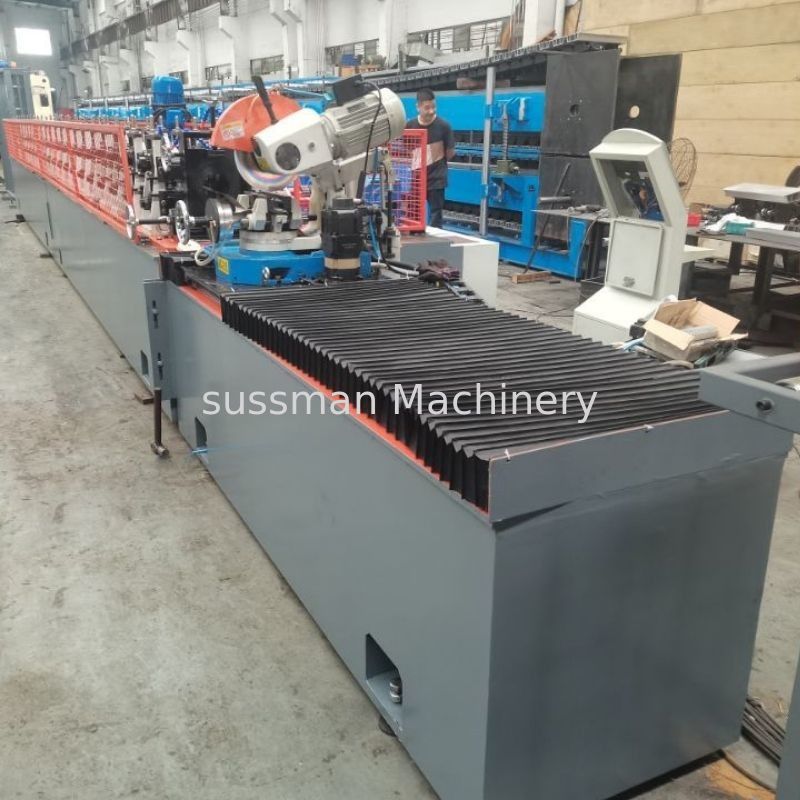

Octagonal pipe machine photo
1. We can produce the special machine,send your drawing to us,we can design for you.
2. We provide a one year warranty and lifelong technical support, we can send our technicians to you to give you on-site training.
3.The training period would be for no more than one week with the customer paying for the visa, return ticket, food, accommodations.
