Shutter Door Roll Forming Machine
>
|
|
| Place of Origin | China |
| Brand Name | Sussman |
| Certification | SGS.ISO,CE |
| Model Number | SM-OP |

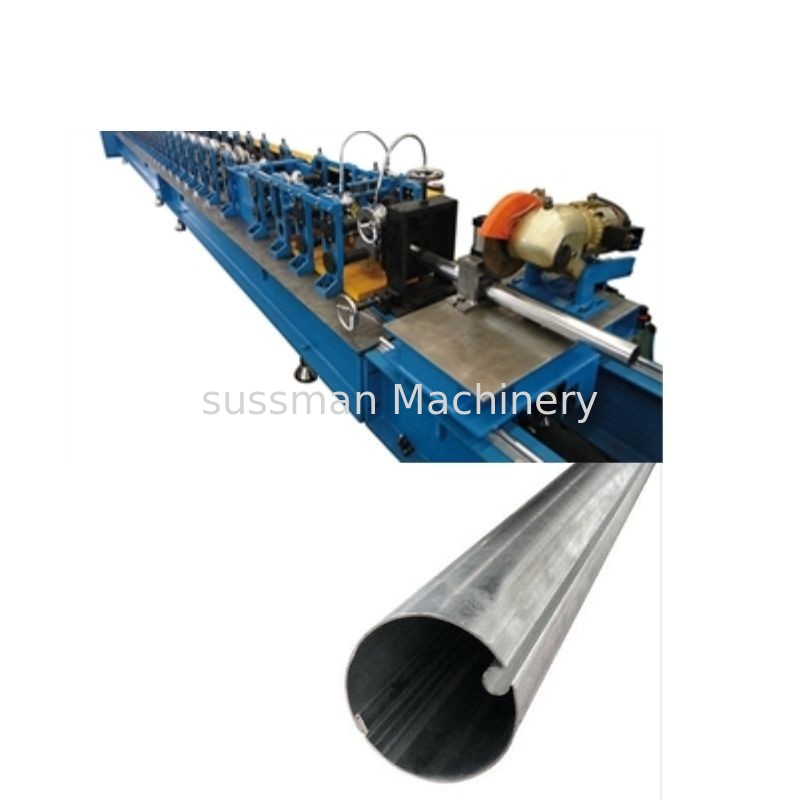

60 Mm 70 Mm 78 Mm Roller Blind Tube Roll Forming Machine Steel Roller Tube For Awnings
Machine Technical Data
|
Feeding materials |
0.8-1.2mm, galvanized steel |
|
|
Machine frame type |
Cast iron structure |
|
|
Forming station |
24 stations roller |
|
|
Main shaft material |
45# Round steel, heat treatment,HRC40-45,Φ70mm |
|
|
Rollers material |
Gcr15,ball bearing steel, quenching HRC 52-55C°, chrome coating 0.05mm |
|
|
Bearing |
Chinese famous brand/HRB brand |
|
|
Transducer |
YASKAWA ,Japan |
|
|
Operation system |
Operation cabinet + Emergency remote control unit |
PLC Siemens brand. |
|
Encode |
Omron, Japan brand |
|
|
Other electricals |
Schneider and Omron brand. |
|
|
Line of dimension(L-W-H) |
Approx 9500×900x1300mm |
|
|
Brand |
Chinese famous brand |
|
|
Transmission |
Gearbox |
|
Production Line Machine List
|
Serial No. |
Commodity & Description |
Quantity |
|
1 |
3T hydraulic uncoiler |
1 set |
|
2 |
Feeding |
1 set |
|
3 |
Main roll forming machine |
1 set |
|
4 |
Output table |
1 set |
|
5 |
Main drive gear box |
1 set |
|
6 |
Fly saw cutting |
1 set |
|
7 |
Controlling system (including cabinet) |
1 set |
|
8 |
Water cooling system |
1 set |
|
9 |
Safety cover |
2 sets |
Standard Profile
Steel roller tube for awnings is the most popular tube used for awnings or Roller blind. It’s strong galvanized or Zincalume finished without rusted even used in outdoor environment.
You can have different options for the roller tubes, such as galvanized tubes, 50mm tube, 60mm tube, 63mm tube, 65mm tube, 70mm tube, 78mm tube, 80mm tube, 85mm tube etc. And many sizes can make in one machine, to change the size by cassette
Application
Roller tube used for retractable arm awnings, window drop arm awning, window vertical roller awnings, french awnings, roof awnings, retractable PVC roof pergola, adjustable louvered pergola and zip roller blind.
Octagonal pipe machine photo
Compmany information
0ur factory is more than 5,000m2 and 80 workers,which has 10 machining processing center, assembly area and display area.
Our main production is all kinds of steel profile roll forming machine, specially light steel frame, C Z M Purlin, racking upright, box beam, step beam, cable tray, shutter door, door frame, highway guardrail W beam, strut channel, scaffolding board and roof panel all of different forming machines ect.
The most advantage technology and most professional design software COPRA are introduced to customize international standards of equipment for customers. Equipment produced by our company has the advanced drive system and the whole design. The hydraulic system and motor of the device were integrated within one host, saving equipment space taking, improving convenience and safety in using equipment. All the equipment electrical components were adopted from internationally renowned brand to ensure the good working performance.
1. We can produce the special machine,send your drawing to us,we can design for you.
2. We provide a one year warranty and lifelong technical support, we can send our technicians to you to give you on-site training.
3.The training period would be for no more than one week with the customer paying for the visa, return ticket, food, accommodations.
