Product Details:
|
Materials: | 1.5-2.0mm Steel | Material Of Main Shaft: | 45# High Quality Steel |
---|---|---|---|
Work Speed: | 3-10m/min | Material Of Rollers: | GCr15 Steel, Precision-machined, High Frequency Quenching HRC58-62 |
Electronic Control: | PLC Control | Dimension: | About 8000mmX800mmX800mm |
Forming Steps: | About 18 Steps | Cutting: | Hydraulic Cutting, 4kw; Quenching HRC58-62 |
Weight: | About 5T | Drive System: | Chain Drive |
High Light: | Glazed Tile Roll Forming Machine,Cold Roll Forming Equipment |
Automatic Door Frame Roll Forming Machine With Plc Control , 1 Year Warranty Period
Technical Parameter
1,Materials to form door frame: According to the customers’ requirement1.5-2.0mm steel
2,Work speed: 3-10m/min
3,Forming steps: About 20 steps
4,Material of rollers: GCr15 steel, precision-machined, high frequency quenching HRC58-62,
5,Material of main shaft : 45# high quality steel
6,Chains’ material: 45# steel, high frequency quenching, circular pitch: 38.1; number of teeth: 13
7,Main motor power: 7.5KW
8,Cutting : Hydraulic cutting, 4kw; quenching HRC58-62, with 3 cut dies ( you must change the bushing blocks when you want to manufacture another door frame.
9,Electronic control: PLC control
Flow Chart
De*coiler—→level device—→main forming machine—→straightening—→hydraulic Punching —→hydraulic cutting—→ run out table
Machine Components
Name | Quantity (set) |
De-coiler | 1 |
Level device | 1 |
Main forming machine | 1 |
Hydraulic cutting machine | 1 |
Cutting blades | 3 |
Straightening | 1 |
PLC Control panel | 1 |
Run out table | 2 |

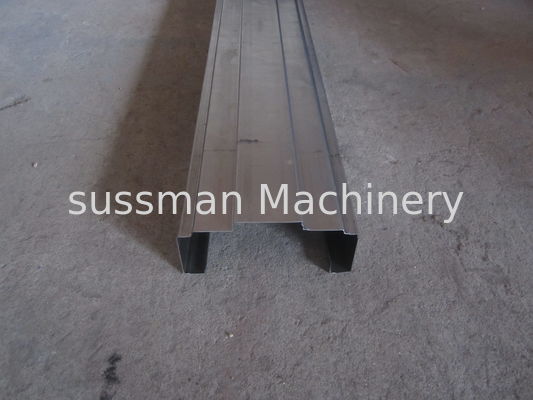

Profile Drawing
