16 Roller Stations Round 0.3mm Ridge Cap Roll Former

Place of Origin	Wuxi,China
Brand Name	Sussman
Certification	ISO 9001 SGS
Model Number	Tile capping 01

Product Details

Material:

0.3—0.8mm PI, PPGI

Rolling Speed:

5-10m/min

Roller Stations:

16stations

Roller Material:

45# Steel, Coated With Chrome

Tolerance:

+-1.5mm

Highlight:

0.3mm Ridge Cap Roll Former

10m/min Ridge Cap Roll Former

PPGI Ridge Cap Roll Former

Payment & Shipping Terms

Minimum Order Quantity

Price

USD 16500-USD23500 per set

Packaging Details

Naked packing

Delivery Time

30 days

Payment Terms

T/T

Supply Ability

5 Sets per month

Product Description

16 Roller Stations Round Ridge Cap Roll Forming Machine Thickness 0.3-0.8mm Galvanized Coil

Technical Data

	Items	Specifications
Material of coil	Material Thickness	0.3—0.8mm
Material of coil	Un Coiler	3 tons manual
Forming system	Rolling Speed	5-10m/min
	Roller Stations	16stations
	Roller material	45# steel, coated with chrome
	Maim Motor Power	5.5kw
	Hydraulic cutting Power	4kw
Cutting system	Material Of Cutting	CR12 with quench treatment
	Hardness	HRC58-62
	Tolerance	+-1.5mm
Electrical control system	Electric Source	380V, 50HZ,3 phase Also can satisfy customer’s require
Electrical control system	Control System	PLC with touch screen
	Way Of Drive	1.2 inch single chain
Packing information	Color of the machine	blue

Working flow

Uncoiling—Feedingwithguide—Roll forming—cutting—Products collecting

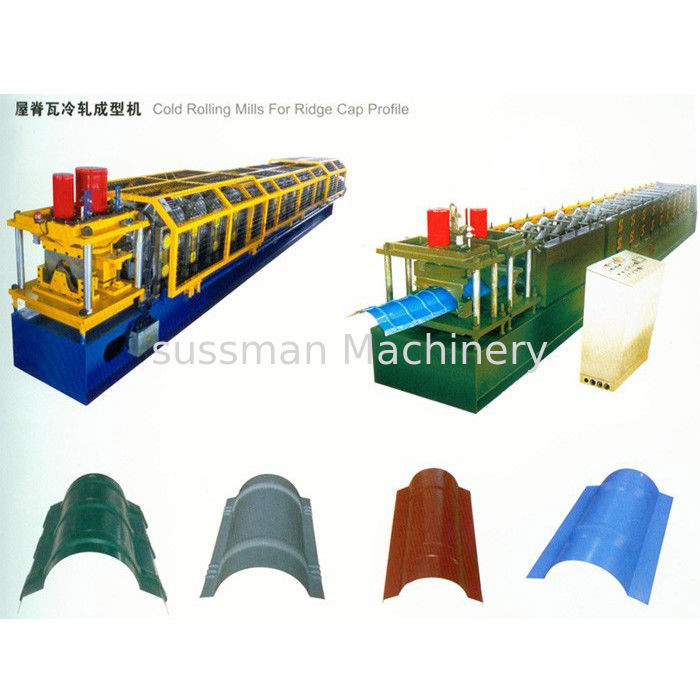

16 Roller Stations Round 0.3mm Ridge Cap Roll Former 0
