Discontinuous 0.3mm Galvanized Steel Pu Sandwich Panel Line

Discontinuous 0.3mm Galvanized Steel Pu Sandwich Panel Line
Discontinuous 0.3mm Galvanized Steel Pu Sandwich Panel Line Discontinuous 0.3mm Galvanized Steel Pu Sandwich Panel Line Discontinuous 0.3mm Galvanized Steel Pu Sandwich Panel Line Discontinuous 0.3mm Galvanized Steel Pu Sandwich Panel Line

Large Image :  Discontinuous 0.3mm Galvanized Steel Pu Sandwich Panel Line

Product Details:

Place of Origin: Wuxi Jiangsu China
Brand Name: SUSSMAN
Certification: CE
Model Number: SM-PUGD

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: negotiable
Packaging Details: Standard packing
Delivery Time: 90-120 days after deposit
Payment Terms: T/T L/C, Western Union
Supply Ability: 10 sets per months
Detailed Product Description
Hot Air Motor: 18.5Kw Hot Air Heater: 200Kw
Thickness: 0.3-0.5mm Length: 12m(customized)
Width Of Sheet: 1250mm Width Adjustable Range: 400-600 Mm
Panel Thickness:: 40MM PU Material: Polyurethane A/B
High Light:

0.3mm pu sandwich panel line

,

Discontinuous pu sandwich panel line

,

0.3mm pu sandwich panel machine

0.3-0.5 Mm Galvanized Steel 400-600 Mm Discontinuous Garage Door Pu Sandwich Panel Production Line

The production line is used to producing the sandwich panel that both the top and lower layer are color steel plate (or galvanized sheet,aluminum sheet and the core material is PU foam .



Mainly composed with metal roll forming machine, PU foaming system ,finished sandwich panel table and controlling system of fill line .


Technical Parameter
1. 1 Uncoiler
a)  raw material: color steel sheet, aluminum sheet
b)  motor power: 3Kw
c)  hydraulic power: 2.2Kw
d)  innder diameter of coil: 500mm- 600mm
d)  outer diameter of coil: 1200mm
e)  coil weight: 10T
f)  sheet thickness: 0.4-0.8mm
g) sheet width: 1250mm
f)  uncoil speed: 1.5-12m/min
g) hydraulic pressure: 6.3Mpa

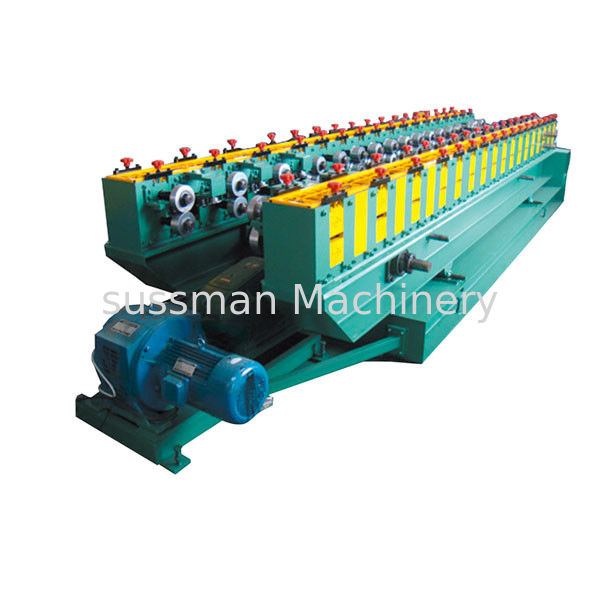

1.2 Roll Forming Machine

a) sheet thickness: 0.4-0.8mm
b) roll forming speed: 1.5-12m/min
c) roller material: 40Cr, surface chrome coated, thickness 0.05mm
d) The way of width adjust: straight track, silk pole, reducer motor adjustable
e) width adjustable range: 600-1250mm
f) Motow power: up panel 4Kw, down panel 7.5Kw
g) structrue: arm type adjustable, support roller in the middle
h) shaft diameter: 50mm



 Main Components


     No.

                                            Machine Name



      1.

  Roll forming machine for upper and down panel

       4 Sets

      2.

  Un-coiler 5 TONS

       2 sets

     3

  embossing machine

       1 set

     4

  PU Foaming machine

       1 set

     5.

  heating tables

       1 set

     6.

  Collecting table

       1 set



Machine Photo


Discontinuous 0.3mm Galvanized Steel Pu Sandwich Panel Line 0



Discontinuous 0.3mm Galvanized Steel Pu Sandwich Panel Line 1

Discontinuous 0.3mm Galvanized Steel Pu Sandwich Panel Line 2

Discontinuous 0.3mm Galvanized Steel Pu Sandwich Panel Line 3
