PU Sandwich Panel Production Line
>
|
| Place of Origin | Wuxi Jiangsu China |
| Brand Name | SUSSMAN |
| Certification | CE |
| Model Number | SM-PUGD |
50 Mm Panel Thickness Pu Density 35-50 Kg/ M3 Finger Protection Garage Door Sandwich Panel Production Line
Technical Parameter
1.1 5T Uncoiler
a) raw material: color steel sheet
b) motor power: 3Kw
c) hydraulic power: 2.2Kw
d) innder diameter of coil: 500mm- 600mm
d) outer diameter of coil: 1200mm
e) coil weight: 10T
f) sheet thickness: 0.3-0.8mm
g) sheet width: 1250mm
f) uncoil speed: 12m/min
g) hydraulic pressure: 6.3Mpa
1.2 Roll Forming Machine
a) sheet thickness: 0.3-0.8mm
b) roll forming speed: 8-12m/min
c) roller material: 40Cr, surface chrome coated, thickness 0.05mm
d) The way of width adjust: straight track, silk pole, reducer motor adjustable
e) width adjustable range: 400-600mm
f) Motow power: up panel 4Kw, down panel 7.5Kw
g) structrue: arm type adjustable, support roller in the middle
h) shaft diameter: 75mm
Main Components
|
Machine Name |
Quantity |
|
Roll forming machine for upper and down panel |
2 Sets |
|
Un-coiler 5 T |
2 sets |
|
embossing machine |
1 set |
|
PU Foaming machine |
1 set |
|
heating tables |
1 set |
|
Collecting table |
1 set |

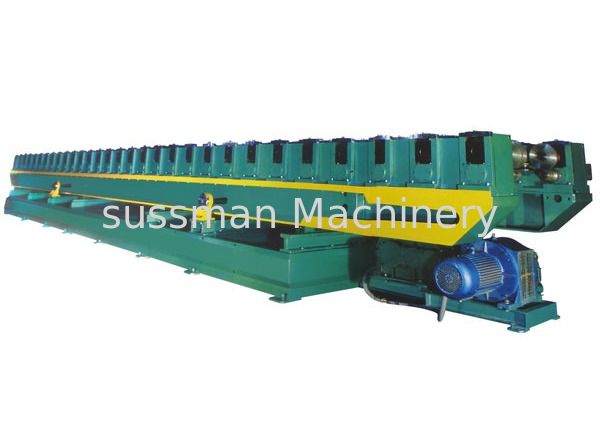

Machine Photo
