PU Sandwich Panel Production Line
>
|
| Place of Origin | Wuxi Jiangsu China |
| Brand Name | SUSSMAN |
| Certification | CE |
| Model Number | SM-PUGD |
50 Mm Panel Thickness Pu Density 35-50 Kg/ M3 Continuous Finger Protection Garage Door Production Line
This machine line consists of 5T Decoiler, Embossing machine, roll forming machine 1 set,High pressure injection machine Garage door foaming composite machine 1 set, after cutting device 1 set, PLC control system , Hydraulic System and Air Pressure system, Auto stacker 1 set
(1). Production type: Automatic continuous making machine
(2). Material spec: thickness 0.3-0.5mm, ≤G250 color steel sheet, aluminum.
(3). Production width: (400~600) mm can be adjustable
(4). Material of compound panel: double layer are metal sheet
(5).Main motor power: ≥20.5kw
(6).Main power: 100kw, pressure: 380V, 50HZ
(7). Structure of forming machine: up layer forming machine and down layer forming machine will run with composite machine together to become sandwich.
(8). Structure of composite machine: Adopt left and right two sides rubber conveyer belt orientation.
(9). Foaming system: Adopt Auto Continuum froth, the foaming is limited.
(10). Foaming Thickness: 40mm
(11). Working speed: 3-5m/min (According to thickness 40mm)
(12). Control System: PLC (DELTA, import from Taiwan)
(13). Length precision: length permissible errors ±1.5 mm
(14). Machine Weight: about 30000kg
Garage door PU sandwich panel production line:
Decoiler---Embossing----roll forming ---cutting after forming---out products
Main Components
| 1 | 5tons automatic decoiler | 4kw | 2 set |
| 2 | Embossing and film device | 5.5 | 2 set |
| 3 | Automatic feeding and flatten device(N.C) | 1.5 | 1set |
| 4 | 4 column hydraulic punching machine (200tons) | 7.5kw | 1set |
| 5 | Rectangle module (use for punching door shape) | NO | 1 set |
| 6 | Upper roll forming machine | 4.0 | 1 set |
| 7 | Marking machine (N.C) | 5.0 | 1 set |
| 8 | Downer roll forming machine | 5.5 | 1 set |
| 9 | Two-floor steel structure platform | NO | 1 set |
| 10 | Viaduct with conveyor belt | NO | 1 set |
| 11 | Other conveyor belt | NO | 1 set |
| 12 | PLC system | NO | 1 set |

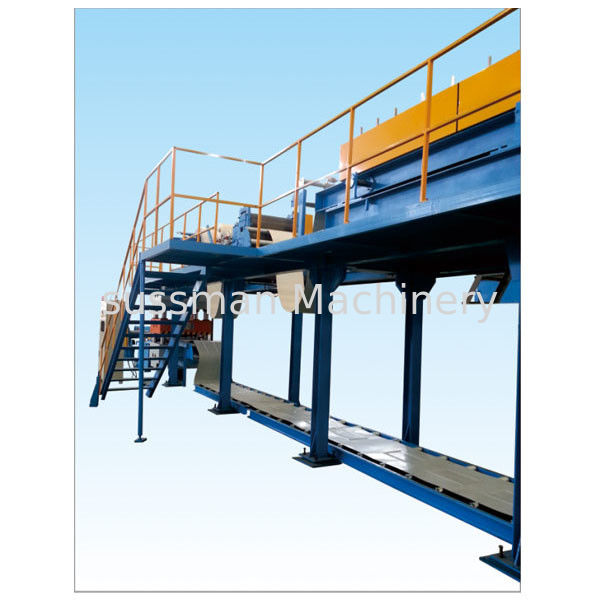

Machine Photo
