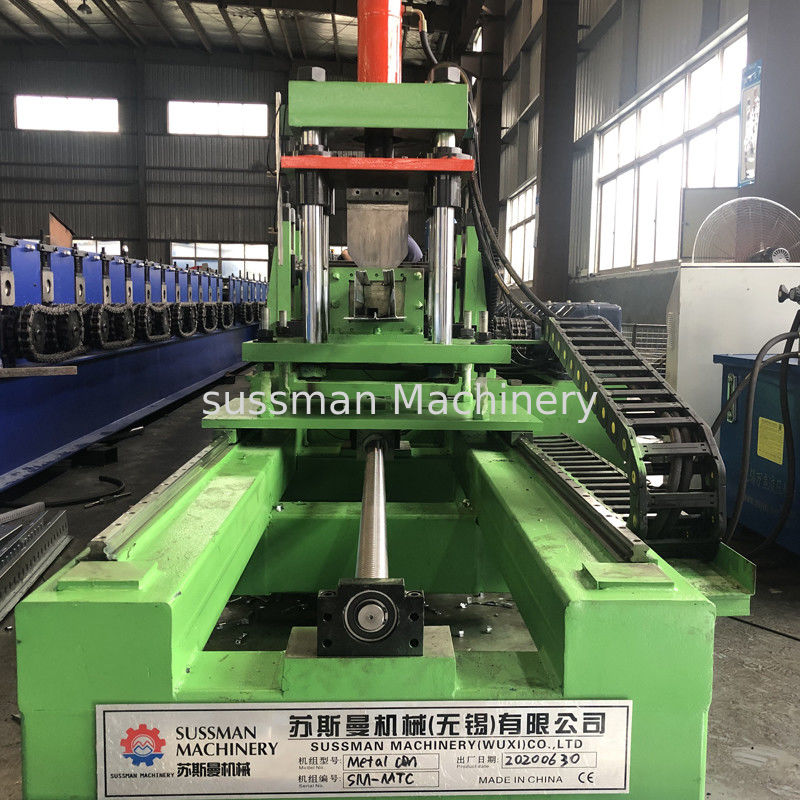

7.5KW 10M/Min Beam Roll Forming Machine With Quenching 60mm Shaft

7.5KW 10M/Min Beam Roll Forming Machine With Quenching 60mm Shaft
7.5KW 10M/Min Beam Roll Forming Machine With Quenching 60mm Shaft
7.5KW 10M/Min Beam Roll Forming Machine With Quenching 60mm Shaft 7.5KW 10M/Min Beam Roll Forming Machine With Quenching 60mm Shaft 7.5KW 10M/Min Beam Roll Forming Machine With Quenching 60mm Shaft 7.5KW 10M/Min Beam Roll Forming Machine With Quenching 60mm Shaft 7.5KW 10M/Min Beam Roll Forming Machine With Quenching 60mm Shaft 7.5KW 10M/Min Beam Roll Forming Machine With Quenching 60mm Shaft

Large Image :  7.5KW 10M/Min Beam Roll Forming Machine With Quenching 60mm Shaft

Product Details:
Place of Origin: China
Brand Name: Sussman
Certification: CE, SGS, ISO
Model Number: SM-DF-0475
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: USD 35,000- USD55,000 per set
Packaging Details: standard film
Delivery Time: 30-90 days
Supply Ability: 5 sets per month

7.5KW 10M/Min Beam Roll Forming Machine With Quenching 60mm Shaft

Description
Material Thickness: 1.5mm Galvanized Rolling Speed: 10 M/min
Roller Stations: About 24 Stations About 24 Stations: 45# Steel With Quenching 60mm Shaft
Maim Motor Power: 7.5 Kw Hydraulic Cutting Power: 4 Kw
Hardness: HRC58-62 Tolerance: +-1.5mm
High Light:

7.5KW beam roll forming machine

,

10M/Min beam roll forming machine

,

7.5KW beam forming equipment

7.5KW South African Deck Floor Metal Concretion Beam Roll Forming Machine



Technological process



Uncoiling—Feeding&Leveling ---Roll forming—Cutting—Products collecting

7.5KW 10M/Min Beam Roll Forming Machine With Quenching 60mm Shaft 0



Technical Data

Item NO



Description

UnitType RF-DF
1 Steel Thickness mm 0.8-1.5mm
2 Forming Speed m/min 0-12m/min
3 Roller stands stand 28-30
4 Roller Material

Gcr15 chromed

HRC55-60

5 Shaft diameter   Ф90
6 Main Motor Power kw 11*2kw
7 Hydraulic cutting Power kw 5.5
8 Hydraulic pressure Mpa 12
9 Power Supply   220V, 60HZ,3 phase
10 Tolerance mm 1.5
11 Material of cutting   Cr12mov
12 Control system   PLC with touch screen
13 DRIVE system Chain 1.6 inches





Details of each composition



De-coiler:

5 ton passive decoiler



Cutting way



(1) Cutting motion: The main machine stops and then cut automatically. After cutting, the main machine re-starts automatically.

(2) Material of blade: CR12 with heat treatment

(3) Length measuring: Automatically

(4) Tolerance of length: + 1.5mm

(5) In order to get the perfect profiles, we recommend the post hydraulic cutting by changing the cutting moulds. It is easy to operate.





Control Box



(1) Voltage, Frequency, Phase: 220V, 60 Hz, 3Phase (this is can depend on customer request)

(2) Automatic length measurement:

(3) Automatic quantity measurement

(4) Computer used to control length & quantity. Machine will automatically cut to length and stop when required quantity is achieved

(5) Length inaccuracy can be amended easily.

(6). Control panel: Button-type switch and touch screen

(7) Unit of length: millimeter (switched on the control panel)





Out table

It adopts welded steel and supported roller to transmit the products.

Size: 2000*1000*1000mm, 2 pieces





Details:



7.5KW 10M/Min Beam Roll Forming Machine With Quenching 60mm Shaft 17.5KW 10M/Min Beam Roll Forming Machine With Quenching 60mm Shaft 27.5KW 10M/Min Beam Roll Forming Machine With Quenching 60mm Shaft 37.5KW 10M/Min Beam Roll Forming Machine With Quenching 60mm Shaft 4

7.5KW 10M/Min Beam Roll Forming Machine With Quenching 60mm Shaft 5
