Automatically Hydraulic Stainless Steel U Shaped Groove Roll Forming Machine

Place of Origin Wuxi, China
Brand Name Sussman
Certification CE, SGS, ISO
Model Number RF-ST
Product Details
Material Thickness:
0.6mm Stainless Steel
Rolling Speed:
About 30m/min Line Speed
Roller Stations:
About 18 Stations
Main Motor Power:
5.5 Kw Motor
Hydraulic Station Power:
4 Kw
Servo Motor:
1.8kw Delta
Control System:
PLC Control System
Way Of Drive:
1 Inch Single Chain
High Light:

groove roll forming machine

,

U shaped Roll Forming Machine

,

Hydraulic Steel Forming Machine

Payment & Shipping Terms
Minimum Order Quantity
1 set
Price
USD24500-USD26500 Per set
Packaging Details
Film and steel
Delivery Time
60 days after deposit
Supply Ability
10 sets/month
Product Description

Automatically Hydraulic Stainless Steel U-shaped Groove Roll Forming Machine



Technical Parameter





  Items Specifications
Material of coil Material Thickness 0.6mm Stainless Steel
Forming system Rolling Speed About 30m/min line speed
  Roller Stations About 18 stations
  Roller Material

Gcr15 Steel with quenching 60mm shaft



  Maim Motor Power 5.5 kw motor
  hydraulic station Power 4 kw

Cutting

system

Material Of Cutting CR12 with quench treatment
  Hardness HRC58-62
  Tolerance +-1.5mm
  Servo motor 1.8kw Delta
Electrical control system Electric Source

380V, 50HZ,3 phase

Also can satisfy Customer’s require

  Control System PLC control system
  Weight About 3.5 tons
  Way Of Drive 1 inch single chain
  Size of machine Length 5500mm* Width 600mm* Height 1000m





Flow Chart


Decoiler—Rollforming—HydraulicServo followingCutting—Products collecting



Automatically Hydraulic Stainless Steel U Shaped Groove Roll Forming Machine 0



Machine List

Machine list 3 ton passive de-coiler 1 set
  Main roll forming machine 1 set
  PLC Control box 1 unit
  Hydraulic station 1 unit
  Out table 2 units
  Hydraulic Servo following cutting 1 unit
  Safety cover 1 unit




Profile Drawing

 Automatically Hydraulic Stainless Steel U Shaped Groove Roll Forming Machine 1

Automatically Hydraulic Stainless Steel U Shaped Groove Roll Forming Machine 2

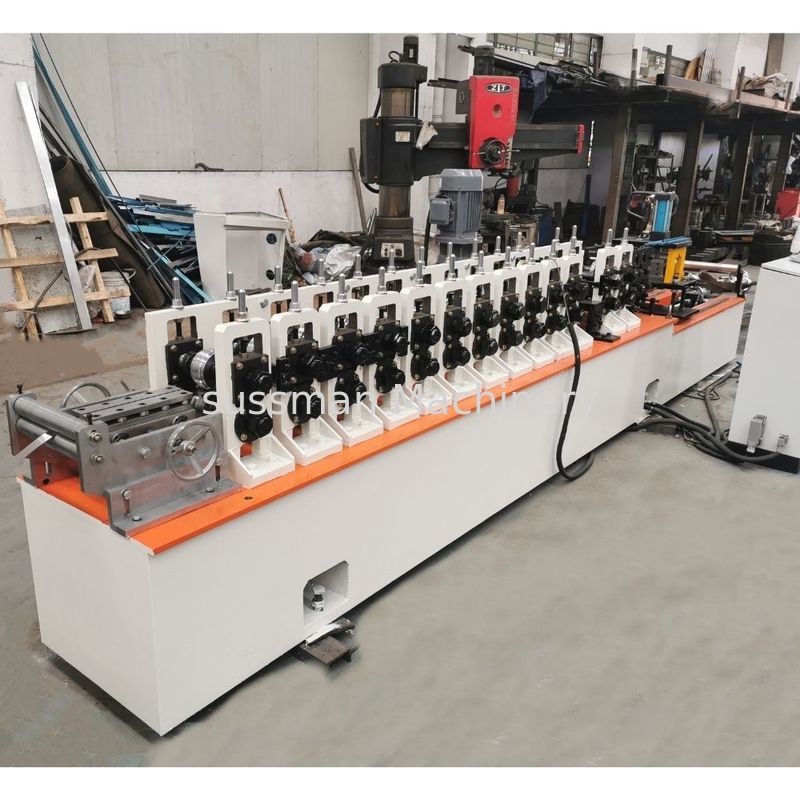

Machine Photo



Automatically Hydraulic Stainless Steel U Shaped Groove Roll Forming Machine 3

Automatically Hydraulic Stainless Steel U Shaped Groove Roll Forming Machine 4

Spare Parts



Hydraulic station

Automatically Hydraulic Stainless Steel U Shaped Groove Roll Forming Machine 5

Out table

Automatically Hydraulic Stainless Steel U Shaped Groove Roll Forming Machine 6

Cutting device

Automatically Hydraulic Stainless Steel U Shaped Groove Roll Forming Machine 7
