0.8mm Thickness Ridge Cap Machine 18 Stations PLC Touch Screen Control
  • 0.8mm Thickness Ridge Cap Machine 18 Stations PLC Touch Screen Control
  • 0.8mm Thickness Ridge Cap Machine 18 Stations PLC Touch Screen Control
  • 0.8mm Thickness Ridge Cap Machine 18 Stations PLC Touch Screen Control
  • 0.8mm Thickness Ridge Cap Machine 18 Stations PLC Touch Screen Control
  • 0.8mm Thickness Ridge Cap Machine 18 Stations PLC Touch Screen Control
  • 0.8mm Thickness Ridge Cap Machine 18 Stations PLC Touch Screen Control

0.8mm Thickness Ridge Cap Machine 18 Stations PLC Touch Screen Control

Place of Origin Wuxi,China
Brand Name Sussman
Certification ISO 9001 SGS
Model Number Tile capping 01
Product Details
Control System:
PLC Control With Touch Screen
Drive:
Chain Drive
Roller Station:
18 Stations
Motor Power:
7.5KW
Thickness:
0.3mm-0.8mm
Speed:
5-10 Meters/min
High Light:

0.8mm Thickness ridge cap machine

,

18 Stations ridge cap machine

,

0.8mm Thickness ridge forming machine

Payment & Shipping Terms
Minimum Order Quantity
1
Price
USD 39000
Packaging Details
Naked packing
Delivery Time
90 days
Payment Terms
T/T
Supply Ability
5 Sets per month
Product Description


0.3mm-0.8mm Thickness South America Ridge Capping Roll Forming Machine

 This ridge capping roll forming machine is hot sale in South America area.
The Main Description:







Items



Specifications

Material of coilMaterial Thickness0.3—0.8mm
 Un Coiler3 tons manual
Forming systemRolling Speed5-10m/min
 Roller Stations18 stations
 Roller material45# steel, coated with chrome
 Maim Motor Power7.5kw


Hydraulic cutting Power


7.5kw

Cutting
system

Material Of CuttingCR12 with quench treatment
 HardnessHRC58-62
 Tolerance+-1.5mm
Electrical control systemElectric Source

220V, 60HZ,3 phase
Also can satisfy customer’s require

 Control SystemPLC with touch screen
 Way Of Drive1.2 inch single chain

Packing
information

Color of the machineblue


Machine List:


3 ton passive de-coiler1 set
Hydraulic Punching device1 set
Main roll forming machine1 set
Punching press mould1 set
Control box1 unit
Hydraulic station1 unit
Out table1 unit


Working Flow:

Uncoiling—Feeding—Punching— Roll forming—Cutting—Products collecting


Profile Drawing:


0.8mm Thickness Ridge Cap Machine 18 Stations PLC Touch Screen Control 0
0.8mm Thickness Ridge Cap Machine 18 Stations PLC Touch Screen Control 1

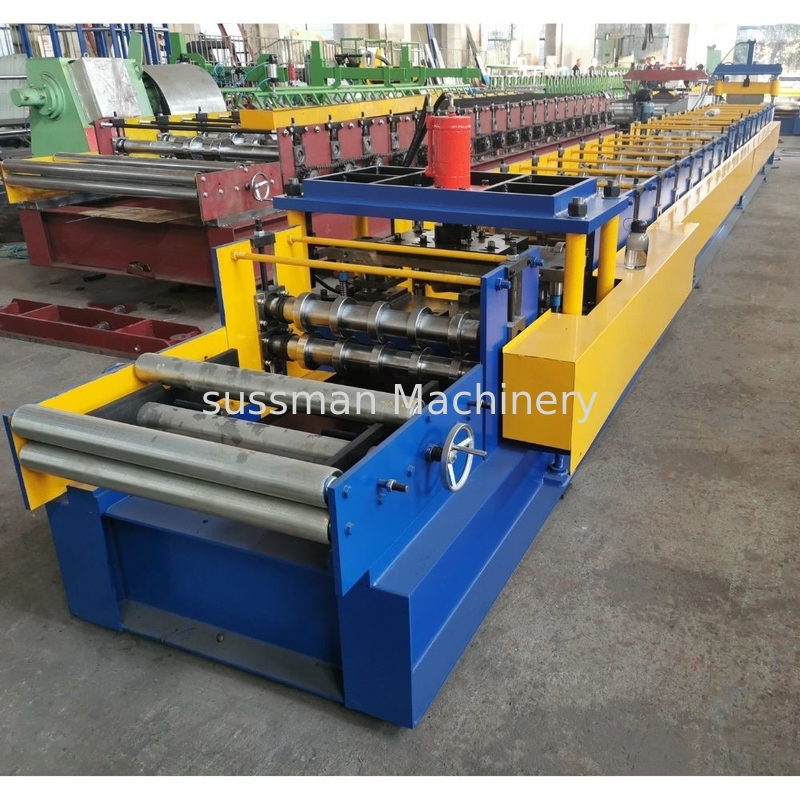

Machine Pictures:

0.8mm Thickness Ridge Cap Machine 18 Stations PLC Touch Screen Control 2
0.8mm Thickness Ridge Cap Machine 18 Stations PLC Touch Screen Control 3

Finished Products:

0.8mm Thickness Ridge Cap Machine 18 Stations PLC Touch Screen Control 4
0.8mm Thickness Ridge Cap Machine 18 Stations PLC Touch Screen Control 5
0.8mm Thickness Ridge Cap Machine 18 Stations PLC Touch Screen Control 6
