Place of Origin | Wuxi Jiangsu China |
Brand Name | Sussman |
Certification | CE |
Model Number | SM-PUC |

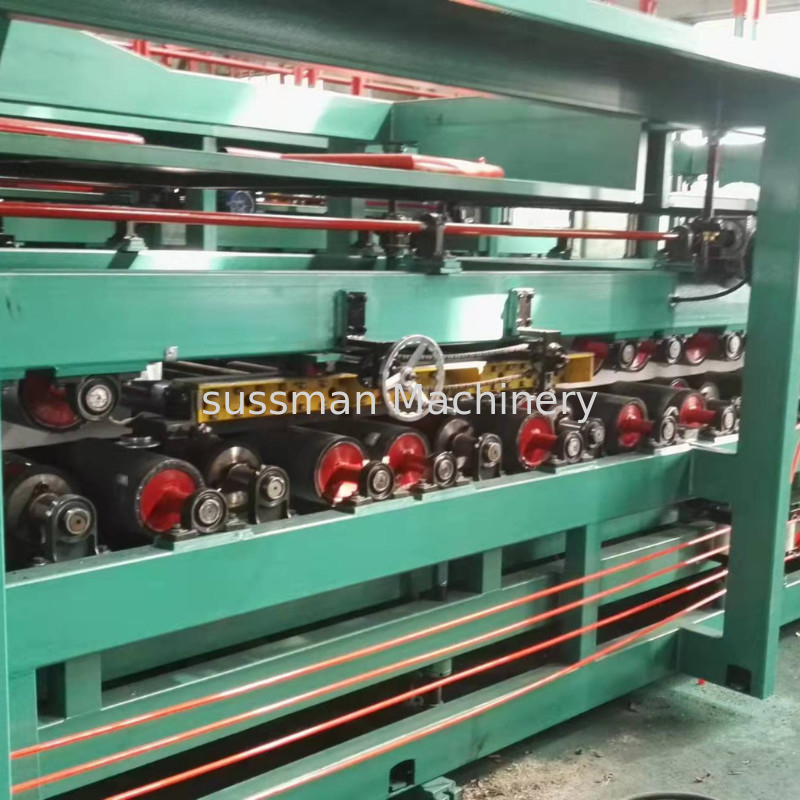

980mm Width 6meters / Min EPS Sandwich Roof Wall Panel Production Line
EPS Sandwich Panel Production Line Technical Parameter
Suitable material |
PPGI/Aluminium sheet/galvanized sheet/various sheet plates |
Thickness of coil sheet |
0.3-0.8mm |
Coil width |
1000mm |
Cover width |
980mm |
Material of main frame |
350H steel |
Roller |
Quenched and tempered treatment, hard chrome coated 0.05-0.07mm |
Power of main motor |
32kw with Cycloidal reducer |
Forming speed |
About 0-6m/min |
Hydraulic cutting |
Controlled by PLC |
PLC |
DELTA(TAIWAN |
2. Processing working flow
Decoiler—Roll Forming—laminating system (ribbon, gelatinizing, heating up, compounding, crimping, notching, edge trimmer)—cutting system—Runout Table
NO. |
Name |
Components |
Quantity |
Remark |
|
Roof panel roll forming machine |
Steel uncoiler |
2 Sets |
Upper/Lower each 1 set |
2 |
|
Ribs forming set |
2 Sets |
Upper/Lower each 1 set |
3 |
|
Electrical cutting sheet set |
2 Sets |
|
4 |
|
Core material conveying device |
1 Set |
|
|
Main sandwich panel part |
Glue pump |
1 Set |
4 glue pumps, 2 motors, 2 inverters |
6 |
|
Pneumatic glue device |
3 Sets |
Upper/Middle/Lower each 1 set |
7 |
|
Sandwich main part and transmission |
1 Set |
|
8 |
|
Infrared heating device |
6 Sets |
|
|
|
Electrical edge joint forming set |
1 Set |
|
9 |
PLC control |
1 Set |
|
|
10 |
Saw Cutting set |
1 Set |
Automatic cutting |
Profiles of PU Ceiling
EPS Sandwich panel application
Machine Photo
