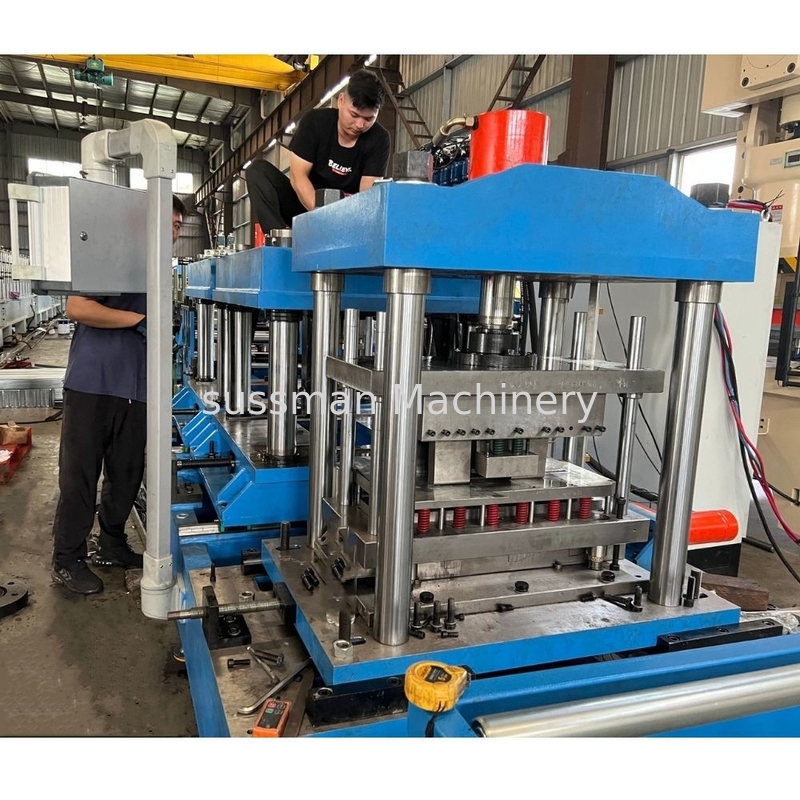

Auto Car Beam Roll Forming Machine 200mm - 400mm Width Adjustable Steel
  • Auto Car Beam Roll Forming Machine 200mm - 400mm Width Adjustable Steel
  • Auto Car Beam Roll Forming Machine 200mm - 400mm Width Adjustable Steel
  • Auto Car Beam Roll Forming Machine 200mm - 400mm Width Adjustable Steel
  • Auto Car Beam Roll Forming Machine 200mm - 400mm Width Adjustable Steel

Auto Car Beam Roll Forming Machine 200mm - 400mm Width Adjustable Steel

Place of Origin Wuxi, China
Brand Name SUSSMAN
Certification CE, SGS, ISO
Model Number RF-DF
Product Details
Type:
Auto Car Beam Roll Forming Machine
Forming Stations:
22 Stations
Width:
200mm-400mm
Main Motor Power:
22 Kw Servo Motor
Hydraulic Cutting Power:
22Kw
Material Thickness:
1.5-2.5mm Steel
Highlight:

Auto Car Beam Roll Forming Machine

,

200mm Beam Roll Forming Machine

,

Adjustable Steel Beam Roll Forming Machine

Payment & Shipping Terms
Minimum Order Quantity
1 set
Price
negotiable
Packaging Details
Film and steel
Delivery Time
60 days after deposit
Supply Ability
10 set per months
Product Description

200mm-400mm Width Adjustable Steel Auto Car Beam Roll Forming Machine



Product Description

Steel Auto car Beam roll forming machine can make various types of beams width from 200-400mm reinforced, fire stop doors, etc by roll forming method. The steel door frame roll forming machine is a complete product line. After roll forming by our production line, we could make a very smooth and beautiful steel door frame without any scratch on the surface. This steel door frame production line is composed of the following elements: De-coiler, feed & leveling device, punching device,  main roll forming machine, cutter, run-out table, etc. Those machines are customized according to the drawing profile.


Drawing for your reference:


Processing material: colored steel plate, galvanized plate, or aluminum plate
Material thickness: 1---2.5mm
Material hardness: 550 mpa---350 mpa
Profile width: 200-400mm(according to the drawing)
Forming speed: 12m/min
Working speed:8m/min




           Uncoiler System


Usage:It is used to support the steel coil and uncoil it in a turnable way.
Passive uncoil pulled by roll forming system



Loading capacity:5T hydraulic

Uncoiling width:600mm

Inner diameter: 450-550mm

Main Roll Forming System




Feature : Ensure stability , precision and lifetime.

Usage: In order to keep the product shape and precision, adopts welded
sheet structure, motor reducer drive, chain transmission,
roller surfaces polishing, hard plating,heat treatment and galvanized treatment .
The polished surface and the heat treatment towards the molds also can keep the
molding plate surface smooth and not easy to be marked when it is being stamped.

Length of the main part: about 13500*900*1000
Weight of main part: 3 tons
Voltage : 220V 50HZ 3Phase

Roller fixer : Guide column
Frame : 400 H steel
Drive mode: chain

Material of rollers: Gcr15, surface hard chromium plating.
Material of shafts: 45# steel with tempering
Diameter of shafts: φ70mm
Number of rollers : 20*25 rollers
Main power: 22kw(cycloidal planetary gear speed reducer)
Hydraulic power : 22kw


Other drawing for you choose:
We can desgin the machine as your requirement. With a profile drawing, we will give you a popular
proposal for your reference. Here are some profile draiwing we can make





Our Services

1. Installation and training:
a.If buyers visit our factory and check the machine, we will teach you how to install and use the machine, and also train your workers/technician face to face.
b.Without visiting, we will send you user manual and video to teach you to install and operate.
C.If buyer needs our technician to go to your local factory, please arrange board and lodging and other necessary things.
2. After Service
a.One year guarantee for whole machine.
b.24 hours technical support by email or calling
c.If there is any problem found of the machine, we will repair it for free in one year.


Profiles and the Punching Gallery

Auto Car Beam Roll Forming Machine 200mm - 400mm Width Adjustable Steel 0Auto Car Beam Roll Forming Machine 200mm - 400mm Width Adjustable Steel 1Auto Car Beam Roll Forming Machine 200mm - 400mm Width Adjustable Steel 2
 Auto Car Beam Roll Forming Machine 200mm - 400mm Width Adjustable Steel 3
