Ridge Cap Roll Forming Machine
>
|
|
| Place of Origin | China |
| Brand Name | SUSSMAN |
| Certification | SGS.CE.ISO |
| Model Number | SM-RH |
High Speed 6 Meters Length Cnc Folding And Slitting Machine Bending Thickness 1.0mm
Technical Parameter
1) For material: Aluminum, steel
2) Thickness: Max.1.0mm
3) Max. Bending length: 8000mm
4) Driven by Servo motor
5) Working length: 4000mm, 6000mm
6) Press clamp:7 units
7) Weight:About 5000 Kg
8) Motor for hydraulic station:11KW
9) Bending range:0-125 degree
10) Depth of throat:800 mm(Max. working width of material in clamp)
11) Act component of worktable: hydraulic double oil cylinder
12) Circle time: Max. bending limit take about 12 seconds
13) Motor power of hydraulic station:11kw
14) Outline dimension length×width×height:9395×1842×1375mm
Parameter of folding and slitting capability
|
METAL FOLDING MACHINE |
|||
|
Machine specification |
Main power |
kW |
11 kW |
|
Machine Weight |
Tons |
5 tons |
|
|
Machine Dimensions |
m |
9.0m x 1.8mx1.4m |
|
|
Raw material |
Bending Thickness |
mm |
0.8-1.0mm |
|
Length |
mm |
6m |
|
|
Material Strength |
|
G300-G550 |
|
|
Production specification |
Bending degree |
|
15º-125º |
|
Tolerance of bending step |
|
< 2 º |
|
|
Control System |
|
PLC |
|
|
Bending system |
Hydraulic system with proportional valves |
||
PLC Control System
1)System:Siemens PLC Control
2)Numerical control locating system:Siemens PLC Control
3)Operating table:Touch Screen
4)Angle programmer:Encoder test
5)Slitting control:Manual
Working Flow of Roll Forming Machine
Program ----- set workpiece ------ back fender locating ------ workpiece clamping ----- bending ----- loose workpiece ---- overturn ---- back fender locating ---- workpiece clamping ----- loose workpiece ---- unload
Profile we can make

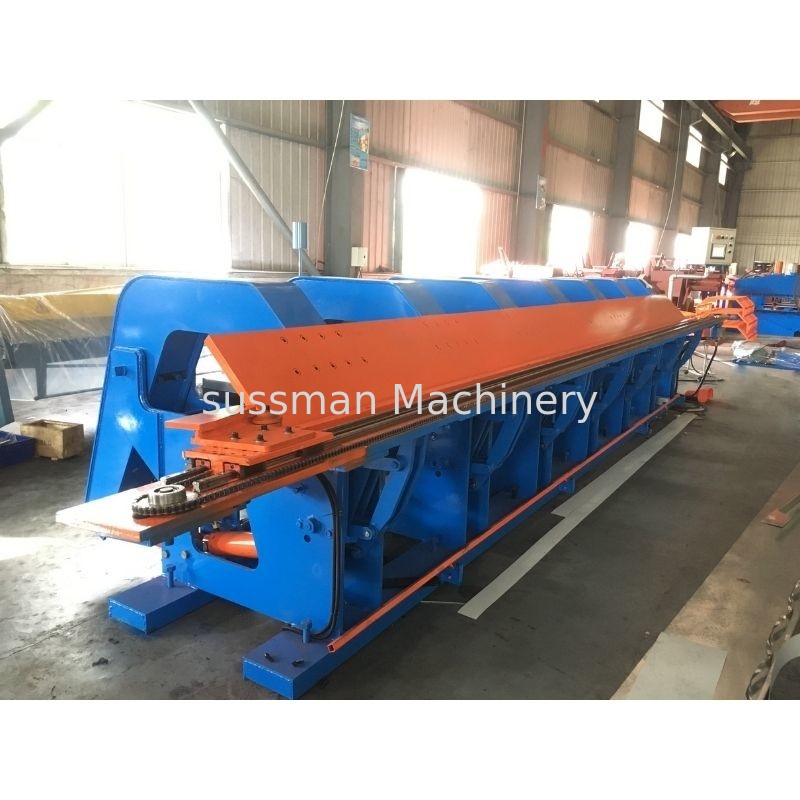

Machine Photo
