4 Meters 6 Meters Metal Bending Machine Roof Sheet Folding Machine Bending Thickness 1.0 Mm
Technical Parameter
The numerical-control folder&slitting machine is designed for processing the metal panels, it is suit for the long workpiece.
The bending angle is made by the rotation of lower beam.
This rotation is measured by Encoder sensor and accurately operated by PLC control system automatically.
You can set angle what you want to do on touch-screen and accurately formed by PLC-intelligent control system.
|
|
|
|
Main power
|
kW
|
11 kW
|
|
Machine Weight
|
Tons
|
5 tons
|
|
|
|
|
|
|
Bending Thickness
|
mm
|
0.8-1.0mm
|
|
Length
|
mm
|
9m
|
|
Material Strength
|
|
G300-G550
|
|
|
Bending degree
|
|
15º-125º
|
|
Tolerance of bending step
|
|
< 2 º
|
|
Control System
|
|
PLC
|
|
Bending system
|
Hydraulic system with proportional valves
Bending automatically follow the installed angles on touch-screen
|
PLC Control System
1)System:Siemens PLC Control
2)Numerical control locating system:Siemens PLC Control
3)Operating table:Touch Screen
4)Angle programmer:Encoder test
5)Slitting control:Manual
Working Flow of Roll Forming Machine
Program ----- set workpiece ------ back fender locating ------ workpiece clamping ----- bending ----- loose workpiece ---- overturn ---- back fender locating ---- workpiece clamping ----- loose workpiece ---- unload
Profile we can make

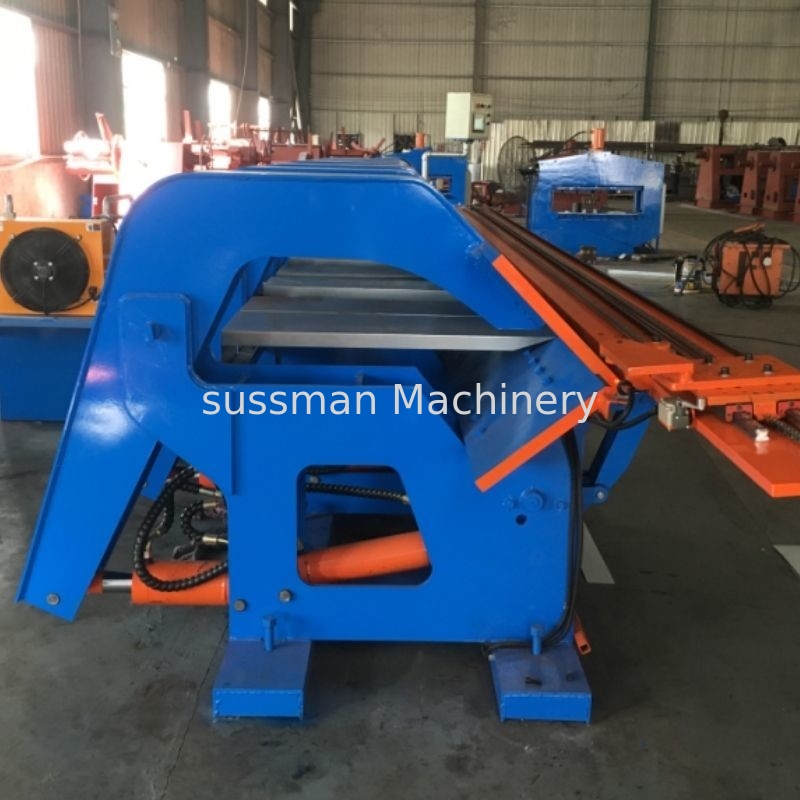

Machine Photo
