Floor Deck Roll Forming Machine
>
|
|
| Place of Origin | China |
| Brand Name | SUSSMAN |
| Certification | SGS,CE ,ISO9001 |
| Model Number | SS-BD |
0.8mm-1.2mm Thickness B Composite Metal Double Deck Floor Roll Forming Machine
The metal deck is a steel structure building material produced by cold roll forming, which is used for supporting floor concrete in the construction industry. It is also called a metal floor deck.
Steel decking products are the preferred method of floor construction for multi-story structural steel framed buildings. Floor deck offers structural engineers and contractors a versatile and cost-effective composite steel flooring solution. The advantages of the metal deck rollforming machines are a high wave, high strength, high automation and low cost.
The normal machinable thickness range of our steel deck roll forming machine is 0.8-1.2mm, the standard or more used in international market is Gauge 22, 20, 18, 16 (0.75-1.5mm), working raw material is PPGI, Galvanized steel etc. We confirm machine’s configuration according to your drawing, specially the pitch and height of each wave. Sussman Machinery is always your best choice of metal deck roll forming machine.
Floor Deck Making Machine Technical Parameter
Machine List
| 10 tons de-coiler with coil car and arm device | 1 set |
| Feeding with guide | 1 set |
| Main roll forming machine | 1 set |
| Hydraulic cutting | 1 set |
| Control box | 1 unit |
| Hydraulic station | 1 unit |
| 4 meters passive out table | 1 set |
| Safety cover | 1 set |
| Spare parts | 1 package |
Working Flow of Machine
Uncoiling—Feeding&Leveling--Roll forming—Cutting—Products collecting
Standard Profile Drawing of product

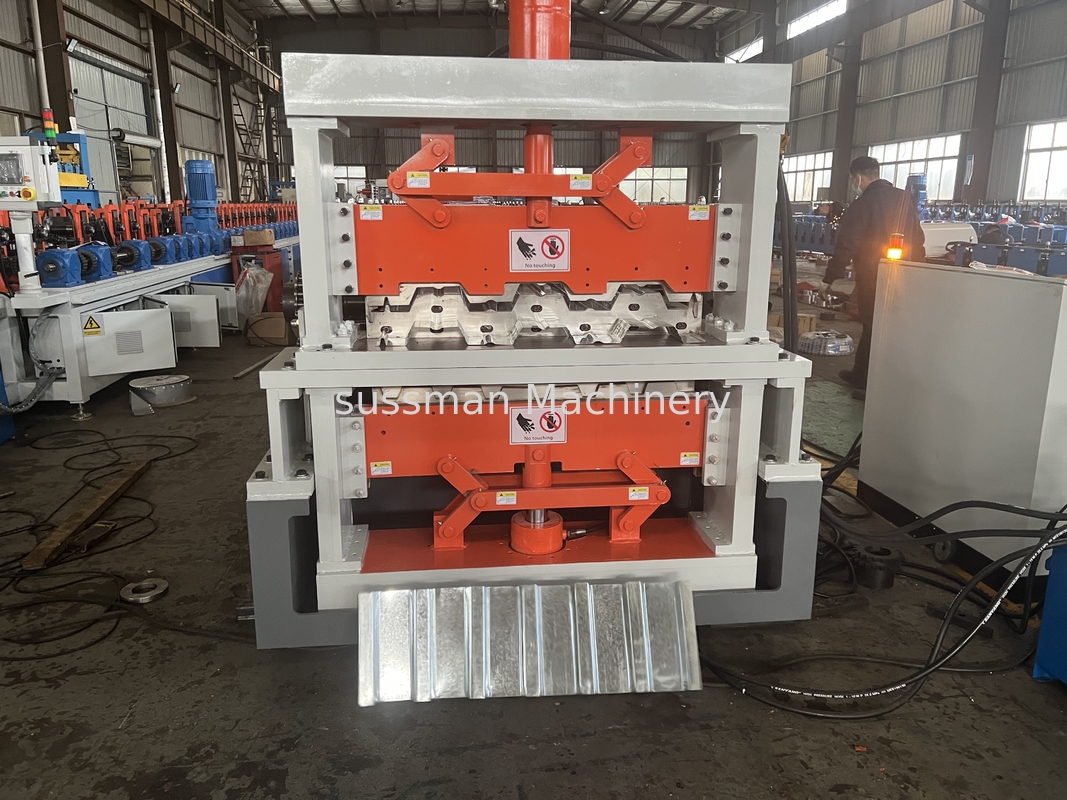

Machine Photo
