Metal Door Frame Roll Forming Machine Steel 1.5 - 2.0mm 11KW

1.5-2.0mm Thickness Metal Door Frame Roll Forming Machine Steel Door Making Machine

Door Frame Technical Parameter:

1. Steel Sheet Thickness: 1.5-2mm (depend on requirement )
2. Transmission way: gear box
3. Transmission material: 45# steel, high frequency quenching
4. Material of blad: Cr12, quenching treatment

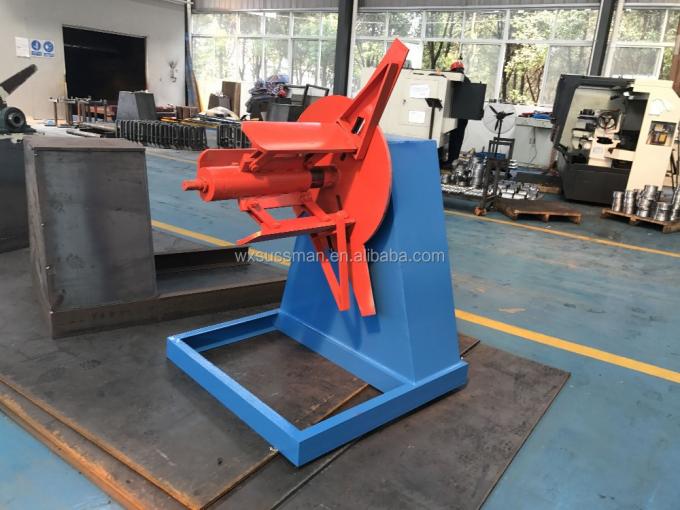

5. Capacity of Decoiler: 3 ton passive decoiler
6. Forming Speed: 12-15m/min
7. Roller Groups: 18 stations upper and 16 stations down
8. Roller Material: GCr15, high frequency quenching treatment, HRC58-62
9. Feeding material: galvanized steel
10. Principal Axis: 45# high grade steel with quenching treatment
11. Main motor power: 15 Kw

12. Hydraulic power: 5.5Kw

Machine List:

Product Description

Coil inner Diameter: ￠460mm~520mm

Max out diameter of the coil: ￠800mm

Expansion: Manual with brake

Max Coil Width: 500mm

Thickness of sheet: 1.0-1.5mm
Motor Power: 7.5 kw forming system
Roller material: C45 steel
Base Frame: 300 H steel welded
Roller Stations About 13 stations forming
Roller Material 45# Steel with quenching
Shaft Material 45# Steel Diameter 60mm shaft



Cutting way: Stop to cut.

Oil pump statio:1set.

Hydraulic power: 7.5 kw hydraulic system.

Blade Material: CR12Mov with heat treatment HRC58-62.

Tolerance: +-1.5mm



Power supplier: 380V, 50 Hz, Three Phase (adjusted with the requestment)
Length & quantity measurement automatically;
Length & quantity controlled by PLC
Length inaccuracy can be amended easily.

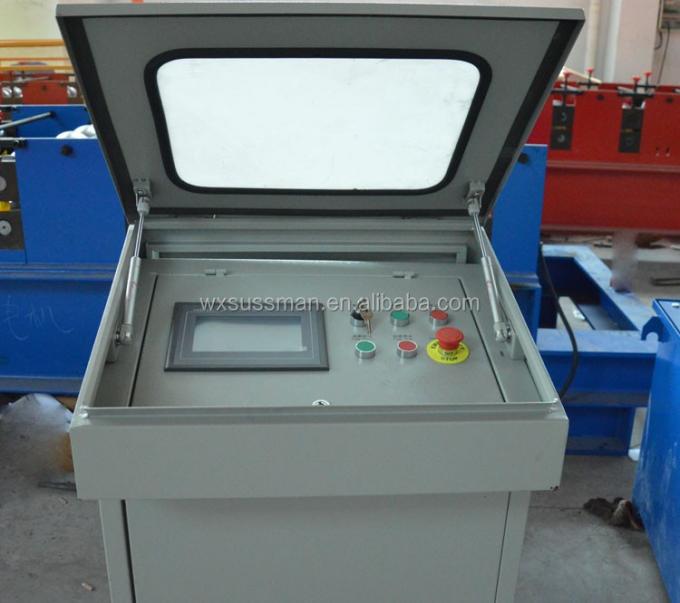

Control panel: Button-type switch and touch screen
The language in the touch screen: English and Chinese
Unit of length: millimeter (switched on the control panel)

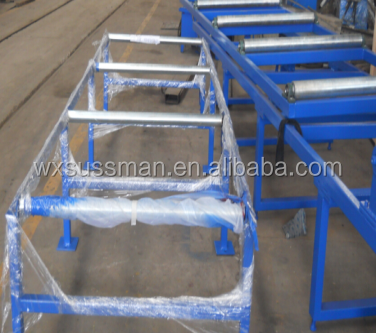

It adopts welded steel and supported roller to transmit the products.


Size:4000*1350*1000mm
