Door Frame Roll Forming Machine
>
|
|
| Place of Origin | Wuxi, China |
| Brand Name | Sussman |
| Certification | CE, SGS, ISO |
| Model Number | RF-ST |

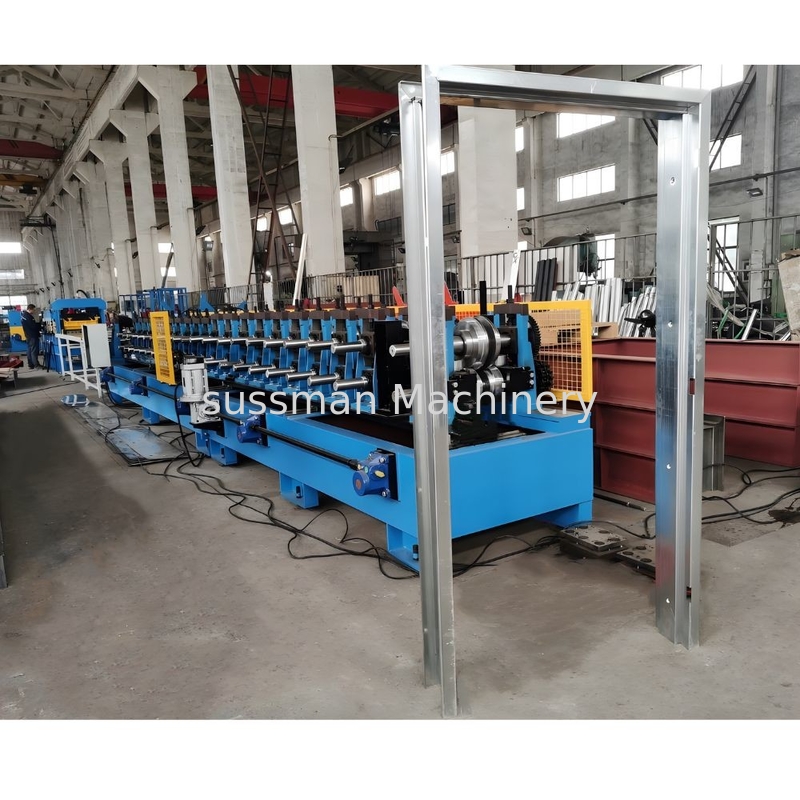

0.7mm-1.8mm Thickness Throat Adjustable Metal Knock Down Frames Door Frame Roll Forming Machine
Commercial KD frames are among the most popular door frames used around the world. They can be used for a variety of wall construction materials (drywall, masonry, etc). Steel and wood doors can be installed into commercial HM steel frames. Our KD frames can meet a variety of applications, have various hardware preparations and can be painted to complement any decor.
Technical Data:
1,Materials to form door frame: According to the customers’ requirement1.5-2.0mm steel
2,Work speed: 3-10m/min
3,Forming steps: About 20 steps
4,Material of rollers: GCr15 steel, precision-machined, high frequency quenching HRC58-62,
5,Material of main shaft : 45# high quality steel
6,Chains’ material: 45# steel, high frequency quenching, circular pitch: 38.1; number of teeth: 13
7,Main motor power: 7.5KW
8,Cutting : Hydraulic cutting, 4kw; quenching HRC58-62, with 3 cut dies ( you must change the bushing blocks when you want to manufacture another door frame.
9,Electronic control: PLC control
Machine List:
| Name | Quantity (set) |
| De-coiler | 1 |
| Level device | 1 |
| Main forming machine | 1 |
| Hydraulic cutting machine | 1 |
| Cutting blades | 3 |
| Straightening | 1 |
| PLC Control panel | 1 |
| Run out table | 2 |
Profile Drawing:
Working Flow:
Decoiler—→level device—→main forming machine—→straightening—→hydraulic Punching —→hydraulic cutting—→ run out table
Finished Products:
Application:
