0.3-0.8mm Galvanized Steel K Type Half Square Rain Gutter Roll Forming Machine
  • 0.3-0.8mm Galvanized Steel K Type Half Square Rain Gutter Roll Forming Machine
  • 0.3-0.8mm Galvanized Steel K Type Half Square Rain Gutter Roll Forming Machine
  • 0.3-0.8mm Galvanized Steel K Type Half Square Rain Gutter Roll Forming Machine
  • 0.3-0.8mm Galvanized Steel K Type Half Square Rain Gutter Roll Forming Machine
0.3-0.8mm Galvanized Steel K Type Half Square Rain Gutter Roll Forming Machine

0.3-0.8mm Galvanized Steel K Type Half Square Rain Gutter Roll Forming Machine

Place of Origin Wuxi Jiangsu China
Brand Name Sussman
Certification CCC, SGS, ISO9001, CE
Model Number SS-GU
Product Details
Forming Speed:
0-12 Meter Per Minute
Roller Station:
About 16 Forming Stations
Roller Material:
45# Steel With Quenching
Control System:
PLC With Touch Screen
Power Supply:
380V, 50Hz, 3Phase
Dirve System:
Chain Driving System
Highlight:

0.3-0.8mm galvanized roll forming machine

,

K Type galvanized roll forming machine

,

Rain Gutter galvanized roll forming machine

Payment & Shipping Terms
Minimum Order Quantity
1 set
Price
negotiable
Packaging Details
Standard package with film, plastic and steel wire. (or customized)
Delivery Time
Shipped in 75 working dys after payment
Payment Terms
L/C, T/T, Western Union
Supply Ability
11 sets per month
Product Description

Roof Gutter Roll Forming Machine





Technical Parameter







Item NO.



                 Description



             Offered Specification



1.0

 Roll forming machine



1.1

 Rolling speed 0-12 meter per minute



1.2

 Rolling thickness 0.3mm--0.8mm



1.3

 Raw material Galvanized cold steel sheet



1.4

 dimension 4500mm*800mm*1200mm



1.5

 Effective width  about 60mm
1.6 Roller stations

16 stations





1.7

 Roller material 45#forge steel, coated with chrome



1.8

 Shaft diameter Φ70mm ,material is 45# forge steel



1.9

 Transmission By chain 1 inch



1.10

 Material of chain 45# forged steel with quenching, 12A



1.11

 Material of cutting Cr12Mov with quench HRC58-62°





1.12

 Tolerance of cutting 6m+-1.5mm



1.13

 Frame

H type steel










Main Components





No.



Name



Quantity
1 3T passive decoiler 1 set
2 Main roll forming machine 1 set
3 Control box 1 unit
4 Hydraulic station 1 unit
5 Out table 1 unit





Roll Forming Machine Working Flow





Decoiler ---- Feeding --- Levelling---  Cutting ---Roll forming--- Run out table





0.3-0.8mm Galvanized Steel K Type Half Square Rain Gutter Roll Forming Machine 0

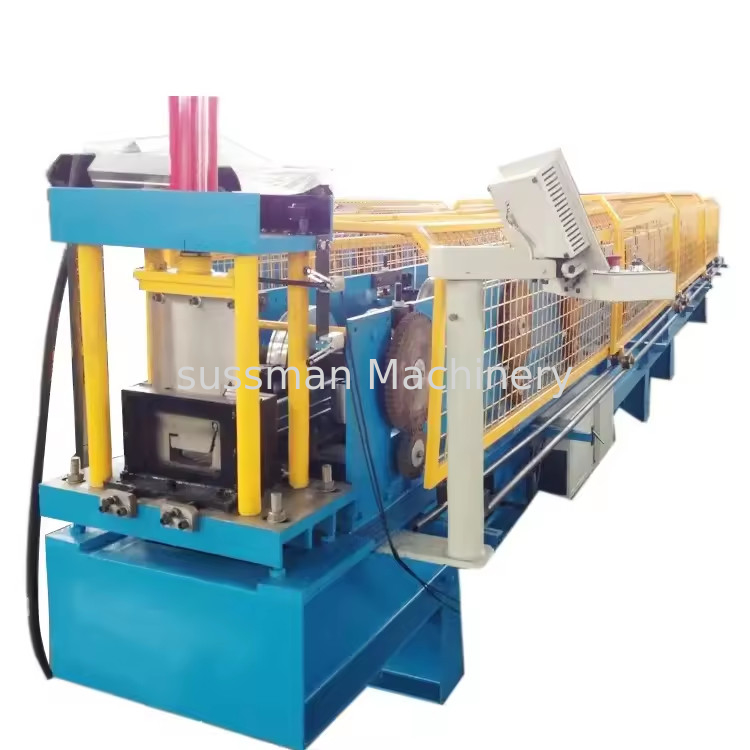

Machine Photo



0.3-0.8mm Galvanized Steel K Type Half Square Rain Gutter Roll Forming Machine 1





Loading picture





0.3-0.8mm Galvanized Steel K Type Half Square Rain Gutter Roll Forming Machine 2



After-sale Serive


- The seller takes responsibility for installation and commissioning of the equipment and free training. After machine arrive the destination, by the request of the buyer , the seller will provide 1 technical engineer to guide installation and training , and the buyer should give the technical person with full cooperated.
- Installation period: about 6 days after the complete preparation by the buyer such as the foundation and all necessary accessories.
- Training time: about 3 days.
- Before departure of the engineers from seller, the buyer should pay for installation and commissioning fee 300$/day to the point account of the seller. The two-way ticket,visa, food, hotel , the translator and insurance are all should provide by buyer with full responsibility.
-The seller supply technical data (including forming mould drawing, electrical elements drawing and equipment drawing etc.)
