Roof Drainage System V Profile Gutter Roll Forming Machine
Metal V gutter is a V-shaped roofing component designed to collect and channel rainwater from rooftops into downpipes or drainage systems. Made from durable materials such as galvanized steel, aluminum, or zinc-aluminum coated steel, it offers excellent corrosion resistance and long-lasting performance. Its simple yet strong design allows easy installation and reliable water management for residential, commercial, and industrial buildings.
Technical Parameter
|
Item NO.
|
Description
|
Offered Specification
|
|
1.0
|
Roll forming machine |
|
|
1.1
|
Rolling speed |
5-6 meter per minute |
|
1.2
|
Rolling thickness |
0.8mm--1.0mm |
|
1.3
|
Raw material |
Galvanized cold steel sheet |
|
1.4
|
dimension |
7500mm*800mm*1200mm |
|
1.5
|
Effective width |
about 198.2mm |
| 1.6 |
Roller stations |
18 stations
|
|
1.7
|
Roller material |
45#forge steel, coated with chrome |
|
1.8
|
Shaft diameter |
Φ70mm ,material is 45# forge steel |
|
1.9
|
Transmission |
By chain 1 inch |
|
1.10
|
Material of chain |
45# forged steel with quenching, 12A |
|
1.11
|
Material of cutting |
Cr12Mov with quench HRC58-62° |
|
1.12
|
Tolerance of cutting |
6m+-1.5mm |
|
1.13
|
Frame |
H type steel
|
Main Components
|
No.
|
Name
|
Quantity
|
| 1 |
3T automatical decoiler |
1 set |
| 2 |
Hydraulic punching device and servo feeding |
1 set |
| 3 |
Main roll forming machine |
1 set |
| 4 |
Control box |
1 unit |
| 5 |
Hydraulic station |
1 unit |
| 6 |
Out table |
1 unit |
Roll Forming Machine Working Flow
Decoiler ---- Feeding --- Levelling--- Hydraulic punching ---Roll forming-- Cutting - Run out table

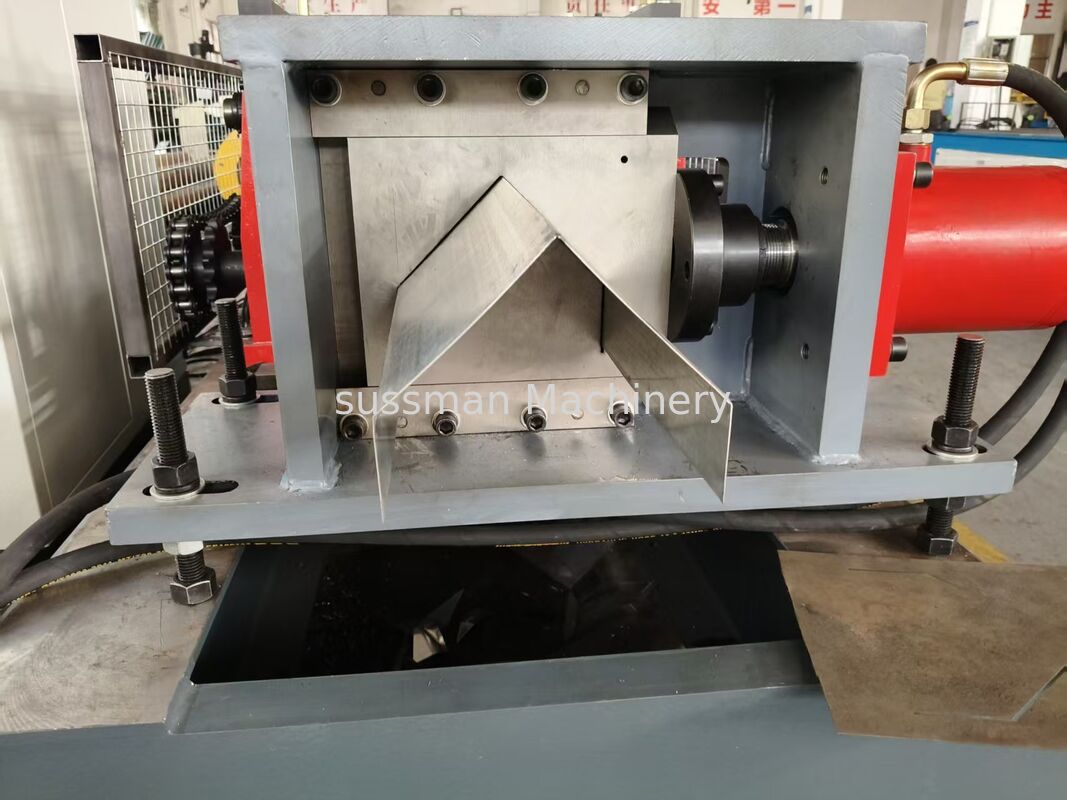

Machine Photo
After-sale Serive
- The seller takes responsibility for installation and commissioning of the equipment and free training. After machine arrive the destination, by the request of the buyer , the seller will provide 1 technical engineer to guide installation and training , and the buyer should give the technical person with full cooperated.
- Installation period: about 6 days after the complete preparation by the buyer such as the foundation and all necessary accessories.
- Training time: about 3 days.
- Before departure of the engineers from seller, the buyer should pay for installation and commissioning fee 300$/day to the point account of the seller. The two-way ticket,visa, food, hotel , the translator and insurance are all should provide by buyer with full responsibility.
-The seller supply technical data (including forming mould drawing, electrical elements drawing and equipment drawing etc.)
