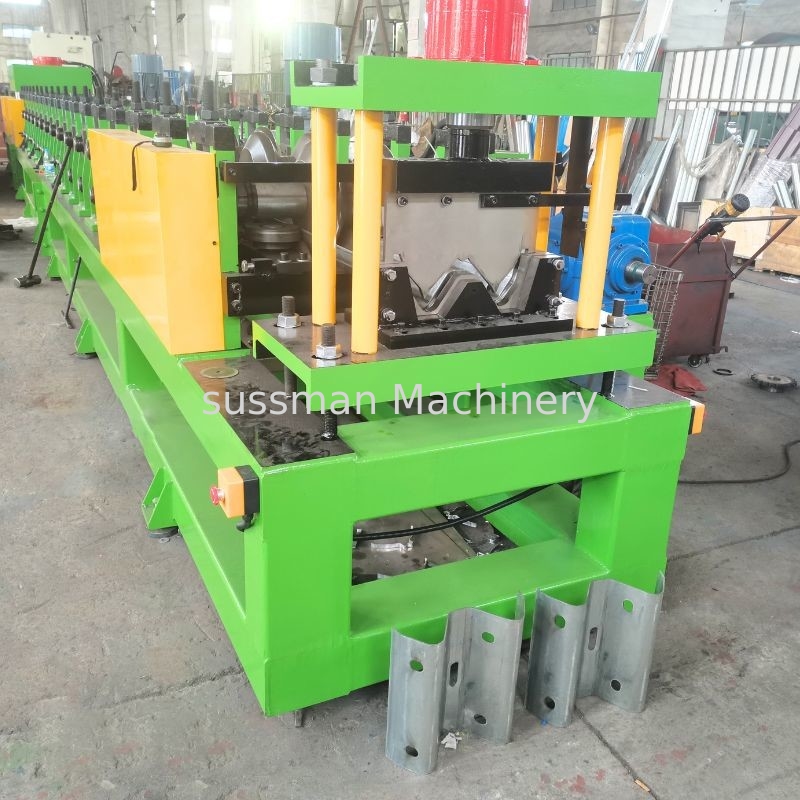

2mm-4mm Sheet Thickness W Beam 2 Waves Crash Barrier Guardrail Roll Forming Machine
Guardrail Roll Technical Parameter
| 1 |
Model No. |
Two waves highway roll forming machine |
| 2 |
Coil thickness |
2-4mm |
| 3 |
Coli material |
Steel |
| 4 |
The bearing capacity of manual decoiler |
5 tons |
| 5 |
Shaft material |
45#steel |
| 6 |
Shaft diameter |
90mm |
| 7 |
numbers of forming steps |
18 stations |
| 8 |
transmission |
Differential gearbox transmission |
| 9 |
Forming speed |
10 m/min |
| 10 |
main motor power |
18.5*2kw |
| 11 |
voltage |
380V50HZ Three-phase or you need |
| 12 |
dimension |
20.5*1.2*1.5m |
| 13 |
cutting |
Hydraulic cutting |
| 14 |
blade material |
Cr12 steel with quenched treated 60-62°c |
| 15 |
control system |
PLC(Delta) |
| 16 |
Tolerance |
±1.5mm |
Guardrail Roll Main Components
Decoiling—Feeding&leveling----Punching —— roll forming------hydraulic cut to length--outtable
| S.N |
Equipment name
|
Quantity |
| 1 |
5 ton manual decoiler
|
1 set |
| 2 |
Feeding and leveling device
|
1 set |
| 3 |
Hydraulic punching device
|
1 set |
| 4 |
Main roll forming machine
|
1 set |
| 5 |
Hydraulic station
|
1 set |
| 6 |
Control system (including control box)
|
1 set |
| 7 |
Out table
|
2 sets |
| 8 |
Punching Device
|
2 sets |
Advantage for Guardrail Roll
1. Reasonable Price
2. High Quality
3. 12 Months Warranty
4. More Than 10 Years Experience
5. Durable
6. Reliable
Profile Drawing
The guardrai profile can be customized as the client's request.
Application:
Highways and Roads: The primary application is in the construction and maintenance of highways and roads. Guardrails help to prevent vehicles from veering off the road, especially on curves, bridges, and elevated sections.
Bridges and Overpasses: Guardrails are installed on bridges and overpasses to prevent vehicles from falling off the edge and to protect pedestrians and other infrastructure.
Parking Lots: In parking lots, guardrails are used to delineate parking spaces, protect pedestrians, and prevent vehicles from damaging property or other vehicles.
Railways: Guardrails can be used alongside railway tracks to keep vehicles and pedestrians at a safe distance from the tracks.
Industrial Facilities: In industrial settings, guardrails are used to protect workers from falling into hazardous areas or machinery. They are also used to safeguard equipment and infrastructure.
Commercial and Residential Properties: Guardrails are used around properties, including in commercial areas, residential buildings, and recreational facilities, to enhance safety.
Sports Facilities: At sports venues, guardrails can be used to protect spectators and separate different areas of the facility.
