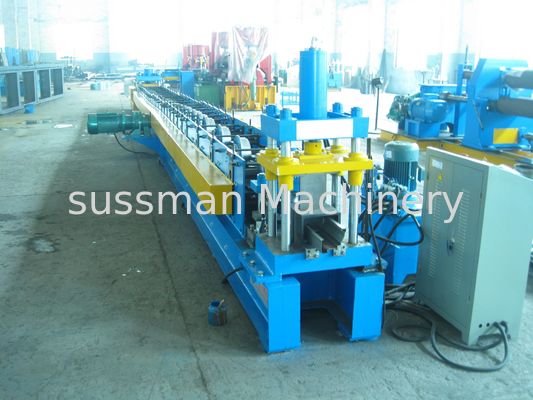

High Speed Door Panel Roll Forming Machine For Door Window Frame 18 steps of Forming
  • High Speed Door Panel Roll Forming Machine For Door Window Frame 18 steps of Forming
  • High Speed Door Panel Roll Forming Machine For Door Window Frame 18 steps of Forming
  • High Speed Door Panel Roll Forming Machine For Door Window Frame 18 steps of Forming
  • High Speed Door Panel Roll Forming Machine For Door Window Frame 18 steps of Forming

High Speed Door Panel Roll Forming Machine For Door Window Frame 18 steps of Forming

Place of Origin Wuxi Jiangsu China
Brand Name Sussman
Certification CE
Model Number SS-DP
Product Details
Name:
Door Panel Roll Forming Machine
Material:
Galvanized Steel
Material Thickness:
1.5-2.0mm
Forming Stations:
About 18 Stations
Roller Material:
Gcr15, Quench HRC58-62 Plated Chrome
Dirve System:
Gearbox
Power Supply:
380V, 50Hz, 3Phase
Forming Speed:
12-15m/min
Machine Weight:
About 12 Tons
Machine Size:
8m*1.5m*1.5m
High Light:

sheet metal roll forming machines

,

Cold Roll Forming Equipment

Payment & Shipping Terms
Minimum Order Quantity
1 set
Price
negotiable
Packaging Details
Standard packing
Delivery Time
55-65 days after deposit
Payment Terms
T/T L/C
Supply Ability
10 sets per months
Product Description

High Speed Door Panel Roll Forming Machine For Door Window Frame 18 steps of Forming





 Technical Parameter



1.Suitable Plate Material: thickness 1.5-2.0mm, Galvanized steel or blank steel

2. Working Speed: 12-15 meters / min

3. Forming Steps: 18 stations

4. Material of Roller: Gcr15, Quench HRC58-62 Plated Chrome

5. Material of Shaft: 45# Advanced Steel (Diameter: 76mm), thermal refining

6. Driven systemgear box drive

7. Main Power with reducer:15KW WH Chinese Famous

8. Cutting: Hydraulic Cutting Cr12mov

9. Material of Cutting Knife: Cr12Mov, Quench HRC58-62

10. Hydraulic Station Power: 7.5KW Wuxi Wanshen Famous Chinese Brand

11. The whole machine is controlled by industry computer-PLC.

12 PLC--Siemens, Japan English and Chinese Language

13 Touch Screen-- Siemens Japan

14. Encoder--Omron, Japan

15 Electric parts--Schneider

16 Machine direction: from Right to Left



 Main Components



Serial No.

Commodity & Description

Quantity

1

5T manual uncoiler

1 set

2

Leveing  guiding

1 set

3

Servo feeding device

1 set

4

Main roll forming machine

1 set

5

Punching Device

1 set

6

Cutting device

1 set

7

Finished products tabel

1 set

8

PLC control system

1sets

9

Out tables

1 sets

10 Spare parts 1 sets


Working Flow of Roll Forming Machine



Uncoiling—Feeding&Leveling--Punching Device---Roll forming—Cutting—Products collecting



working flow .png

 Profile of product





 Photo Gallery

High Speed Door Panel Roll Forming Machine For Door Window Frame 18 steps of Forming 3



High Speed Door Panel Roll Forming Machine For Door Window Frame 18 steps of Forming 4High Speed Door Panel Roll Forming Machine For Door Window Frame 18 steps of Forming 5








Loading pictures



Our After-Sales Service Commitments



Sussman hereby solemnly promises: We implement the “three guarantees” service policy for any equipment sold by Sussman, provide free of charge installation guidelines, commissioning and maintenance of the equipment, training of the Buyer’s relevant Operators; and provide technical requirements for the installation and operation of the equipment, technical layout diagrams and other related information, provide a lifetime supply of maintenance and spare parts

The detailed measures are as follows:

1.Guidelines for installation and commissioning of equipment:

Based on the actual situation, to assist and guide the Buyer and Buyer’s technical personnel in the overall installation location, the installation of equipment, and provide Buyer with answers to their questions and related issues;



2.Provide training for operation and maintenance personnel:

Based on the Buyer’s request, Sussman will provide free of charge training of the operation and maintenance personnel;

a) The User (Buyer) can send their operation and maintenance personnel to our factory for learning and training;

b) When Sussman is doing the installation and test running of the equipment for the Buyer, the Buyer can send their personnel to participate.



3.If failure occurs in any of the machines during the “three guarantees” period(one year), then, upon the Buyer’s request, Sussman will eliminate the failure;



4. Sussman will inform all its Buyers about any upgrades and significant product improvements. Sussman will provide equipment modifications based on their costs. Sussman will provide Buyers with high-quality after-sales services in a careful and responsible attitude, provide very strong guarantee for the Buyer’s normal production.

We provide quick and satisfactory customer service, and promise to respond within 24 hours after receiving your complaints by phone or email





FAQ



1) Q: Are you manufacturer or trading company?
A: We are manufacturer and trading company .

2) Q: Do you provide installing and training overseas?
A: Overseas machine install and worker training services are optional.

3) Q: How is your after sales support?
A: We provide technical support on line as well as overseas services by skillful technicians.



4) Q: How does your factory do regarding quality control?
A: There is no tolerance regarding quality control. Quality control complies with ISO9001. Every machine has to past testing running before it's packed for shipment.

5) How can I trust you that machines pasted testing running before shipping?
A: 1) We record the testing video for your reference. Or,
2) We welcome your visit us and test machine by yourself in our factory.

6) Q: Do you sell only standard machines?
A: No. Most machines are made to order.
