Product Details:
|
| Name: | Door Frame Roll Forming Machine | Material: | Galvanized Steel |
|---|---|---|---|
| Material Thickness: | 1.5-2.0mm | Forming Stations: | 18 Stations |
| Roller Material: | Gcr15, Quench HRC58-62 Plated Chrome | Dirve System: | Gearbox |
| Power Supply: | 380V, 50Hz, 3Phase | Forming Speed: | 12-15m/min |
| Machine Weight: | About 12 Tons | Machine Size: | 8.7mx1.8mx1.4m |
| High Light: | sheet metal roll forming machines,Cold Roll Forming Equipment |
||

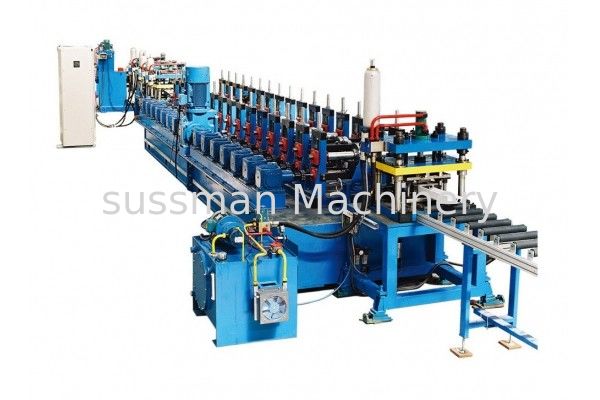

Efficiency Door Frame Roll Forming Machine , Metal Roll Forming Line
Technical Data
1.Suitable Material: thickness 1.5-2.0mm, Galvanized steel or blank steel
2. Working Speed: 12-15 meters / min
3. Forming Steps: 18 stations
4. Material of Roller: Gcr15, Quench HRC58-62 Plated Chrome
5. Material of Shaft: 45# Advanced Steel (Diameter: 76mm), thermal refining
6. Driven system: gear box drive
7. Main Power with reducer:15KW WH Chinese Famous
8. Cutting: Hydraulic Cutting Cr12mov
9. Material of Cutting Knife: Cr12Mov, Quench HRC58-62
10. Hydraulic Station Power: 7.5KW Wuxi Wanshen Famous Chinese Brand
11. The whole machine is controlled by industry computer-PLC.
12 PLC--Siemens, Japan English and Chinese Language
13 Touch Screen-- Siemens Japan
14. Encoder--Omron, Japan
15 Electric parts--Schneider
16 Machine direction: from Right to Left
Main Components
|
Serial No. |
Commodity & Description |
Quantity |
|
1 |
5T manual uncoiler |
1 set |
|
2 |
Leveing guiding |
1 set |
|
3 |
Servo feeding device |
1 set |
|
4 |
Main roll forming machine |
1 set |
|
5 |
Punching Device |
1 set |
|
6 |
Cutting device |
1 set |
|
7 |
Finished products tabel |
1 set |
|
8 |
PLC control system |
1sets |
|
9 |
Out tables |
1 sets |
| 10 | Spare parts | 1 sets |
Working Flow of Roll Forming Machine
Uncoiling—Feeding&Leveling--Punching Device---Roll forming—Cutting—Products collecting
Profile of product
Photo Gallery
