Sussman Machinery (Wuxi) Co., Ltd.
| Place of Origin: | CHINA |
|---|---|
| Brand Name: | Sussman |
| Certification: | CE, SGS, ISO |
| Model Number: | SM-EPS |
| Minimum Order Quantity: | 1 set |
| Price: | negotiable |
| Packaging Details: | standard packing |
| Delivery Time: | 90 days after deposit |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 4 sets/month |
| Name: | EPS Sandwitch Panel Production Line | Thickness Of A Panelr Equipment: | 40mm-250mm |
|---|---|---|---|
| Width Of Panel: | 500-1250mm | Length Of Panel: | 6m,12m,15m |
| Speed Of Production Line: | 8m/min ( Frequency Conversion To Adjust Speed ) | Core Density: | 40-42 Kg/m2 |
| High Light: | Polyurethane Sandwich Panel Line,Polyurethane Sandwich Panel Manufacturing Line |
||

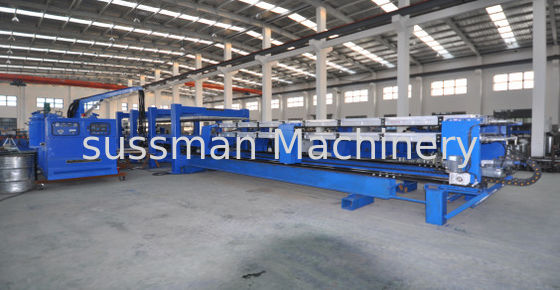

High Speed Certificated PU Formed Sandwich Panel Line Capacity EPS Panlel Machine
1. Machine Components
| No | Name | Qty |
| 1 | Hydraulic Uncoiler(option) | 1 set |
| 2 | Roof Panel Machine | 1 set |
| 3 | Hidden Wall Panel Machine | 2 sets |
| 4 | Z-Lock Wall Panel Machine | 1 set |
| 5 |
Discontinuous PU Sandwich panel Press |
1 set |
| 6 |
Discontinuous PU Sandwich panel Press |
1 set |
| 7 | Aluminum Edge Mold 50mm Each per 6m | 6 sets |
| 8 | Aluminum Edge Mold 50mm Each per 12m | 6 sets |
| 9 | Stretch Wrapping System(option) | 1 set |
| 10 |
PU foaming machine(2 Components, High |
1 set |
| 11 |
PU foaming machine(2 Components, High |
1 set |
2.Technical Parameter
Length of panel: 6m,12m,15m
Width of panel: 500-1250mm
Thickness of panel: 40mm-250mm
Speed of Production line: 8m/min ( frequency conversion to adjust speed )
Core Density (Kg/m2):40-42
Thermal Conductivity (W/m°K):0.018 – 0.020
Tensile Strength (KP a) :300–500
Bending Strength (KP a): 550–560
Shear Strength (KP a):120–300
Modulus of Elasticity (Mp a):3.0 – 8.5
Water Absorption :<2(Volume change %)
Water Vapor Transmission :1.8-3.8(Perm-in)
Stable Operating Temperature:-40to+50(°c)
One set of 6m PU Sandwich panel line is 288 sq.m. per day, 8 hours, so
it is 72000 sq.m. yearly with 2500 days per year
One set of 12m PU sandwich panel line is 576 sq.m. per day, 8 hours. so
it is 14400 sq.m. yearly, for 250 days per year.
Production capacity of this production line: 3-8m/min.
Panel width: 800-1000mm, panel thickness: 30-150mm.
Total power: about 150kw
3. About the PU Plant
1) The workshop needs to be about 500m3-800m3;
2) The power supply needs to be 32 KVA, and 380V/50Hz;
3) The producers of single shift need to be 5-6 persons.
