Forming Speed 15m / Min Door Frame Roller Making Machine Gearbox Driving System

Place of Origin	China
Brand Name	SUSSMAN
Certification	SGS.CE.ISO
Model Number	SS-DF

Product Details

Material:

Galvanized Steel Sheet

Material Thickness:

1.5-2mm

Forming Stations:

18 Stations

Roller Material:

45# Steel With Quenching 60mm Shaft

Dirve System:

Gearbox

Power Supply:

380V, 50Hz, 3Phase

Forming Speed:

12-15m/ Min

Machine Size:

8.7mx1.8mx1.4m

Control System:

PLC With Touch Screen

Main Motor Power:

7.5 KW

Highlight:

Glazed Tile Roll Forming Machine

Cold Roll Forming Equipment

Payment & Shipping Terms

Minimum Order Quantity

1 set

Price

negotiable

Packaging Details

Standard package with film, plastic and steel wire.

Delivery Time

70 working days after deposit

Payment Terms

L/C, T/T

Supply Ability

10 sets per month

Product Description

Door frame roll forming machine

Technical Parameter

1.Suitable Plate Material: thickness 1.5-2.0mm, Galvanized steel or blank steel
2. Working Speed: 12-15 meters / min
3. Forming Steps: 18 stations
4. Material of Roller: Gcr15, Quench HRC58-62 Plated Chrome
5. Material of Shaft: 45# Advanced Steel (Diameter: 76mm), thermal refining
6. Driven system: gear box drive
7. Main Power with reducer:15KW WH Chinese Famous
8. Cutting: Hydraulic Cutting Cr12mov
9. Material of Cutting Knife: Cr12Mov, Quench HRC58-62
10. Hydraulic Station Power: 7.5KW Wuxi Wanshen Famous Chinese Brand
11. The whole machine is controlled by industry computer-PLC.
12 PLC--Siemens, Japan English and Chinese Language
13 Touch Screen-- Siemens Japan
14. Encoder--Omron, Japan
15 Electric parts--Schneider
16 Machine direction: from Right to Left

Main Components

Machine list

5 ton passive de-coiler

1 set

Leveller

1 set

Punching

4 sets

Main roll forming machine

1 set

PLC Control box

1 unit

Hydraulic station

1 unit

Out table

2 units

A.Passive Decoiler..........................................................To load and uncoiling material
(We also have Electric Decoiler and Hydraulic Decoiler to hold the heavy material.)

B.Servo Feeding Applicator............................................To feed the material accurately

C.Hydraulic/Press Punching...........................................To punch as requirements

D.Roll Forming Unit.........................................................To roll form as requirements

E.Hydraulic Cutting.........................................................To cut sheets as desired length
(We also have non-stop hydraulic cutting system.)

F.Output Table................................................................Support the finished products

Working Flow of Roll Forming Machine

Decoiler—Level device —Main roll forming machine—Hydraulic cutting—Run out table

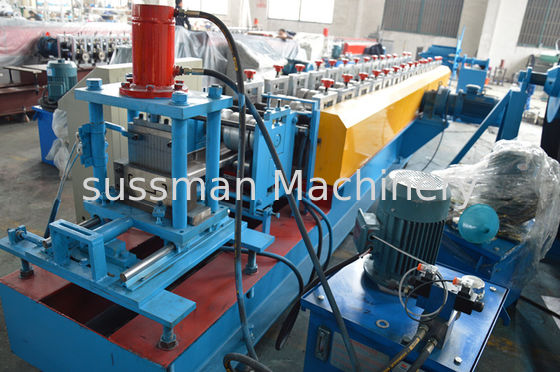

Forming Speed 15m / Min Door Frame Roller Making Machine Gearbox Driving System 0

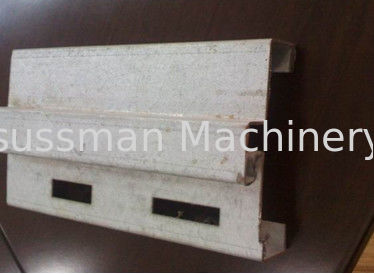

Profile of product
