Product Details:
|
| Material Thickness: | 1.5-2mm Steel | Forming Speed: | 3-15m/min |
|---|---|---|---|
| Roller Material: | GCr15 | Main Motor Power: | 11Kw |
| Hydraulic Cutting Power: | 4Kw | Machine Size: | 8000mm X 800mm X 800mm |
| Machine Weight: | 5Tons | ||
| High Light: | Glazed Tile Roll Forming Machine,Cold Roll Forming Equipment |
||
220mmWidth Profile Width Roll Forming Machinery For Door Frame 2mm Thickness Galvanized Steel
Technical Parameter
Relate basic info for doorcase rolling machine
| No. | Main parameter of door frame roll forming machine | |
| 1 | Suitable to process | Color steel plate |
| 2 | Width of the plate | As customer need |
| 3 | Thickness of the plate | 0.5-1.2mm |
| 4 | De-coiler | Manual one, can load 5 tons raw material |
| 5 | Rollers for forming | 12-16 rows |
| 6 | Diameter of the roller | Φ52mm |
| 7 | Rolling material | Carbon Steel 45# |
| 8 | Main motor power | 4kw |
| 9 | Productivity | 10-20m/min |
| 10 | Cutting method | Hydraulic mould cutting |
| 11 | Material of the cutting blade | Cr12 |
| 12 | Hydraulic cutting power | 3kw |
| 13 | Processing precision | Within 1.00mm |
| 14 | Control system | Delta PLC control |
| 15 | Side panel of machine | 14mm |
| 16 | Main structure of the machine | 300 H steel |
| 17 | Weight | About 3.6T |
| 18 | Dimensions | 6.5*1.0*1.5m |
| 19 | Voltage | 380V 50Hz 3phases(changeable as needs) |
| 20 | Certificate |
CE/ISO/SGS |
Working Flow
De-coiler—→level device—→main forming machine—→straightening—→hydraulic Punching —→hydraulic cutting—→ run out table
Machine Componnets
| Name | Quantity( set) |
| Decoiler | 1 |
| Level device | 1 |
| Main forming machine | 1 |
| Hydraulic punching | 1 |
| Hydraulic cutting machine | 1 |
| Cutting blades | 5 |
| Straightening | 1 |
| PLC Control Panel | 1 |
| Run out table | 2 |
Our Service
1. Installation and training of light keel making machine:
a.If buyers visit our factory and check the machine, we will teach you how to install and use the machine,
and also train your workers/technician face to face.
b.Without visiting, we will send you user manual and video to teach you to install and operate.
C.If buyer needs our technician to go to your local factory, please arrange board and lodging and other
necessary things.
2. After Service of light keel making machine
a.One year guarantee for whole machine.
b.24 hours technical support by email or calling
c.If there is any problem found of light keel making machine, we will repair it for free in one year.

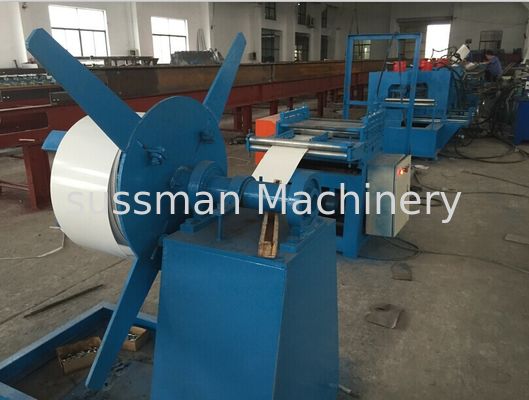

Machine photo
FAQ
1) Q: Are you manufacturer or trading company?
A: We are manufacturer and trading company .
2) Q: Do you provide installing and training overseas?
A: Overseas machine install and worker training services are optional.
3) Q: How is your after sales support?
A: We provide technical support on line as well as overseas services by skillful technicians.
4)Q: How does your factory do regarding quality control?
A: There is no tolerance regarding quality control. Quality control complies with ISO9001. Every machine has to past testing running before it's packed for shipment.
5) How can I trust you that machines pasted testing running before shipping?
A: 1) We record the testing video for your reference. Or,
2) We welcome your visit us and test machine by yourself in our factory.
6) Q: Do you sell only standard machines?
A: No. Most machines are made to order.
