PLC Control system 8-12M/Min High Speed Guardrail Roll Forming Machine Glazed Steel Color Customized
Product Description
It can form guardrail sheet according to customer’s requirement continuously, automatically cut to length. The equipment adopts PLC control, AC frequency and adjusting the speed technology, and it realizes the continuous automatically production, therefore, it is really a new type of energy-saving and high-effective producing equipment for guardrails. And it has many advantages, just like high forming speed, low noise, stable transmission, easy operation, good appearance and so on.
Technical Parameters
1. Decoiler: umbrella type, passivity decoil, manual expansion
2. Decoiler capacity: 5T
3. Material width and thickness: 480mm*(2.0-3.2mm), Q235A steel
4. Working speed: 15M/min
5. Forming stand: 15 station and 7 leveling rollers
6. Roller material:GCr15 bearing steel with quenching treatment, HRC58-62
7. Main shaft material: high grade No.45 steel by thermal refining
8. Main shaft diameter: φ95mm
9. Main motor power: 22kW
10. Transmission: Chain
11. Leveling motor power: 5.5kW
12. Hydraulic motor power: 11kW with accumulator
13. Punching and cutting type: hydraulic transmission, pre-punching, cutting after forming

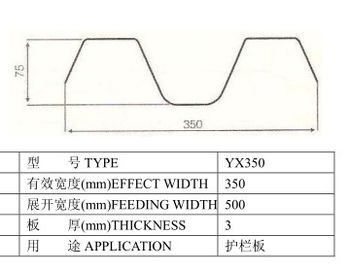

1 | Product type | two waves(W beam barrier) |
2 | Applicable Standard | GB JT/T281-2007(China), AASHTO M180(USA),RAL-RG620(German), Russian standard etc. |
3 | Material | hot rolled steel coils, Q235 or Q345 grade or other Steel Grades |
4 | Standard size | 3300/4130/4320mm ×306/310/312mm ×80/83/85 mm×2.55/2.67/2.75/3/4mm |
5 | Surface treatment | hot dipped galvanized |
6 | Zinc coating | 550(80 μ) / 610(85 μ) / 1100(160 μ) / 1200g/m ²(170 μ) or as per your request. |
Equipment:

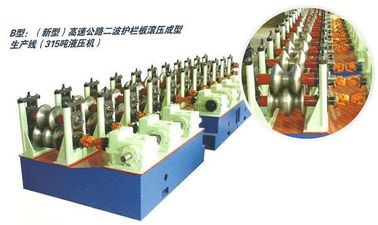

It includes 5T manual decoiler, driver device, leveling device, two sets of pre-punching device, main roll former (includes guide device), hydraulic cutter device, hydraulic system, control system (PLC), output table, etc.
Working flow:
decoil - feeding and correct - roll forming - punching hole cutting - output sheet
1) All the rollers and shafts are solid.They are made of high quality No.45 Steel.
2)We have experienced engineers with more than 10 years to offer the most popular solutions.
3) installation engineers can go to your site if needed
4)12 months maintenance and whole life technical support.
5)We cooperate with ,APL,CMA,EMC,MSC, and PIL etc, 32 big shipping companies.
Detailed Images

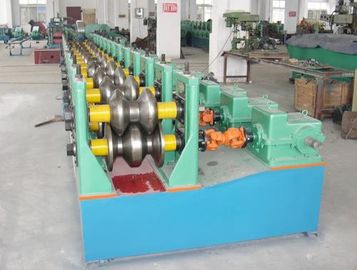

Name: Rollers
In order to get high quality product, our machine adopts welded steel frame structure, AC frequency conversion motor reducer drive, chain transmission, roller surfaces polishing, hard plating, heat treatment and chrome coating.
Roller chrome coated thickness: 0.05 mm
Roller material: Forging Steel 45# heat treatment, coated
Our Service
1. Installation and training:
a.If buyers visit our factory and check the machine, we will teach you how to install and use the machine, and also train your workers/technician face to face.
b.Without visiting, we will send you operation manual book and video to teach you to install and operate.
c.If buyer needs our technician to go to your local factory, please arrange board and lodging and
other necessary things.
2. After Sale Service
a.One year guarantee for whole machine.
b.24 hours technical support by email or calling
c.If there is any problem found of the machine, we will repair it for free in one year.
