Product Details:
|
| Material Thickness: | 1.5-2mm Steel | Forming Speed: | 3-15m/min |
|---|---|---|---|
| Roller Material: | GCr15 | Shaft Material: | 45# Steel |
| Main Motor Power: | 11.0Kw | Machine Weight: | 5000kg |
| High Light: | Glazed Tile Roll Forming Machine,Cold Roll Forming Equipment |
||
220mmWidth Profile Width Roll Forming Machinery For Door Frame 2mm Thickness Galvanized Steel
Technical Parameter
| Technical parameters: | |||||||
| 1 | Name of commodity & specification | XN-slat machine | |||||
| 2 | Main motor power | 3kw, 3 phase | |||||
| 3 | Hydraulic motor power | 3kw | |||||
| 4 | Hydraulic Pressure | 10-12MPa | |||||
| 5 | Voltage | 380V /3phase/ 50 HZ (or as your requirement) | |||||
| 6 | Control System | PLC Delta Inverter | |||||
| 7 | Main Frame | 300mm H-Beam | |||||
| 8 | Backboard Thickness | 14mm | |||||
| 9 | Chain Size | 20mm | |||||
| 10 | Feeding Material | color steel coils | |||||
| 11 | Feeding Thickness | 0.3-1.2mm | |||||
| 12 | Productivity | 8-12m/min | |||||
| 13 | Roll Station | 11 | |||||
| 14 | Roller Diameter | 70mm | |||||
| 15 | Roller material | 45# steel | |||||
| 16 | Cutter material | Cr12 , quenched | |||||
| 17 | Cr-Plating Size | 0.05mm | |||||
| 18 | Overall Size | 3000×800×1000mm | |||||
| 19 | Total Weight | 2T | |||||
| 20 | Components | Manual Uncoiler -------------------1 set Guiding Platform------------------1 set Coil Strip Leveler------------------1 set Main Machine of Roll Forming------1 set Electric-Motor---------------------1 set Cutting Device--------------------1 set Hydraulic Station------------------1 set PLC Control-----------------------1 set Supporter Table-------------------1 set |
|||||
| 21 | Workflow | Manual decoiling----feeding and guiding----roll forming----cut to length----run out table | |||||
| 22 | Package | nude in the container | |||||
| 23 | Minimum order quantity | 1 set | |||||
| 24 | Payment terms | T/T(30% T/T pay in advance, the remaining 70% pay before ship) | |||||
| 25 | Delivery time | 30 working days later after receiving the deposit | |||||
| All technical parameters can be changed, according to user's need. | |||||||
Working Flow
De-coiler—→level device—→main forming machine—→straightening—→hydraulic Punching —→hydraulic cutting—→ run out table
Machine Componnets
| Name | Quantity |
| Decoiler | 1 set |
| Level device | 1 set |
| Main forming machine | 1 set |
| Hydraulic punching | 1 set |
| Hydraulic cutting machine | 1 set |
| Cutting blades | 5 sets |
| Straightening | 1 set |
| PLC Control Panel | 1 set |
| Run out table | 2 sets |
Profile drawing

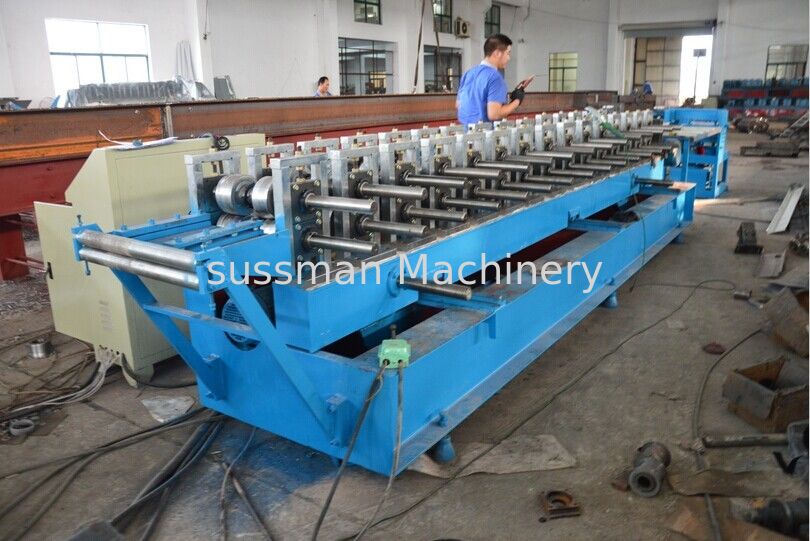

Machine pictures
