Double Layer Roll Forming Machine for Wall Panel and Tile Roof Panel with PLC Control

Double Layer Roll Forming Machine for Wall Panel and Tile Roof Panel with PLC Control
Double Layer Roll Forming Machine for Wall Panel and Tile Roof Panel with PLC Control Double Layer Roll Forming Machine for Wall Panel and Tile Roof Panel with PLC Control Double Layer Roll Forming Machine for Wall Panel and Tile Roof Panel with PLC Control Double Layer Roll Forming Machine for Wall Panel and Tile Roof Panel with PLC Control

Large Image :  Double Layer Roll Forming Machine for Wall Panel and Tile Roof Panel with PLC Control

Product Details:
Place of Origin: Wuxi Jiangsu China
Brand Name: Sussman
Certification: CCC, SGS, ISO9001, CE
Model Number: SS-DL
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: negotiable
Packaging Details: Standard packing
Delivery Time: 55 - 65 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 10 sets per month

Double Layer Roll Forming Machine for Wall Panel and Tile Roof Panel with PLC Control

Description
Material: Galvanized Steel And Colorcoated Steel Coil Forming Speed: 12-15m/min
Roller Station: 16 - 18 Stations Main Motor Power: 7.5Kw
Transmission: Single Chain Power Supply: 220V 60HZ 3phase
Material Thickness: 0.4-0.8mm Hydraulic Cutting Power: 4kw
High Light:

Slip Roll Forming Machine

,

Automatic Vacuum Forming Machine

Roll Forming Machine for Wall Panel and Tile Roof Panel with PLC Control





Technical Data



Number Items UnitType RF-DL
1 Steel Thickness mm 0.25-0.8mm, coil width 1220 and 1000mm
2 Forming Speed m/min 8-12
3 Roller stands stand 18 stands bottom layer; 14 stands top layer
4 Roller Material mm 45# steel, coated with chrome quenching
  Shaft material and diameter mm Ф76 45# steel, coated with chrome
5 Main Motor Power Kw 7.5
6 Hydraulic cutting Power Kw 4
7 Hydraulic pressure Mpa 12
8 Power Supply   220V, 60HZ,3 phase
9 Tolerance mm 1.5
10 Material of cutting   Cr12mov HRC60-62
11 Control system   PLC with touch screen
12 Machine net weight T 8



Main Components



Machine Component Quantity
5 ton passive decoiler 1Set
Main roll forming machine 1Set
Hydraulic station 1Set
Cutting device 1Set
Finished products tabel- 2Set
PLC control system 1Set
Spare parts 1Set


Advantage for



1. Reasonable Price

2. High Quality

3. 12 Months Warranty

4. More Than 10 Years Experience

5. Durable

6. Reliable



Applications



Wall Panel, Roof Panel, Tile Roof Panel



Working Flow



Decoiler ---- Feeding --- Roll Forming ---- Cutting ---- Run out table



Double Layer Roll Forming Machine for Wall Panel and Tile Roof Panel with PLC Control 0



Profiles of Wall and Roof Panel



Double Layer Roll Forming Machine for Wall Panel and Tile Roof Panel with PLC Control 1

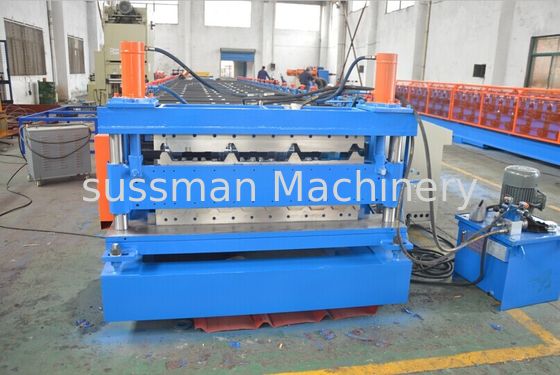

Machine photo



Double Layer Roll Forming Machine for Wall Panel and Tile Roof Panel with PLC Control 2



Double Layer Roll Forming Machine for Wall Panel and Tile Roof Panel with PLC Control 3



Double Layer Roll Forming Machine for Wall Panel and Tile Roof Panel with PLC Control 4
