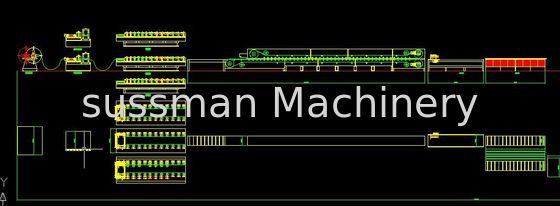

PU Sandwich Panel Line for Exterior Wall Aluminium Warm Keeping Panel

PU Sandwich Panels for Exterior Wall Aluminium Warm Keeping Panel


Primary technology parameters product line:

• PU foam thickness: 16mm, aluminum and galvanized coil thickness 0.27-0.5mm
• Linear Speed of production: 5-10m/min
• Maximum Roller Forming speed:15 m/min
• Reciprocating times of injection head per minute　<60
• Production type: totally continuous production with PLC controlling
• Composite structure:position fixed by double rubber tracker
• Foaming system: totally automatically continuous foaming, quantity of foaming could be stepless adjustable
• Main Power of production 65KW
• Cutting: pneumatic piston driving, non-stop cutting via sliding table
• Electronic controlling system: full-frequency PLC controlling system.

Roll Forming machine

Each Roller forming machine consists of the decoiler, main roller forming machine is equipped outside of the line, which is used to form on the coil of color steel of max500mm in width and 0.35~0.75mm in thickness while exerting certain pressing force.

Main Roll Forming Machine

Coil width: max 500mm effective width: 360 and 200mm
working speed: 12-15m/min
roll station: max 21 stations
material of roller: grade 45 steel, polished and coated with chrome
material of main shaft:45﹟forge steel diameter roller: Ф60mm
main power: max 7.5KW
forming thickness: 0.4mm—0.8mm , zinc and color steel, G250Mpa
Transmission: by single Chains 1.2inch
feeding and guide: surface polished and coated with chrome
machine drive parts adopt protect cover
machine adopt new station with chrome
size of main machine: Approx.8750x1500x 1200(mm) L x W x H
weight: about max 4000Kgs
color of machine: blue (also can choose by customer request)
machine should be with four legs (made from metal) in 350mm


One Set of PU Foaming Machine

One set of PU two component Liquid mixing and injecting section for foaming : it adopt high pressure pump. It have the temperature control system and material-level monitoring system. The tank of the material is about 300L./Two tanks. Injecting proportion is A:B=1:125(A :black B:white ).
