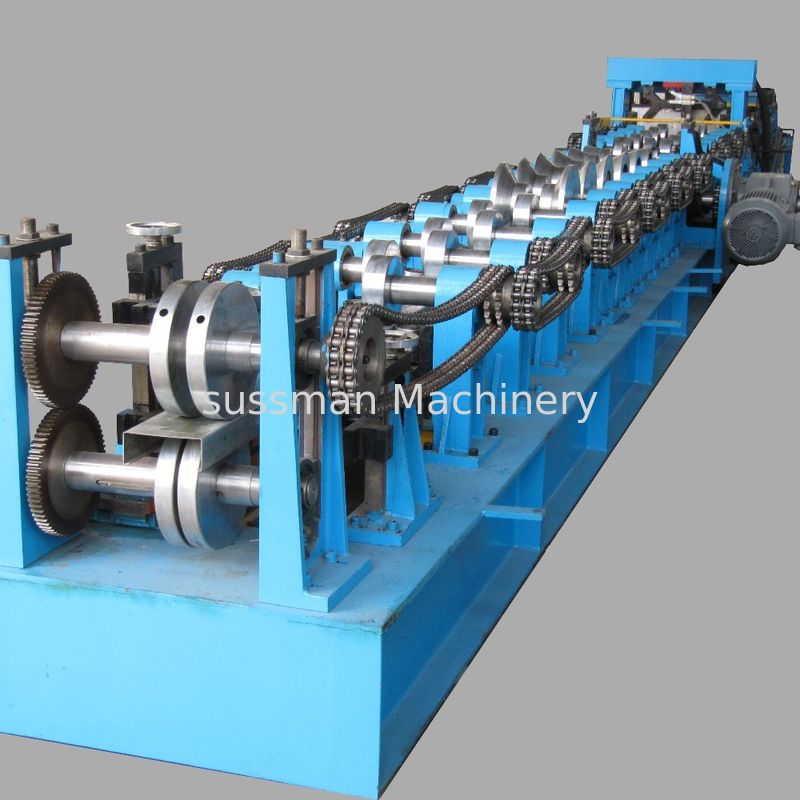

Cold Steel Strip Profile C Z Purlin Roll Forming Machinery With Hydraulic Cutting
One machine can produce differenct C/Z Purlins throught simple manual stepless adjustment, when to produce different profiles, no need to change the forming rollers. In the process, machine adopt automactic control model, it can auto pumch, cut, forming based on inputting length of purlin, portrait hole distance, quantity, etc datas.
This kind of machine can produce C , Z two profiles, through the exchange side of the roller up and down position to achieve C , Z purlin conversion , just need about half an hour to achieve saving time. This machine also can automatically adjust roller horizontal distance to achieve C or Z purlins pf the width with high precision , but also save time to increase production.
C/Z purlin roll former make up of decoiler, feeding, leveling, 2 sets hydraulic punching device, hydraulic cutting, speediness interchangeable forming machine, PLC control system, hydraulic stations, runout tables.
C Z Purlin Technical Parameter
Width of purlin
Main motor power
Hydraulic station power
Thickness of material
Diameter of principal axis
380V 3phase 50HZ
Material of roller
CGr15 bearing steel HR58-60
Processing precision within
Material of cutting blade
Cr12 mould steel
Kind of drive
PLC and Inverter
Decoiler 1 set
Main roll forming machine 1 set
Control system 1 set Run out table 2 units Hydraulic station 1 set Hydraulic cutting 1 set Levelling device 1 unit Punching device 1 unit
Each part of machine
a.Payment type: 30% T/T for advance payment and balance should be paid before delivery.
b.Delivery time: 75 days after received advance payment. Guarantee:
1: Guaranteed against malfunctions due to manufacturing defects for 1 year after date of purchase. Repairs will be made free of charge.
2: Repairs will not be performed free of change even during the guarantee period in the follow circumstances
- Damage occurs due to a natural disaster
- Malfunction occurs due to user error
- Malfunction occurs due to modifications
- Malfunction occurs due to further movement or shipment after installation.
