Place of Origin: | China |
---|---|
Brand Name: | Sussman |
Certification: | CE; ISO9001 |
Model Number: | CZ |
Minimum Order Quantity: | 1 set |
Price: | USD 14500-25000 Per Set |
Packaging Details: | Naked packing |
Delivery Time: | 30 days |
Payment Terms: | T/T |
Supply Ability: | 2 sets per month |
Thickness: | 1.5-3.0 Mm Galvanized Steel | Forming Speed: | 12-15 Meters / Min |
---|---|---|---|
Roller Stations: | 20 Stations | Roller Material: | Gcr15, Quench HRC58-62 Plated Chrome |
Driven System: | Gearbox Drive | Main Motor Power: | 11KW |
Control System: | PLC | Tolerance: | ±1.5mm |
Weight: | 10 T | Dimension: | 10.3×1.5×1.2 |
High Light: | c purlin roll forming machine,c z purlin roll forming machine |
1.5-3.0mm Galvanized Steel C Purlin Roll Forming Machine With Gearbox Drive
Technical Parameter
1. Products specification: C80-300. thickness: 1.5-3mm. Yield strength: 250Mpa max.
2. Running speed: 0-12m/min.
3. Main shaft material: 45# steel, Q&T treatment
4. Main axis diameter: 75mm
5. Roller material: GCr15 bearing steel, Qunching heat treatment, surface black finish. Rigidity:HRC58-62.
6. Roller groups: 15 groups main rollers
7. Levelling roller: 7 rollers levelling device
8. Main motor power: 11KW;
9. Hydraulic station motor power: 5.5KW
10. Punching station: 2 punch device
11. Electrical control system: Whole line adopted PLC control, Panasonic PLC.
12. Cutting method: Hydraulic powered, automatically cut to length after roll forming
13. Cutting mold material: Cr12 quenching treatment
14. Uncoiling: by 5T Manual uncoiler
15. Machine dimension: 8m L X 0.88 m W X 1.0 m H
16. Machine weight: about 8 tons.
Working Flow
Decoiler—→level device—→main forming machine—→straightening—→hydraulic Punching —→hydraulic cutting—→ run out table
Machine List
S.N | Equipment name | Quantity |
1 | 3T manual uncoiler | 1 set |
2 | Levelling device | 1 unit |
3 | Punching station (including punching mould) | 1 unit |
4 | Main roll forming machine | 1 set |
5 | Main drive | 1 unit |
6 | Cutting unit | 1 set |
7 | Hydraulic station | 1 set |
8 | Control system | 1 set |
9 | Out put rack | 1 set |
10 | Cutting mould | 3 sets |
|

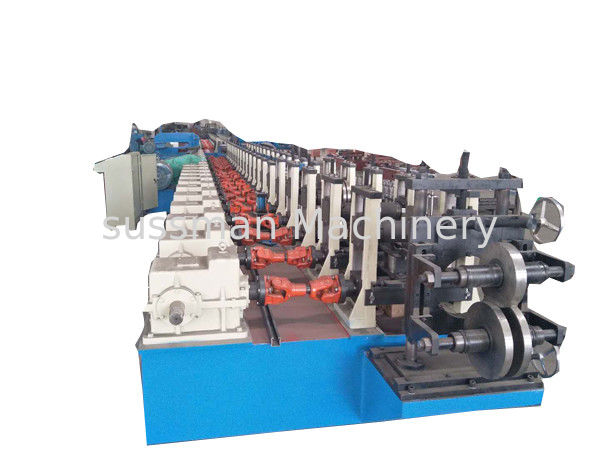

Pictures of the product
