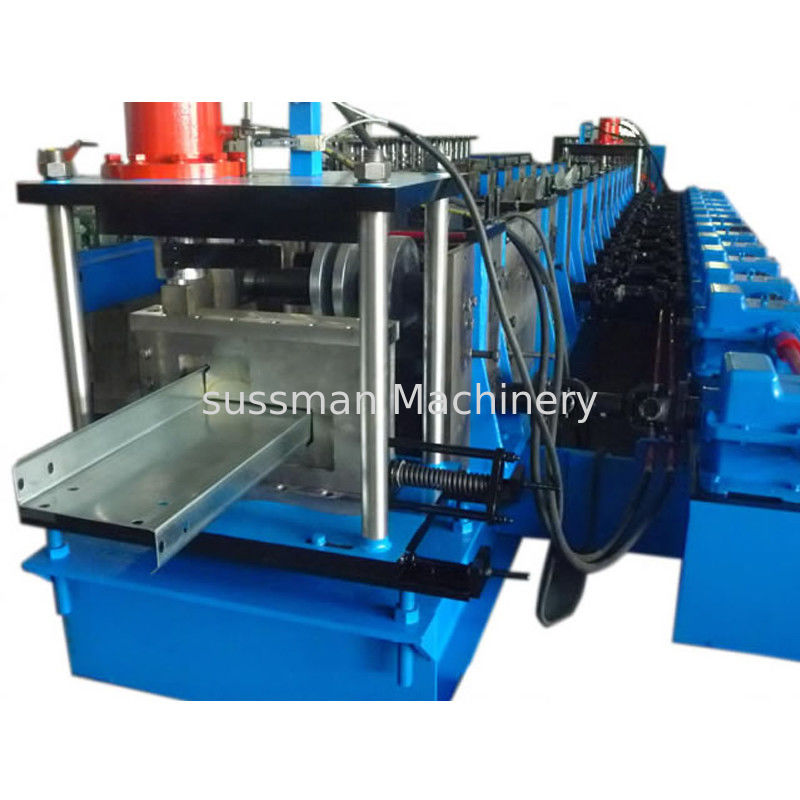

PLC Control 20 Stations CZ Purlin Roll Forming Machine With 12-15m / Min Speed

PLC Control 20 Stations CZ Purlin Roll Forming Machine With 12-15m / Min Speed
PLC Control 20 Stations CZ Purlin Roll Forming Machine With 12-15m / Min Speed PLC Control 20 Stations CZ Purlin Roll Forming Machine With 12-15m / Min Speed PLC Control 20 Stations CZ Purlin Roll Forming Machine With 12-15m / Min Speed PLC Control 20 Stations CZ Purlin Roll Forming Machine With 12-15m / Min Speed PLC Control 20 Stations CZ Purlin Roll Forming Machine With 12-15m / Min Speed PLC Control 20 Stations CZ Purlin Roll Forming Machine With 12-15m / Min Speed PLC Control 20 Stations CZ Purlin Roll Forming Machine With 12-15m / Min Speed PLC Control 20 Stations CZ Purlin Roll Forming Machine With 12-15m / Min Speed PLC Control 20 Stations CZ Purlin Roll Forming Machine With 12-15m / Min Speed PLC Control 20 Stations CZ Purlin Roll Forming Machine With 12-15m / Min Speed PLC Control 20 Stations CZ Purlin Roll Forming Machine With 12-15m / Min Speed PLC Control 20 Stations CZ Purlin Roll Forming Machine With 12-15m / Min Speed PLC Control 20 Stations CZ Purlin Roll Forming Machine With 12-15m / Min Speed PLC Control 20 Stations CZ Purlin Roll Forming Machine With 12-15m / Min Speed PLC Control 20 Stations CZ Purlin Roll Forming Machine With 12-15m / Min Speed
Basic Information
Place of Origin: China
Brand Name: Sussman
Certification: CE; ISO9001
Model Number: CZ
Minimum Order Quantity: 1 set
Price: USD 35,000 -55000 Per Set
Packaging Details: Naked packing
Delivery Time: 30 days
Payment Terms: T/T
Supply Ability: 2 sets per month
Get Best Price Contact Now Chat Now
  • Detail Information
  • Product Description
Material: PI; PPGI Thickness: 1.5-3.0 Mm
Forming Speed: 10m/min Roller Stations: 20 Stations
Roller Material: Cr15 To Be Quenched Main Motor: 11kw
Dimension: 10.3×1.5×1.2m Tolerance: ±1.5mm
Cutting Blade Material: Cr12mov Material Of The Principal Axis: Excellent Steel No.45 To Process.75mm
Weight: 10 T
High Light:

c purlin roll forming machine

,

z purlin roll forming machine

PLC Control CZ Purlin Interchangeable Roll Forming Machine 20 Stations With 12-15m/min Speed



Description

Purlin is widely using in industry building. The machine can forms different size through change some rollers position. And also can punch and cut automatically as setting.

Technicial Speciafication



Material PI; PPGI
Thickness 1.5-3.0 mm
Forming Speed 10m/min
Roller stations 20 stations
Roller material Cr15 to be quenched
Main motor 11kw
Hydraulic cutting power 7.5kw
Control system PLC
Dimension 10.3×1.5×1.2m
Driving system Gear box drive, about 14 pieces
Tolerance ±1.5mm



Working Flow

Decoiler—→level device—→main forming machine—→straightening—→hydraulic Punching —→hydraulic cutting—→ run out table

PLC Control 20 Stations CZ Purlin Roll Forming Machine With 12-15m / Min Speed 0

Machine List



3 ton passive Uncoiler 1 set
Main roll forming machine 1 set
Control box 1 unit
Hydraulic station 1 unit
Out table 1500mm 2 units
Hydraulic punching and cutting device 2 units
Hydraulic cutting device 1 unit



Main Components of the Machine

1. Hydraulic Decoiler with Breaking device is equipped for coil processing.

2. Leveler

3. Hydraulic punching system

4. Pre Shearing System

5. Rollformer with tooling

6. Run Out Table or automatic stacking device

7. Panasonic (Japan) PLC and MCGS touch screen are used for data processing and setting.

8. Roll forming speed is 8 - 12m / min.

Profiles

C PURLIN SIZES



Width: C80-300

Thickness: 1.5-3.0mm

Height: 40-100mm





Control Box: Panasonic Brand



(1) Power supplier: 415V, 50 Hz, 3Phase (adjusted with the requestment)

(2) Length & quantity measurement automatically;

(3) Length & quantity controlled by PLC,

(4) Length inaccuracy can be amended easily.

(6). Control panel: Button-type switch and touch screen

(7) The language in the touch screen: English and Chinese

(8) Unit of length: millimeter (switched on the control panel)



Out Table



Length : 2m

Quantity: 2 units





Pictures of the product:

PLC Control 20 Stations CZ Purlin Roll Forming Machine With 12-15m / Min Speed 1

PLC Control 20 Stations CZ Purlin Roll Forming Machine With 12-15m / Min Speed 2

PLC Control 20 Stations CZ Purlin Roll Forming Machine With 12-15m / Min Speed 3



Tag:

c purlin roll forming machine,

z purlin roll forming machine,

c z purlin roll forming machine
