Product Details:
|
| Material Thickness: | 1.2-2mm | Raw Material: | Galvanized Steel And Black Steel Sheets |
|---|---|---|---|
| Working Speed: | 4-5meters / Min | Forming Steps: | 20 Stations |
| Material Of Roller: | Gcr15, Quench HRC58-62 Plated Chrome | Material Of Shaft: | 45# Advanced Steel (Diameter: *90mm), Thermal Refining |
| Driven System: | Chain Driven, Shafts Diameter 100mm | Main Power With Reducer: | 22KW WH Chinese Famous |
| Cutting: | Hydraulic Cutting Cr12mov | Material Of Cutting Knife: | Cr12Mov, Quench HRC58-62 |
| Hydraulic Station Power: | 11KW Wuxi Wanshen Famous Chinese Brand | ||
| High Light: | cable tray machine,plate rolling machine |
||

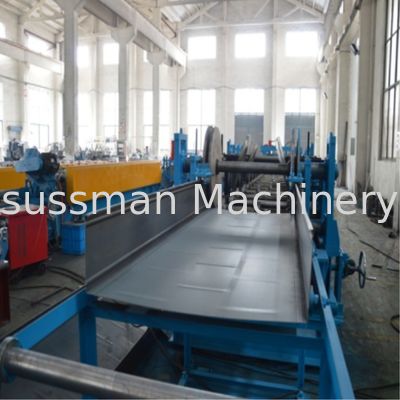

Hydraulic Punching Cable Tray Roll Forming Machine , Rolling Form Machine Cr12mov
Machine list
| NO. | Name | Quantity |
| 1 |
5 ton hydraulic de-coiler |
1 set |
| 2 |
Roller Leveller |
1 set |
| 3 |
Servo feeding machine |
1 set |
| 4 |
Hydraulic punching machine |
1 set |
| 5 |
Punching |
2 sets |
| 6 |
Roll forming machine |
1 set |
| 7 |
PLC system |
1 set |
| 8 |
Pre-cutting device |
1 set |
| 9 |
Collecting tables 3m |
2 sets |
| 10 |
Toolbox |
1 set |
| 11 |
Spare Parts |
1 set |
Machine process
Decoiler- leveling—servofeeding---Hydraulicpunching ---Cutting --Roll forming- -Outtable
Profiles
Punching Moulds description
As for the profiles, total need 2 sets of punching moulds, when need to punching the first hole drawing, change the punching mould 1, when punching the second hole drawing, change the punching mould 2, ect. When the punching heads broke, they can be removed, and changed by the new punching heads.
Punching moulds material: Cr12Mov Quenching HRC58-62degree Shanghai NO.5 Steel (China best brand for steel)
