Product Details:
|
| Thickness: | 1.2-2.0mm Galvanized Steel Or Blank Steel | Width Of The Profile: | 100-600mm Adjustable |
|---|---|---|---|
| Main Power: | 22KW With Reducer | Rolling Speed: | 4m/min |
| Electric Source: | 380V, 50HZ,3 Phase | Roller Stations: | 20 Stations |
| Cutting: | Hydraulic Cutting Cr12mov | Hydraulic Station: | 11KW |
| PLC: | Panasonic, Japan | Sheet Length: | 2000-6000mm |
| High Light: | metal forming machine,plate rolling machine |
||
Sheet Length 2000-6000mm Punching Press Cable Tray Machine Gear Box Driven
Character of main structure
a) It is very easy to install the equipment and suitable for producing in the factory.
b) All the components of machine are from brand-famous enterprise so that they ensure the machine normal function very effectively.
c) The structure is simple and the appearance of the machine is beautiful because we adopt the shape-steel structure and most of the connecter is screw which make the machine flexible and stronger.
Technical Parameter
Suitable Plate Material: thickness:1.2-2mm
Raw material: Galvanized steel and black steel sheets
Working Speed: 4meters / min
Material of Roller: Gcr15, Quench HRC58-62 Plated Chrome
Material of Shaft: 45# Advanced Steel (Diameter: *90mm), thermal refining
Driven system: Gear Box, shafts diameter 100mm
Cutting: Hydraulic Cutting Cr12mov
Material of Cutting Knife: Cr12Mov, Quench HRC58-62
Hydraulic Station Power: 11KW Wuxi Wanshen Famous Chinese Brand
The whole machine is controlled by industry computer-PLC.
PLC--Panasonic, Japan
Touch Screen—Beijing Kunlun Encoder--Omron, Japan
Electric parts--Schneider
Adjust the height by the motors and the rails, controlled by the PLC
Main Machine
|
Name |
Quantity |
|
5 ton passive de-coiler |
1 set |
|
Roller leveller |
1 set |
| Servo feeding machine | 1 set |
| Roll Forming Machine | 1 set |
|
Punching Press machine |
1 set |
|
Punching moulds |
1 set |
|
Post-cutting |
1 set |
| PLC Control System | 1 set |
|
Out tables |
1 set |
|
Spare parts |
1 package |
| Yangli JH-200 tons Press machine (optional) | 1 set |
Technological process
Uncoil—leveling—— servo feeding---Punching —--Roll forming——Cutting——Out table
Machine Profile for Reference

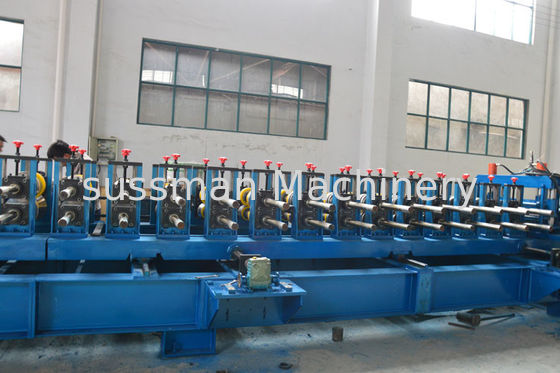

Machine Picture
Our advantage
a. Within the ONE-YEAR period, we could supply you the replacement parts free of charge for any damaged parts caused by quality problems.
b. Customers'design, color and logo are also accepted! Our specialized experts and skilled workers keep devoting their hard working to ensure the machine with high quality.
c. Our machines exported to the Southeast Asia, Middle East, Africa, North & South America more than eighty countries and regions.We have professional team, complete production system, high quality products, good service.
d. Schneider PLC system:Ensuring high accuracy and easy to operate!Full Automatic: Just input length of the sheets and numbers of the piece you need, then the machine will start to work as your order.
