0.7 - 1.0mm Thickness Cable Tray Roll Forming Machine With 18.5 Kw Power
Machine list
No. | Name | Quantity |
1 | 5 ton hydraulic de-coiler | 1 set |
2 | Roller Leveller | 1 set |
3 | Servo feeding machine | 1 set |
4 | Punching Press machine JH21-200 | 1 set |
5 |
Extension Punching moulds (100mm,150mm,200mm,300mm,400mm,500mm,600mm) |
6 sets |
6 | Notch and head holes device | 2 sets |
7 | Main punching device | 1 set |
8 | Height Side punching dies (50mm&60mm, 80mm, 100&110mm) | 6 sets |
8 | Roll forming machine | 1 set |
9 | Control box system | 1 set |
10 | Cutting blades | 6 sets |
11 | Collecting tables 2meters | 2 sets |
12 | Toolbox | 1 set |
13 | Spare Parts | 1 set |
Parameters
Thickness | 0.7-1.0mm |
Height | 50, 60, 80,100, 110mm |
Width | 100mm, 200mm, 300mm, 400mm, 500, 600mm |
Material | Galvanized steel and black steel |
Sheet length | 2000—6000mm |
Working Speed | 4-5meters / min |
Forming Steps | about 25 stations |
Material of Roller | Gcr15, Quench HRC58-62 Plated Chrome |
Material of Shaft | 45# Advanced Steel |
Driven system | chain driven |
Main Power | 18.5KW |
Cutting | Hydraulic Cutting Cr12mov |
Material of Cutting Knife | Cr12Mov, Quench HRC58-62 |
Hydraulic Station Power | 7.5KW |

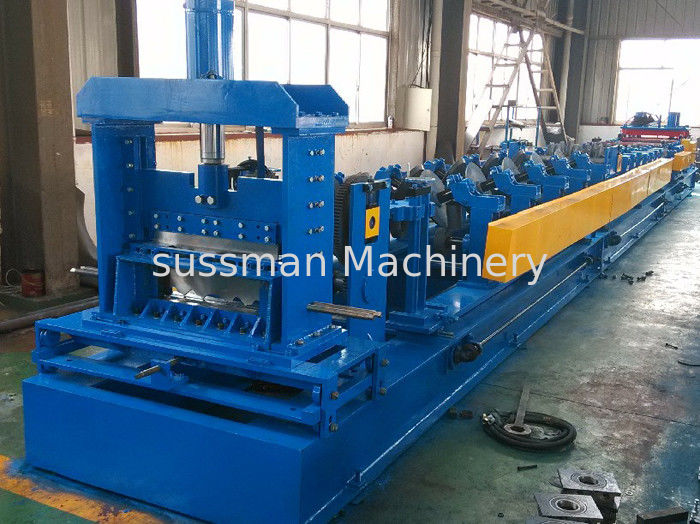

Machine pictures
Application
A cable tray system, is a unit or assembly of units or sections and associated fittings forming a rigid structural system used to securely fasten or support cables and raceways." Cable trays are used to hold up and distribute cables. Cable tray roll forming machine is special designed for its production.
