Sussman Machinery (Wuxi) Co., Ltd.
| Place of Origin: | Wuxi, China |
|---|---|
| Brand Name: | Sussman |
| Certification: | CE, SGS, ISO |
| Model Number: | RF-ST |
| Minimum Order Quantity: | 1 set |
| Price: | USD69500 Per set |
| Packaging Details: | Film and steel |
| Delivery Time: | 60 days after deposit |
| Supply Ability: | 10 sets/month |
| Material Thickness: | 1.5-2mm Galvanized Coil | Uncoiler: | 3 Tons Manual |
|---|---|---|---|
| Servo Feeder Power: | 1.5Kw | Rolling Speed: | 5m--10m/min(not Including Punching) |
| Roller Stations: | 12 Stations | Roller Material: | GCR15 Quenched 58°-62°,chromed |
| Decelerating Motor: | BWD14-43-37KW | Main Motor Power: | 22kw |
| Main Shaft: | 120mm, 45﹟forge Steel | Weight: | About 15T |
| High Light: | corrugated roll forming machine,highway guardrail roll forming machine |
||

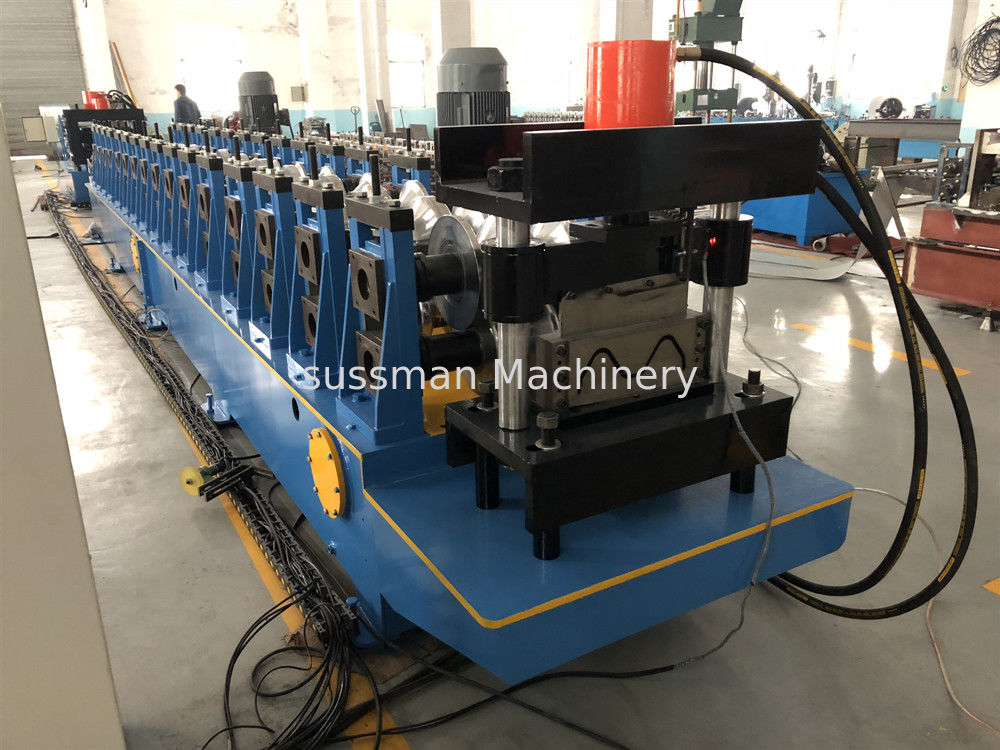

10m/min 2 inches Guide Rail Roll Forming Machine Material Thickness 1.5-2mm Galvanized Coil
Technical Parameter
|
Material of coil |
Material Thickness |
1.5-2mm galvanized |
|
|
Un Coiler |
3 tons manual |
|
Levelling device |
7 rolls |
NC300 |
|
Servo feeder |
Power |
1.5kw |
|
Punching |
Hydraulic punching |
2 sets of punching dies |
|
Forming system |
Rolling Speed |
10 m/min |
|
|
Roller Stations |
12 stations |
|
|
Roller Material |
45# Steel with quenching 50mm shaft |
|
|
Maim Motor Power |
7.5 kw |
|
|
Hydraulic cutting Power |
4 kw |
|
Cutting |
Material Of Cutting |
CR12 with quench treatment |
|
|
Hardness |
HRC58-62 |
|
|
Tolerance |
+-1.5mm |
|
Electrical control system |
Electric Source |
380V, 50HZ,3 phase |
|
|
Control System |
PLC (Panasonic) as list in the note |
|
|
Weight |
About 2.5 tons |
|
|
Way Of Drive |
1 inch single chain |
|
|
Size of machine |
Length 4500mm* Width 600mm* Height 800mm |
Flow Chart
Uncoiler—Levelling—Servofeeding—Hydraulicpunching—Rollforming—Cutting—Outside table
Machine Components
|
3 ton passive decoiler |
1 set |
|
Levelling device |
1 set |
|
Servo feeding device |
1 set |
|
Hydraulic punching |
2 sets |
|
Main roll forming machine |
1 set |
|
PLC Control box |
1 unit |
|
Hydraulic station |
1 unit |
|
Hydraulic cutting |
1 unit |
|
Out tables |
1 unit |
Profile Drawing
