Galvanized Coil One Side Wall Panel Roll Forming Machine With 6 Stations

Large Image : Galvanized Coil One Side Wall Panel Roll Forming Machine With 6 Stations

Product Details:

Place of Origin:	Wuxi, China
Brand Name:	Sussman
Certification:	CE, SGS, ISO
Model Number:	OS

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	USD5000-6000 PER SET
Packaging Details:	Film and steel
Delivery Time:	50 days after deposit
Supply Ability:	5 SETS PER MONTH

Contact Now

Galvanized Coil One Side Wall Panel Roll Forming Machine With 6 Stations

Description

Material:	0.3-1.0mm PPGI	Forming Speed:	10-12 M/min
Roller Stands:	About 6 Stations	Roller Material:	Gcr15 Steel With Quenching
Specification:	One Side Wall Panel Machine	DRIVE System:	1 Inch Single Chain
Shaft Material:	45# Steel Diameter 75mm Shaft
High Light:	metal forming machine , plate rolling machine

Galvanized Coil One Side Wall Panel Roll Forming Machine With 6 Stations

Technical Data

	Items	Specifications
Material of coil	Material Thickness	0.3-1.0mm PPGI
Forming system	Rolling Speed	10-12 m/min
	Roller Stations	About 6 stations
	Roller Material	Gcr15 Steel with quenching
	Shaft Material	45# Steel Diameter 75mm shaft
	Main Motor Power	0.75 kw
	Voltage	220v, 60hz, 3phases
	Weight	About 800kgs
	Way Of Drive	1 inch single chain

Technological process

Uncoiling—Feeding&Leveling ---Roll forming—Cutting—Products collecting

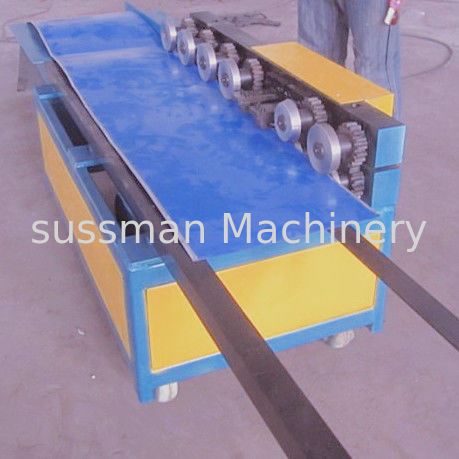

Galvanized Coil One Side Wall Panel Roll Forming Machine With 6 Stations 0

Profile Drawing

Galvanized Coil One Side Wall Panel Roll Forming Machine With 6 Stations 1
