Steel Silo Omega Post Roll Forming Machine 12m / Min Speed 1.5-6mm Thickness

China Steel Silo Omega Post Roll Forming Machine 12m / Min Speed 1.5-6mm Thickness supplier
Steel Silo Omega Post Roll Forming Machine 12m / Min Speed 1.5-6mm Thickness supplier Steel Silo Omega Post Roll Forming Machine 12m / Min Speed 1.5-6mm Thickness supplier Steel Silo Omega Post Roll Forming Machine 12m / Min Speed 1.5-6mm Thickness supplier Steel Silo Omega Post Roll Forming Machine 12m / Min Speed 1.5-6mm Thickness supplier Steel Silo Omega Post Roll Forming Machine 12m / Min Speed 1.5-6mm Thickness supplier Steel Silo Omega Post Roll Forming Machine 12m / Min Speed 1.5-6mm Thickness supplier Steel Silo Omega Post Roll Forming Machine 12m / Min Speed 1.5-6mm Thickness supplier Steel Silo Omega Post Roll Forming Machine 12m / Min Speed 1.5-6mm Thickness supplier Steel Silo Omega Post Roll Forming Machine 12m / Min Speed 1.5-6mm Thickness supplier Steel Silo Omega Post Roll Forming Machine 12m / Min Speed 1.5-6mm Thickness supplier

Large Image :  Steel Silo Omega Post Roll Forming Machine 12m / Min Speed 1.5-6mm Thickness

Product Details:

Place of Origin: China
Brand Name: SUSSMAN
Certification: CE, SGS, ISO9001
Model Number: SM-SSP

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: USD295000-355000 per set
Packaging Details: Standard package with film, plastic and steel wire. (or customized)
Delivery Time: 60-90 working days after payment
Payment Terms: L/C, T/T, MoneyGram
Supply Ability: 10 sets per month
Contact Now
Detailed Product Description
Material: Galvanized Steel Sheet And Black Steel Material Thickness: 1.5-6mm
Forming Stations: 20 Stations Roller Material: Gcr15 Steel With Quenching 80mm Shaft
Dirve System: Gearbox Drive Power Supply: 380V, 50Hz, 3Phase
Main Motor Power: 11KW Certification: CE,ISO,CE/ISO9001,Ce Bv Iso Sgs,CE/ISO
Coil Weight: 3T,5T,10 Tons Warranty: 2 Years
After-sales Service Provided: Engineers Available To Service Machinery Overseas Usage: Steel Construction,Building
Machine Size: 35000mm*1000mm*1200mm Power(w): 90KW
High Light:

plate rolling machine

,

tube forming machine

1.5mm-6mm Omega Steel Silo post roll forming machine







 Technical Parameter





Item NO.



      Description



          Offered Specification

1.0

 Roll forming machine



1.1

Rolling speed

up to 12m/min(not include cutting time)

1.2

Rolling thickness

1.5-6mm

1.3

Raw material

Galvanized steel sheet or black steel

1.4

dimension

22000×1000×1200(mm)

1.5

Effective width

200mm

1.6

Roller stations

20 stations

1.7

Roller material

 Gcr15 steel, coated with chrome, Quenching

1.8

Shaft diameter

Φ80mm ,material is 45# forge steel

1.9

Transmission

Gearbox

1.10

Material of chain

45# forged steel with frequency quenching, 12A

1.11

Material of cutting

Cr12Mov with quench HRC58-62°

1.12

Cutting Tolerance

6m+-1.5mm





 Main Components



S.N

    Equipment Name

Quantity

1

10T hydraulic De-coiler

1 set

2

Feeding&Leveling device

1 set

3

Servo feeding device 200mm

1 unit

4

600 tons Punching Press machine

1 unit

5

Main roll forming machine

1 set

6

Cutting holder

1 set

7

Hydraulic station

1 set

8

Control system ( including control box)

1 set

9

Out tables

2 units

10

Spare parts

1 package

16

Cutting dies

1 set

17

Punching die set

2 sets









Working Flow of Roll Forming Machine



Decoiler----feedingwithguide------Punching------Rollforming----Punching&Cutting----Products collecting





Steel Silo Omega Post Roll Forming Machine 12m / Min Speed 1.5-6mm Thickness

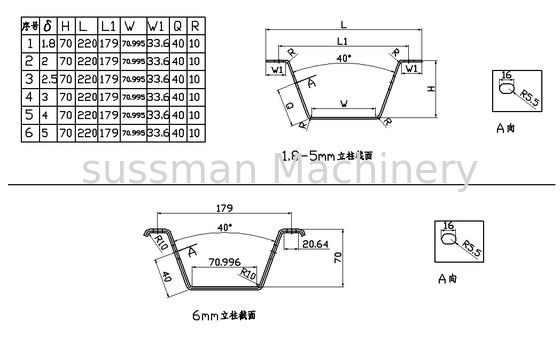

Profile of product



Steel Silo Omega Post Roll Forming Machine 12m / Min Speed 1.5-6mm Thickness

Punching Layout







Steel Silo Omega Post Roll Forming Machine 12m / Min Speed 1.5-6mm Thickness





Main Machine pictures









Decoiler

Steel Silo Omega Post Roll Forming Machine 12m / Min Speed 1.5-6mm Thickness



Feeding&leveler

Steel Silo Omega Post Roll Forming Machine 12m / Min Speed 1.5-6mm Thickness



Steel Silo Omega Post Roll Forming Machine 12m / Min Speed 1.5-6mm Thickness



Roll forming machine

Steel Silo Omega Post Roll Forming Machine 12m / Min Speed 1.5-6mm Thickness

Steel Silo Omega Post Roll Forming Machine 12m / Min Speed 1.5-6mm Thickness



Auto stacker



Steel Silo Omega Post Roll Forming Machine 12m / Min Speed 1.5-6mm Thickness



After-sale Serive

   - The seller take responsibility to installation and commissioning of the equipment and free training. After machine arrive the destination, by the request of the buyer , the seller will provide 1 technical engineer to guide installation and training , and the buyer should give the technical person with full cooperated.
   - Installation period: about 5 days after the complete preparation by the buyer such as the foundation and all necessary accessories.
   - Training time: 5 days.
   - Before departure of the engineers from seller, the buyer should pay for installation and commissioning fee 100$/day to the point account of the seller. The two-way ticket,visa, food, hotel , the translator and insurance are all should provide by buyer with full responsibility.
   -The seller supply technical data (including forming mould drawing, electrical elements drawing and equipment drawing etc.)







Company Profile



   Sussman Machinery manufacturing Co., Ltd. is specialized in building materials of light steel structure. Since the factory founded 10 years before, it always designs and produces various type profile

of roll forming machine.

   The main products of factory is Roller shutter door, PU sandwish panel line, pre-painted steel forming machine, Racking roll forming machine, the cable tray roll forming machine, Glazed Tile forming machine, Automatical C/Z Purlin forming machine, Floor Deck forming machine, Guardrail forming machine, Down

Pipe forming machine, the whole carriage plate for car beam unit, Steel storage unit, etc. The products

are widely used in warehouse, factory buildings, supermarket, Nursing homes, villas and other

construction projects, Our factory can meet the construction enterprises, automobile industry, Iron and

steel production enterprises' growing demands.

   Sussman machinery is located in Wuxi city, Jiangsu province which is close to Shanghai, It's about half an hour's journey. We enojoy the convenient transportation and advantageous location which supply good business opportunities for the buyers home and abroad.
