20m/Min 3 Waves Crash Barrier Roll Forming Machine With Touch Screen

20m/Min 3 Waves Crash Barrier Roll Forming Machine With Touch Screen
20m/Min 3 Waves Crash Barrier Roll Forming Machine With Touch Screen
20m/Min 3 Waves Crash Barrier Roll Forming Machine With Touch Screen 20m/Min 3 Waves Crash Barrier Roll Forming Machine With Touch Screen 20m/Min 3 Waves Crash Barrier Roll Forming Machine With Touch Screen 20m/Min 3 Waves Crash Barrier Roll Forming Machine With Touch Screen 20m/Min 3 Waves Crash Barrier Roll Forming Machine With Touch Screen 20m/Min 3 Waves Crash Barrier Roll Forming Machine With Touch Screen 20m/Min 3 Waves Crash Barrier Roll Forming Machine With Touch Screen

Large Image :  20m/Min 3 Waves Crash Barrier Roll Forming Machine With Touch Screen

Product Details:
Place of Origin: Wuxi, China
Brand Name: Sussman
Certification: CE, SGS, ISO
Model Number: RF-ST
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: USD69500 Per set
Packaging Details: Film and steel
Delivery Time: 60 days after deposit
Supply Ability: 10 sets/month

20m/Min 3 Waves Crash Barrier Roll Forming Machine With Touch Screen

Description
Main Motor Power: 22kw Roller Material: GCR15 Quenched 58°-62°,chromed
Material: 3-5mm Galvanized Coil Forming Speed: 5m--20m/min(not Including Punching)
Drive: Gear Box Drive Tolerance: 1mm
Control System: PLC With Touch Screen Material Of Roller: GCR15 Quenched 58°-62°,chromed
High Light:

3 Waves barrier roll forming machine

,

20m/min barrier roll forming machine

,

20m/min crash barrier roll forming machine

2-3 Waves PLC Control Bearbox Drive Guard Railway Roll Forming Machine



Technical Parameter

  • main motor power: 22kw
  • station: adopt cast iron HT50
  • Decelerating motor: BWD14-43-37KW, made in Shanghai or Changzhou
  • drive: gear box driving
  • main shaft dia: ¢120mm material: 45﹟forge steel
  • roller material: GCR15 quenched 58°-62°,chromed
  • roll station:15stations
  • roller thickness: 3-5mm
  • Timing by transducer:5m--20m/min(not including punching)
  • Transducer: Panasonic made in Japan. 380V 50HZ
  • Computer: PLC
  • Computer operating panel: touching screen


Flow Chart


Decoiling—Feeding (take the sheet to the first station)—leveling----Punching of the sheet ---- hydraulic cut to length—— roll forming----outtable




 20m/Min 3 Waves Crash Barrier Roll Forming Machine With Touch Screen 0




Machine Components

3 ton passive decoiler

1 set

Levelling device

1 set

Servo feeding device

1 set

Hydraulic punching

 2 sets

Main roll forming machine

1 set

PLC Control box

1 unit

Hydraulic station

1 unit

Hydraulic cutting

1 unit

Out tables

1 unit



Profile Drawing
20m/Min 3 Waves Crash Barrier Roll Forming Machine With Touch Screen 120m/Min 3 Waves Crash Barrier Roll Forming Machine With Touch Screen 2

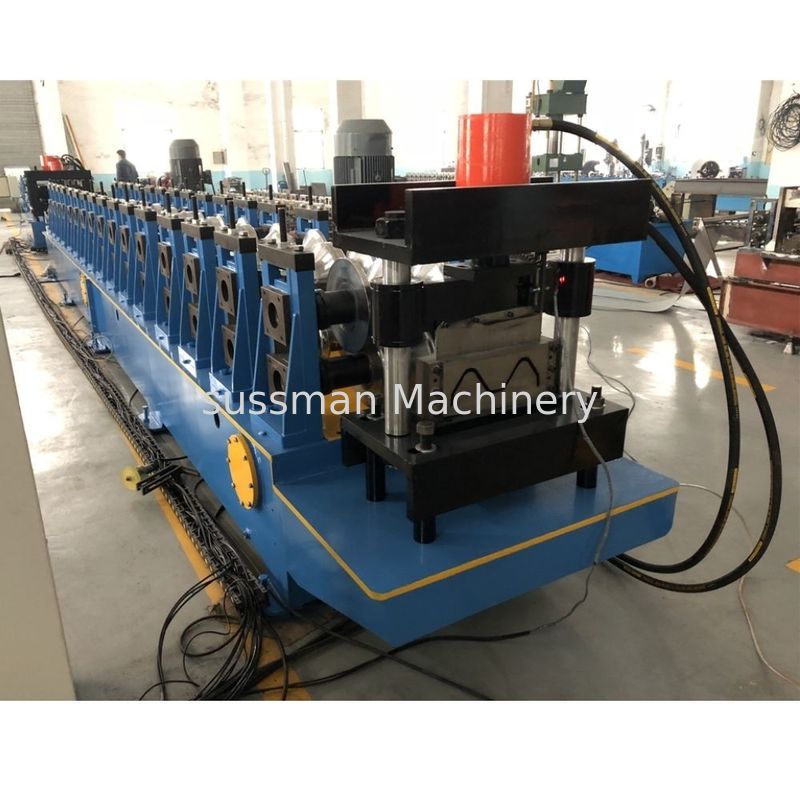

Machine Photo

20m/Min 3 Waves Crash Barrier Roll Forming Machine With Touch Screen 3

20m/Min 3 Waves Crash Barrier Roll Forming Machine With Touch Screen 4
