12M/Min 5mm Highway Guardrail Roll Forming Machine For Galvanized Coil

12M/Min 5mm  Highway Guardrail Roll Forming Machine For Galvanized Coil
12M/Min 5mm  Highway Guardrail Roll Forming Machine For Galvanized Coil
12M/Min 5mm  Highway Guardrail Roll Forming Machine For Galvanized Coil 12M/Min 5mm  Highway Guardrail Roll Forming Machine For Galvanized Coil 12M/Min 5mm  Highway Guardrail Roll Forming Machine For Galvanized Coil 12M/Min 5mm  Highway Guardrail Roll Forming Machine For Galvanized Coil 12M/Min 5mm  Highway Guardrail Roll Forming Machine For Galvanized Coil 12M/Min 5mm  Highway Guardrail Roll Forming Machine For Galvanized Coil 12M/Min 5mm  Highway Guardrail Roll Forming Machine For Galvanized Coil

Large Image :  12M/Min 5mm Highway Guardrail Roll Forming Machine For Galvanized Coil

Product Details:
Place of Origin: Wuxi, China
Brand Name: Sussman
Certification: CE, SGS, ISO
Model Number: RF-ST
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: USD69500 Per set
Packaging Details: Film and steel
Delivery Time: 60 days after deposit
Supply Ability: 10 sets/month

12M/Min 5mm Highway Guardrail Roll Forming Machine For Galvanized Coil

Description
Main Motor Power: 22kw Roller Material: GCR15 Quenched 58°-62°,chromed
Material: 3-5mm Galvanized Coil Forming Speed: 5m--20m/min(not Including Punching)
Drive: Gear Box Drive Tolerance: 1mm
Control System: PLC With Touch Screen Material Of Roller: GCR15 Quenched 58°-62°,chromed
High Light:

12M/Min guardrail roll forming machine

,

5mm guardrail roll forming machine

,

5mm guardrail roll forming equipment

3-4mm Punching High Speed Road 2 / 3 Waves Guard Railway Roll Forming Machine



Technical Parameter



The overall production line consists of decoiler, leveling device, servo following, punching press system, forming system , hydraulic cutting system , electric control system , out tables, etc.
Model number
Guard railway Roll Forming Machine
Material Thickness
1.5-3.0mm
Product speed
0-12meter / per minute
Roller Stations
About 15 stations
Roller Material
Gcr15 Steel with quenching
Shaft Material
45# Advanced Steel (Diameter: 76mm), thermal refining
Material Of Cutting
CR12Mov with quench treatment
Electronic control
PLC control with touch screen
Weight
About 15 tons


Flow Chart


Decoiling—Feeding (take the sheet to the first station)—leveling----Punching of the sheet ---- hydraulic cut to length—— roll forming----outtable




 12M/Min 5mm  Highway Guardrail Roll Forming Machine For Galvanized Coil 0




Machine Components

3 ton passive decoiler

1 set

Levelling device

1 set

Servo feeding device

1 set

Hydraulic punching

 2 sets

Main roll forming machine

1 set

PLC Control box

1 unit

Hydraulic station

1 unit

Hydraulic cutting

1 unit

Out tables

1 unit



Profile Drawing
12M/Min 5mm  Highway Guardrail Roll Forming Machine For Galvanized Coil 112M/Min 5mm  Highway Guardrail Roll Forming Machine For Galvanized Coil 2

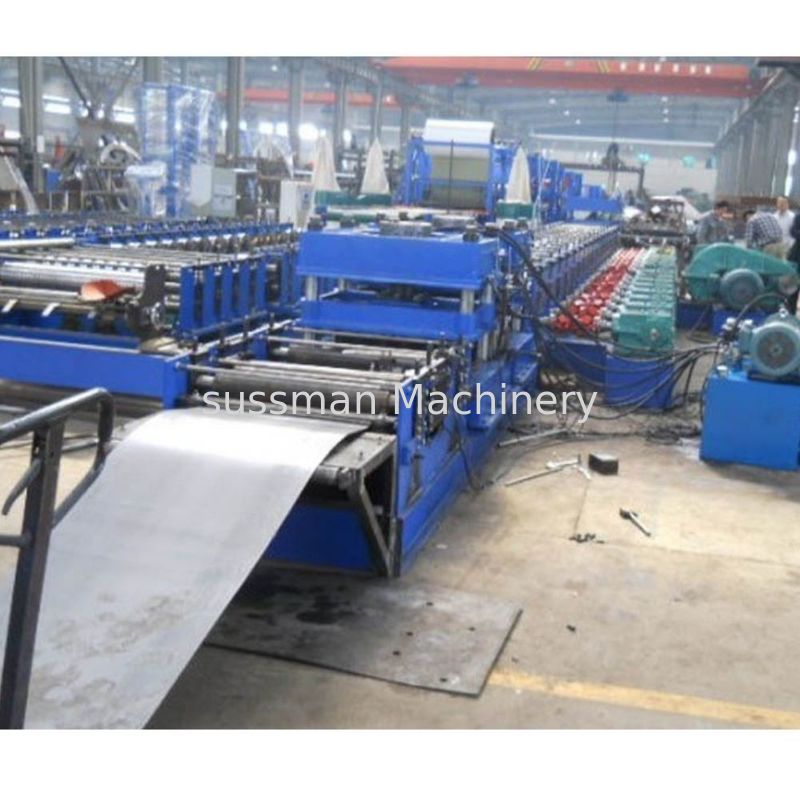

Machine Photo

12M/Min 5mm  Highway Guardrail Roll Forming Machine For Galvanized Coil 3

12M/Min 5mm  Highway Guardrail Roll Forming Machine For Galvanized Coil 4
