7.5KW 12m/Min Metal Sheet Rain Gutter Downspout Forming Machine
  • 7.5KW 12m/Min Metal Sheet Rain Gutter Downspout Forming Machine
  • 7.5KW 12m/Min Metal Sheet Rain Gutter Downspout Forming Machine
  • 7.5KW 12m/Min Metal Sheet Rain Gutter Downspout Forming Machine
  • 7.5KW 12m/Min Metal Sheet Rain Gutter Downspout Forming Machine
  • 7.5KW 12m/Min Metal Sheet Rain Gutter Downspout Forming Machine

7.5KW 12m/Min Metal Sheet Rain Gutter Downspout Forming Machine

Place of Origin Wuxi, China
Brand Name Sussman
Certification CE, SGS, ISO
Model Number SM-RG
Product Details
Forming Thickness:
0.3-0.8mm
Forming Speed:
10-15m/min
Forming Stations:
16 Rollers
Main Motor Power:
7.5Kw
Raw Material:
Galvanized Steel Sheet
Roller Material:
45#forge Steel, Coated With Chrome
Shaft Diameter:
70mm, Material Is 45# Forge Steel
Weight:
6 Tons
High Light:

7.5KW downspout forming machine

,

Metal Sheet downspout forming machine

,

Rain Gutter downspout machine

Payment & Shipping Terms
Minimum Order Quantity
1 set
Price
negotiable
Packaging Details
Film and steel
Delivery Time
60 days after deposit
Supply Ability
10 sets/month
Product Description

7.5KW 12m/min Metal Sheet Rain Gutter Downspout Roll Forming Machine


1. Technical Parameter

Item NO



Description



Offered specification

1.0 Roll forming machine
1.1 Rolling speed 0-10m/min(not include cutting time)
1.2 Rolling thickness 0.3-0.8mm
1.3 Raw material Galvanized steel coils G550
1.6 dimension 5500×700×1000(mm)
1.7 Effective width 70mm
1.8 Roller stations About 19 stations
1.9 Roller material 45#forge steel, coated with chrome
1.10 Shaft diameter Φ70mm,material is 45# forge steel
1.11 Transmission By chain 1 inch
1.12 Material of chain 45# forged steel with frequency quenching, 12A
1.14 Material of cutting Cr12Mov with quench HRC58-62°
1.15 Tolerance 6m+-0.5mm
1.16 Frame H type steel
1.17 Voltage 380v, 50hz, 3phases
1.18 Main motor power 7.5 KW


2. Flow Chart

Uncoiling – Infeed Guiding– Roll forming – Hydraulic cutting – Run-out table
 7.5KW 12m/Min Metal Sheet Rain Gutter Downspout Forming Machine 0

7.5KW 12m/Min Metal Sheet Rain Gutter Downspout Forming Machine 1



3. Machine Components

The portable gutter roll forming machine comprised of 3T manual uncoiler, infeed guiding, roll forming machine, cutting equipment, hydraulic system, electrical controlling system, output table and portable device.




4. Gutter Machine Description


Gutter roll forming machine is suitable for companies who work on rainwater goods system. Machineable thickness of gutter could be 0.4mm-0.6mm or as you request with raw material:Aluminum, Galvanized steel, Painted steel, Galvalume and Cooper etc. We could make machine solution for Quad Gutter, Quarter Round Gutter, C-Square Gutter, Hi-Square Gutter, Lo-Square Gutter, VC Gutter, VF Gutter, VFC Gutter, VFM Gutter, VT Gutter, OG Gutter, OG Big One Gutter, S Gutter, Half Round Gutter, Smoothline Gutter, Round Flo Gutter or according to your profile drawing.

We make different solutions according to customers’ drawing, tolerance and budget, offering professional one-to-one service, adaptable for your every need. Whichever line you choose, the quality of Linbay Machinery will ensure you obtain perfectly functional profiles.

In rainwater goods system, we are able to manufacture more machines like round downspout pipe roll forming machine, square downspout pipe roll forming machine, separate elbow machine etc.

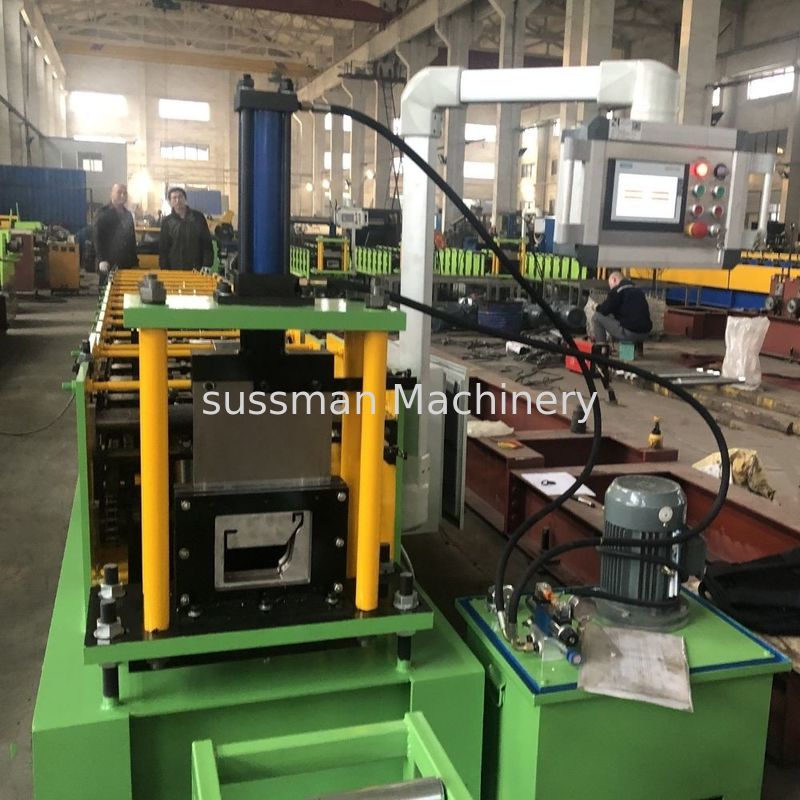

5. Gutter Machine Photo


 7.5KW 12m/Min Metal Sheet Rain Gutter Downspout Forming Machine 2

7.5KW 12m/Min Metal Sheet Rain Gutter Downspout Forming Machine 3



The whole producing plant has the CE certificate approved.

We offer a warranty period of 1year for all of our machines.

Our after-sales services will include factory process designing, equipment Installation coaching, test running the machines, and training of your operation personnel.
