Home > products > Roll Forming Equipment >

Automatic 6 Sides Warehouse Upright Storage Shelf Beam Welding Machine

Place of Origin	Wuxi, China
Brand Name	Sussman Machinery
Certification	CE
Model Number	SS-WT

Product Details

Welding Edge:

6 Sides Of Each End Of The Beam

Length Of The Beam:

1200-4000mm

Connector Thickness:

3mm

Diameter Of The Welding Wire:

0.8-1.0mm

Main Motor:

2kwX2 Stepping Motor

Turn Over System:

By Cylinder, Gear And Rack

Highlight:

Automatic Shelf Beam Welding Machine

Upright 6 Sides Beam Welding Machine

Storage Shelf H Beam Welding Machine

Payment & Shipping Terms

Minimum Order Quantity

1 set

Price

negotiable

Packaging Details

Plastic film and wooden box

Delivery Time

75DAYS

Payment Terms

Western Union, D/A, L/C, D/P, T/T

Supply Ability

10 SETS PER MONTH

Product Description

Automatic 6 Sides Warehouse Upright Storage Shelf Beam Welding Machine

This model is suitable for welding the beams which requirements to welding four lines of each end . The four welders operate simultaneously to complete the work at once,it is high efficiency.We adopte the high-quality components, the machine TEMPhas a very long life.

Specifications:

1	Welding edge	3 sides of each end of the beam, total 2 ends
2	Speed	3 pieces in 2 min
2	Length of the beam	1200-4000mm
3	Connector thickness	3mm
4	Diameter of the welding wire	0.8-1.0mm
5	Model of the welding unit	TC-315F IGBT (Chinese brand)
6	Number of welding unit	6 sets
7	Main motor	2kwX2 stepping motor
8	Voltage	415v, 50HZ, 3 phase
9	Clamping	By pneumatic
10	Turn over system	By cylinder, gear and rack
11	Horizontal push to adjust the length	By liner guide way and fix by manual
12	Size of the machine	About 5.2mX1mX1.9m
13	Machine weight	About 1200kgs
14	Packing	Wooden box packing
15	Delivery time	50 days

Brand list:

1	PLC	Delta
2	Touch screen	delta
3	Air cylinder	AirTac
4	Relay and switch	Schneider

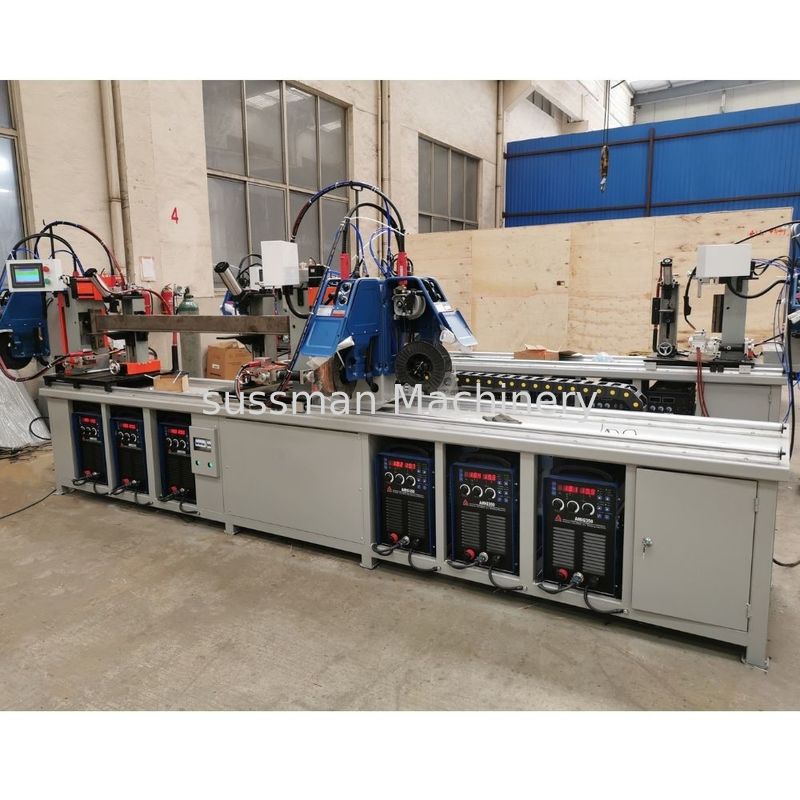

Machine Pictures:

Automatic 6 Sides Warehouse Upright Storage Shelf Beam Welding Machine 0

Main Features

1) Simple structure in linear type ,easy in installation and maintation.

2) Adopting advanced world famous brand components in pneumatic parts ,electric parts and operation parts.

3) The 4 guns operate at the same time .It is high welding efficiency and good effect.
