Servo Following Cutting Embossing 20M/Min Deck Floor Roll Forming Machine

Place of Origin	China
Brand Name	SUSSMAN
Certification	SGS,CE ,ISO9001
Model Number	SS-FD

Product Details

Name:

Galvanized Steel Floor Deck Roll Forming Machine

Material:

Galvanized Steel

Material Thickness:

0.8-1.2mm

Forming Stations:

28 Stations

Roller Material:

Gcr15, Quench HRC58-62 Plated Chrome

Dirve System:

Chain Drive

Highlight:

Embossing floor deck roll forming machine

20M/min floor deck roll forming machine

chaindrive metal deck roll forming machine

Payment & Shipping Terms

Minimum Order Quantity

1 set

Price

negotiable

Packaging Details

Standard Packing with film coated and steel wire fixed

Delivery Time

60-90 working days

Payment Terms

L/C, T/T,

Supply Ability

10 sets per month

Product Description

Servo Following Cutting Embossing 20M/min Deck Floor Roll Forming Machine

Floor Deck Making Machine Technical Parameter

Item NO	Description	UnitType	RF-DF
1	Steel Thickness	mm	0.8-1.5mm
2	Forming Speed	m/min	0-20m/min
3	Roller stands	stand	28-30
4	Roller Material		Gcr15 chromed HRC55-60
5	Shaft diameter		Ф90mm
6	Main Motor Power	kw	11*2kw
7	Hydraulic cutting Power	kw	5.5
8	Hydraulic pressure	Mpa	12
9	Power Supply		220V, 60HZ,3 phase
10	Tolerance	mm	1.5
11	Material of cutting		Cr12mov
12	Control system		PLC with touch screen
13	DRIVE system	Chain	1.6 inches

Machine List

No	Name	quantity
1	5 ton passive de-coiler	1 set
2	Main roll forming machine	1 set
3	PLC system	1 unit
4	Hydraulic station	1 unit
5	Out tables	2 units

Working Flow of Machine

Uncoiling—Feeding&Leveling--Roll forming—Cutting—Products collecting

Servo Following Cutting Embossing 20M/Min Deck Floor Roll Forming Machine 0

Standard Profile Drawing of product

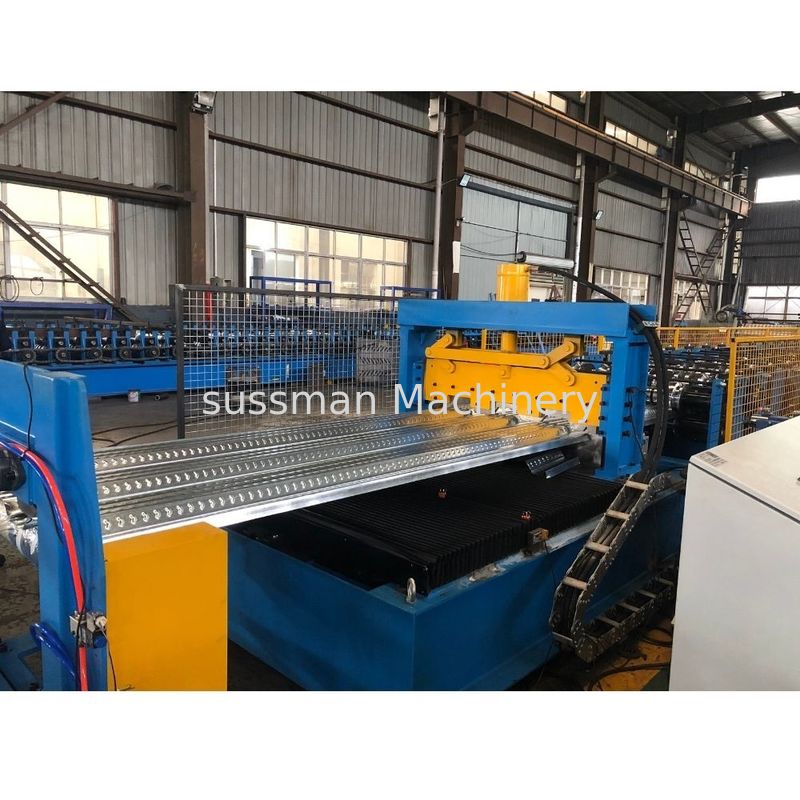

Machine Photo

Servo Following Cutting Embossing 20M/Min Deck Floor Roll Forming Machine 2

Servo Following Cutting Embossing 20M/Min Deck Floor Roll Forming Machine 3

Servo Following Cutting Embossing 20M/Min Deck Floor Roll Forming Machine 4

Servo Following Cutting Embossing 20M/Min Deck Floor Roll Forming Machine 5

Loading Pictures

Servo Following Cutting Embossing 20M/Min Deck Floor Roll Forming Machine 6

Servo Following Cutting Embossing 20M/Min Deck Floor Roll Forming Machine 7

Servo Following Cutting Embossing 20M/Min Deck Floor Roll Forming Machine 8

Servo Following Cutting Embossing 20M/Min Deck Floor Roll Forming Machine 9
