1.5mm Thickness Embossing Steel Deck Roll Forming Machine
  • 1.5mm Thickness Embossing Steel Deck Roll Forming Machine
  • 1.5mm Thickness Embossing Steel Deck Roll Forming Machine
  • 1.5mm Thickness Embossing Steel Deck Roll Forming Machine
  • 1.5mm Thickness Embossing Steel Deck Roll Forming Machine
  • 1.5mm Thickness Embossing Steel Deck Roll Forming Machine
  • 1.5mm Thickness Embossing Steel Deck Roll Forming Machine
1.5mm Thickness Embossing Steel Deck Roll Forming Machine

1.5mm Thickness Embossing Steel Deck Roll Forming Machine

Place of Origin China
Brand Name SUSSMAN
Certification SGS,CE ,ISO9001
Model Number SS-FD
Product Details
Material:
Galvanized Steel
Material Thickness:
0.8-1.5mm
Forming Stations:
28-30 Stations
Roller Material:
Gcr15, Quench HRC58-62 Plated Chrome
Dirve System:
Chain Drive
Forming Speed:
0-20m/min
High Light:

Embossing steel deck roll forming machine

,

1.5mm steel deck roll forming machine

,

Embossing metal deck forming machine

Payment & Shipping Terms
Minimum Order Quantity
1 set
Price
negotiable
Packaging Details
Standard Packing with film coated and steel wire fixed
Delivery Time
60-90 working days
Payment Terms
L/C, T/T,
Supply Ability
10 sets per month
Product Description

0.8mm-1.5mm Thickness Embossing Deck Floor Roll Forming Machine with 15 tons Hydraulic Decoiler​





Floor Deck Making Machine Technical Parameter





Item NO

Description
Unit Type
RF-DF
1
Steel Thickness
mm
0.75 -1.5mm
2
Forming Speed
m/min
0-20m/min
3
Roller stands
stand
28-30
4
Roller Material

Gcr15 chromed
HRC55-60
5
Shaft diameter

Ф90mm
6
Main Motor Power
kw
11*2kw
7
Hydraulic cutting Power
kw
5.5
8
Hydraulic pressure
Mpa
12
9
Power Supply

220V, 60HZ,3 phase
10
Tolerance
mm
1.5
11
Material of cutting

Cr12mov
12
Control system

PLC with touch screen
13
DRIVE system
Chain
1.6 inches



 Machine List



No

Name

quantity

1

15 ton Hydraulic De-coiler with Coil Car

1 set

2

Main roll forming machine

1 set

3

PLC system

1 unit

4

Hydraulic station

1 unit

5

12 Meters Auto Stacker

1 unit





Working Flow of Machine



Uncoiling—Feeding&Leveling--Roll forming—Cutting—Products collecting








 Standard Profile Drawing of product 1.5mm Thickness Embossing Steel Deck Roll Forming Machine 1

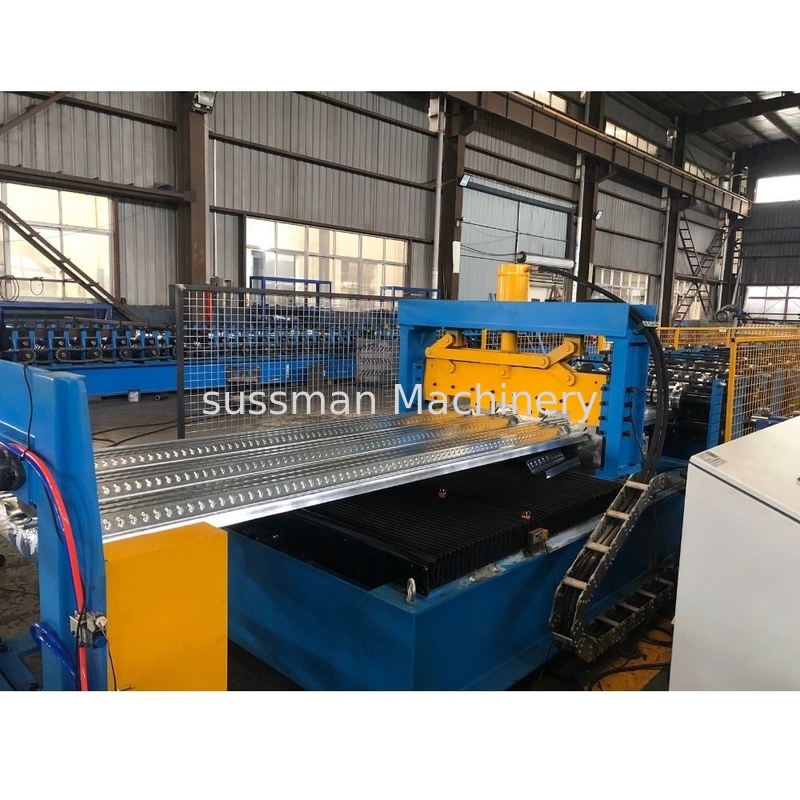

Machine Photo



1.5mm Thickness Embossing Steel Deck Roll Forming Machine 2

1.5mm Thickness Embossing Steel Deck Roll Forming Machine 3





Application

1.5mm Thickness Embossing Steel Deck Roll Forming Machine 4



1.5mm Thickness Embossing Steel Deck Roll Forming Machine 5



Loading Pictures

1.5mm Thickness Embossing Steel Deck Roll Forming Machine 6

1.5mm Thickness Embossing Steel Deck Roll Forming Machine 7

1.5mm Thickness Embossing Steel Deck Roll Forming Machine 8
