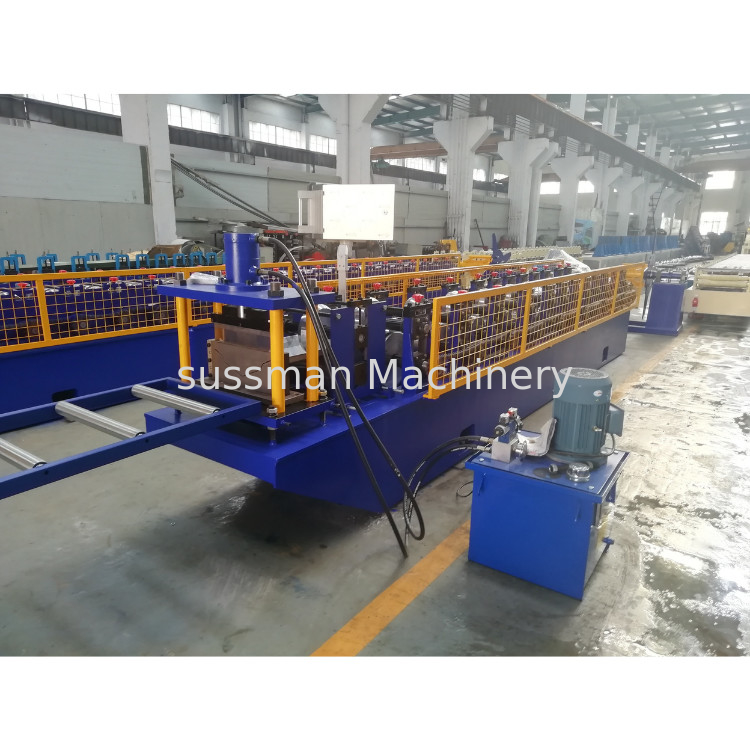

Automatic Customized Rain Spout Gutter Roll Forming Machine Aluminium Gutter Profile Making Machine
1. Technical Parameter
| Gutter roll forming machine | |||
| No. | Item | Specification | Optional |
| 1 | Suitable material | Type:Galvanized Coil, PPGI, Carbon steel Coil | |
| Thickness(mm):0.3-0.8 | |||
| Yield strength: 250 - 550MPa | |||
| Tensil stress( Mpa):G350Mpa-G550Mpa | |||
| 2 | Nominal forming speed(m/min) | 8-10 | Or according to your requirement |
| 3 | Forming station | 16 | According to your profile |
| 4 | Decoiler | Manual decoiler | Hydraulic decoiler or double head decoiler |
| 5 | Main machine motor | China famous brand | Siemens |
| 6 | PLC brand | Delta | Siemens/Panasonic |
| 7 | Inverter brand | Yaskawa | |
| 8 | Driving system | Chain drive | Gearbox drive |
| 9 | Rollers’ materail | Steel #45 | GCr15 |
| 10 | Station structure | Wall plate |
Forged Iron station
Or Wall panel structure
|
| 11 | Punching system | No | Hydraulic punching station or Punching press |
| 12 | Cutting system | Post-cutting | Pre-cutting |
| 13 | Power supply requirement | 380V 60Hz | Or according to your requirement |
| 14 | Machine color | Industrial blue | Or according to your requirements |
2. Flow Chart
The portable gutter roll forming machine comprised of 3T manual uncoiler, infeed guiding, roll forming machine, cutting equipment, hydraulic system, electrical controlling system, output table and portable device.
3. Gutter profile drawing
4. Gutter Machine Description
1) 3 Ton Mannual Decoiler:one set
Mannual Decoiler steel coil inner bore shrinkage and stop
Max Feeding Width:300mm
Coil ID Range:508±30mm
Outside Diameter:1200mm
2)Hydraulic cutting device
Leveling device will make the product more beautiful
Hydraulic motor: 3KW ;Cutting pressure: 0-16Mpa Cutting tool material: Cr12Mov(= SKD11 with at least one million times of cutting life), Heat treatment to HRC58-62 degree The cutting power is provided by the main engine hydraulic station
3)PLC Control System
Control the quality and cutting length automatically input the production data(Production batch,pcs, length,etc.)on the touch screen,
It can finish the production automatically.
Combined with:
PLC,Touch screen,Inverter ,Encoder,etc
4) 4Meters Out put table
Un-powered,Two units,with rollers on it for easy movement
