Downspout Roll Forming Machine
>
|
|
| Place of Origin | Wuxi, China |
| Brand Name | Sussman |
| Certification | CE, SGS, ISO |
| Model Number | SM-RG |

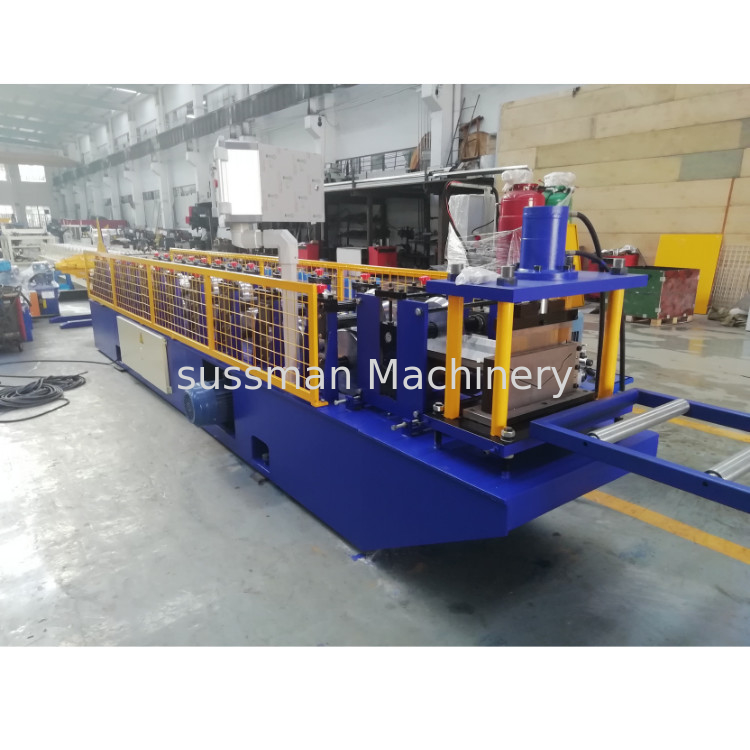

Fully Automatic Customized 0.4-0.8mm Ppfi Aluminium Roof Gutter Profile Making Machine
1. Technical Parameter
| Suitable Material | Material | GI, PPGI, PPGL |
| Width | 1000mm | |
| Thickness | 0.3-0.8mm | |
| Material of rollers | High grade 45# forged steel, surface hard chromium plating | |
| Rows of rollers | 11 stations | |
| Material of shafts | High grade 45# forged steel | |
| Diameter of shafts | 70mm | |
| Material of blade | Cr12 Heat Treatment | |
| Cutting Mode | Hydraulic Guide Column | |
| Speed | 20-25m/min | |
| Side plate thickness | 16 mm | |
| Chain size | 1 inch | |
| Total power | 4 kw | |
| Voltage | 380V 50HZ 3Phase | |
| Appearance size (About) | 5800mm*1500mm*1500mm | |
| Weight(About) | 3 tons | |
| Electronic control system | PLC + Touch Screen | |
2. Flow Chart
The portable gutter roll forming machine comprised of 3T manual uncoiler, infeed guiding, roll forming machine, cutting equipment, hydraulic system, electrical controlling system, output table and portable device.
3. Gutter profile drawing
4. Gutter Machine Description
1) 3 Ton Mannual Decoiler:one set
Mannual Decoiler steel coil inner bore shrinkage and stop
Max Feeding Width:300mm
Coil ID Range:508±30mm
Outside Diameter:1200mm
2)Hydraulic cutting device
Leveling device will make the product more beautiful
Hydraulic motor: 3KW ;Cutting pressure: 0-16Mpa Cutting tool material: Cr12Mov(= SKD11 with at least one million times of cutting life), Heat treatment to HRC58-62 degree The cutting power is provided by the main engine hydraulic station
3)PLC Control System
Control the quality and cutting length automatically input the production data(Production batch,pcs, length,etc.)on the touch screen,
It can finish the production automatically.
Combined with:
PLC,Touch screen,Inverter ,Encoder,etc
4) 4Meters Out put table
Un-powered,Two units,with rollers on it for easy movement
