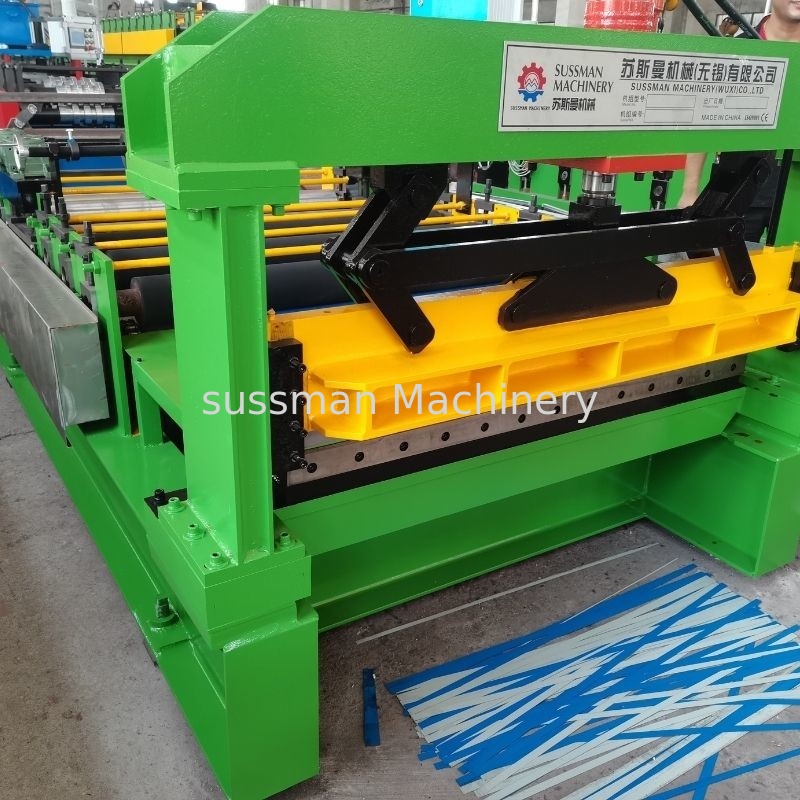

Hydraulic Steel Coil Cut To Length Machine 1250mm Automatic
  • Hydraulic Steel Coil Cut To Length Machine 1250mm Automatic
  • Hydraulic Steel Coil Cut To Length Machine 1250mm Automatic
  • Hydraulic Steel Coil Cut To Length Machine 1250mm Automatic
  • Hydraulic Steel Coil Cut To Length Machine 1250mm Automatic

Hydraulic Steel Coil Cut To Length Machine 1250mm Automatic

Place of Origin Wuxi, China
Brand Name Sussman
Certification CE, SGS, ISO
Model Number RF-ST
Product Details
Material Thickness:
0.2-1.0mm Cr Gi Ss Steel Coil
Coil Palte Width:
1250mm
Slitting Speed:
About 0-20m/min
Coil Weight:
5000KGS
Power:
7.5KW
Dimension (L*W*H):
About 4000*1800*1200MM
High Light:

Automatic Coil Cut To Length Machine

,

7.5KW Coil Cut To Length Machine

,

Coil Cut To Length Machine 20m/min

Payment & Shipping Terms
Minimum Order Quantity
1 set
Price
negotiable
Packaging Details
Film and steel
Delivery Time
60 days after deposit
Supply Ability
10 sets/month
Product Description

1250mm Width Automatic Hydraulic Steel Coil Cut To Length Machine,Steel Small Cut To Length Line

1. Technical Parameter



Coil weight from 200 kg (440 Lbs) to 5 tons (11023 Lbs)
Strip size from 200 mm (8”) to 2000 mm (80‘’)
Material thickness from 0.2 mm up to 1.0 mm



No

Name

Unit

Parameter

1

Materials



CRS, GI, SS, Aluminum

2

Thickness

mm

0.2-1.0

3

Width

mm

1250

4

Coil I.D.

mm

Φ508

5

Coil weight

Kgs

5000

6

Max speed

m/min

0-20

7

Cutting precision

Mm

+-1.0 mm/two meters

8

Leveling roll

piece

Upper 4 / Lower 5

9

Feeding roll

piece

Upper 2/ Lower 2

10

Diameter of leveling rollers

mm

Φ65mm

11

Distance of leveling rollers

mm

70mm

12

Material of leveling roller



GCr15

13

Power



380V/50HZ/3PH

14

Size of the whole line(about)

m

About 15m(L)X5m(W)

15

The direction of whole line



Depends on Customers' requirement

16

The color



customized



2. Cut to length line Work Process:



How does coil cut-to-length line work?
Coil cut-to-length lines work by taking metal coils or rolls from a metal mill and turning them into flat metal sheets of your specifications. These rolls are fed into the coil cut-to-length line which unspools, flattens, cuts, and then stacks them as flat metal sheets. Coil cut-to-length lines are an effective tool for producing sheet metal for your business.We offer light, medium, and heavy cut-to-length lines, each suited for your specific workloads.






Hydraulic Steel Coil Cut To Length Machine 1250mm Automatic 0


3. Cut to length line machine description


The Cut-To-Length Line including uncoil to support the coil material, levelling it, and then cut it to the required length and stack it.

The end product produced by a Cut-To-Length Line is a flat sheet of material cut to a very precise length tolerance.

We can customize the Cut-To-Length line according to your requirement, there are several variables you should provide: the thickness of material, the type of material, length of the sheets to be produced, as well as annual volume to be processed all influence the line configuration and capabilities required for a successful installation.


Hydraulic Steel Coil Cut To Length Machine 1250mm Automatic 1



4. Composed Device



1. Manual decoiler

Hydraulic Steel Coil Cut To Length Machine 1250mm Automatic 2



2. Hydraulic cutting

Hydraulic Steel Coil Cut To Length Machine 1250mm Automatic 3





3. Out put table

Hydraulic Steel Coil Cut To Length Machine 1250mm Automatic 4



 5.Sussman Machinery
Sussman Machinery(Wuxi) Co., Ltd. is specialized in building materials of light steel structure. Since the factory founded 20 years before, it's always design and produce various type profile of roll forming machine. The main products of factory is light gauge framing machine, pre-painted steel forming machine, Glazed Tile forming machine, Automatical C/Z Purlin forming machine, Floor Deck forming machine, Guardrail forming machine, Down Pipe forming machine, The whole carriage plate for car beam unit , Steel storage unit, etc. Totally it has 100 types in 20 serious. The products are widely used in warehouse, factory buildings, supermarket, Nursing homes, villas, residential, greenhouse and other construction projects.

Our factory can meet the construction enterprises, automobile industry, iron and steel production enterprises's growing demand. Company building area is over 5000 square meters, it has a highly efficient design, manufacturing, sales of high-quality team. The machine is coving in 30 provinces of China and worldwile.

The company always adhere to the "quality first, integrity first, service fast, continuous innovation" concept. Adoption of new technologies, development of new products, the application of advanced scientific management, and strive to make product quality better and better. The company sincerely cooperated with the steel, car, the city of road&bridge construction industry field. The roll forming machine can be designed according to customer's profiles. Thanks for the supporting and trust from the domestic and foreign customers. Our success is refine on and try to be better and better.



Hydraulic Steel Coil Cut To Length Machine 1250mm Automatic 5
